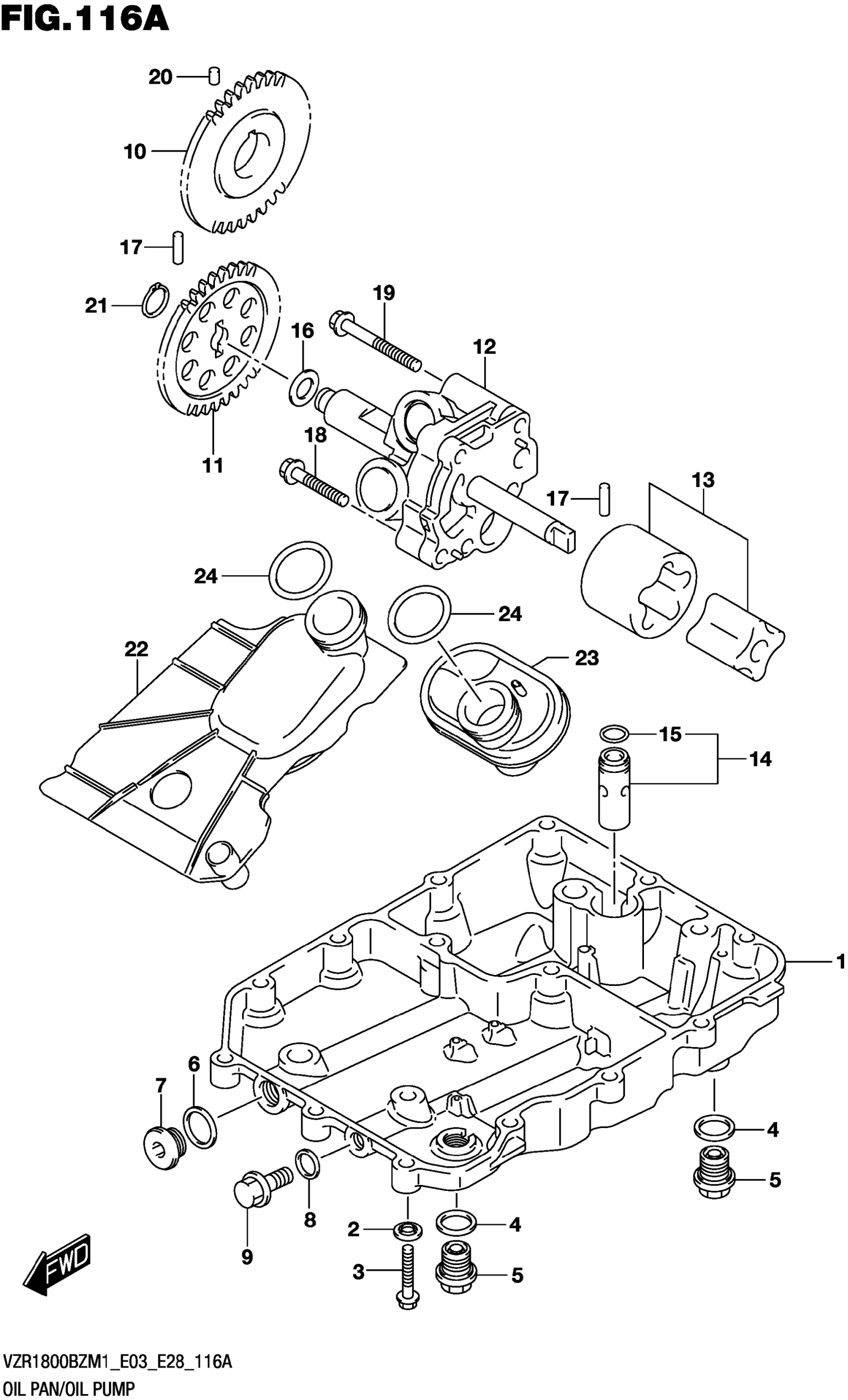

Suzuki VZR1800BZM1 (2021) OIL PAN/OIL PUMP Diagram

#

Description

Price

1

PAN,OIL

11511-48G01-000

Unavailable

2

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

3

BOLT

01547-0630A-000

Unavailable

4

.GASKET (13.8X18.8X4.8)

09168-14002-000

Unavailable

5

PLUG (14X20)

09247-14036-000

Unavailable

6

GASKET (16X22X2)

09168-16002-000

Unavailable

7

PLUG (16X8)

09248-16012-000

Unavailable

8

GASKET (10X14X3.6)

09168-10002-000

Unavailable

9

PLUG (10X12)

09247-10008-000

Unavailable

10

GEAR,OIL PUMP DRIVE (NT:40)

16321-48G00-000

Unavailable

11

GEAR,OIL PUMP DRIVEN (NT:36)

16331-48G00-000

Unavailable

12

PUMP ASSY,ENGINE OIL

16400-48G01-000

Unavailable

13

ROTOR SET,OIL PUMP

16410-48G00-000

Unavailable

14

VALVE ASSY,OIL RELIEF 7K (7K)

16440-24F00-000

Unavailable

15

.O-RING (D:1.9,ID:13)

09280-13004-000

Unavailable

16

SHIM (10X18X0.5)

09181-10158-000

Unavailable

17

PIN (4X15.8)

09261-04009-000

Unavailable

18

BOLT

01547-0635A-000

Unavailable

19

BOLT

01547-0655A-000

Unavailable

20

PIN

04221-04069-000

Unavailable

21

CIRCLIP

08331-31109-000

Unavailable

22

STRAINER,ENGINE OIL FR

16530-48G01-000

Unavailable

23

STRAINER,ENG OIL RR

16520-48G01-000

Unavailable

24

.O RING (D:3.7,ID:21.7)

09280-22016-000

Unavailable
