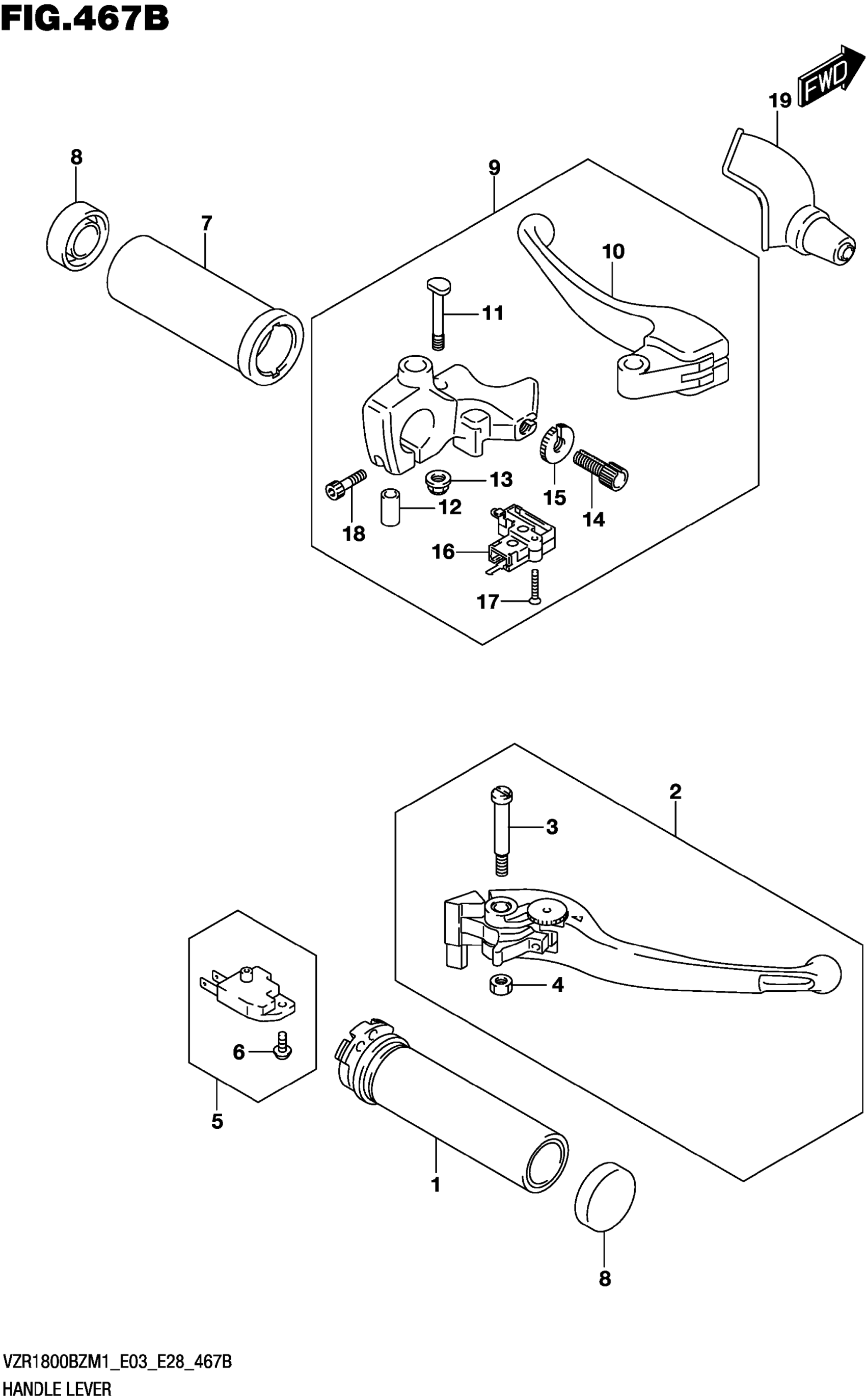

Suzuki VZR1800BZM1 (2021) HANDLE LEVER Diagram

#

Description

Price

1

GRIP,THROTTLE

57110-26D11-000

Unavailable

2

LEVER ASSY,BRAKE

57300-48G20-000

Unavailable

3

.BOLT,PIVOT

57431-48G00-000

Unavailable

4

.NUT

08319-2106A-000

Unavailable

5

SWITCH ASSY,FR BRAKE

57460-14J02-000

Unavailable

6

.SCREW,WITH WASHER (4X12)

57465-17C00-000

Unavailable

7

GRIP,L

57210-26D01-000

Unavailable

8

CAP,GRIP,END

57216-38A00-000

Unavailable

9

LEVER ASSY,CLUTCH

57500-48G33-000

Unavailable

10

.LEVER,CLUTCH

57621-48G20-000

Unavailable

11

.BOLT,LEVER PIVOT

57531-48G00-000

Unavailable

12

.COLLAR

57623-48G00-000

Unavailable

13

NUT

08319-3106A-000

Unavailable

14

.ADJUSTER,WIRE

57441-08C01-000

Unavailable

15

.NUT,LOCK

57442-08C01-000

Unavailable

16

.SWITCH ASSY,CLUTCH

57560-05A10-000

Unavailable

17

.SCREW

57562-41G01-000

Unavailable

18

.BOLT

07130-06207-000

Unavailable

19

COVER,CLUTCH LEVER

57541-48G11-000

Unavailable
