GEAR SHIFTING

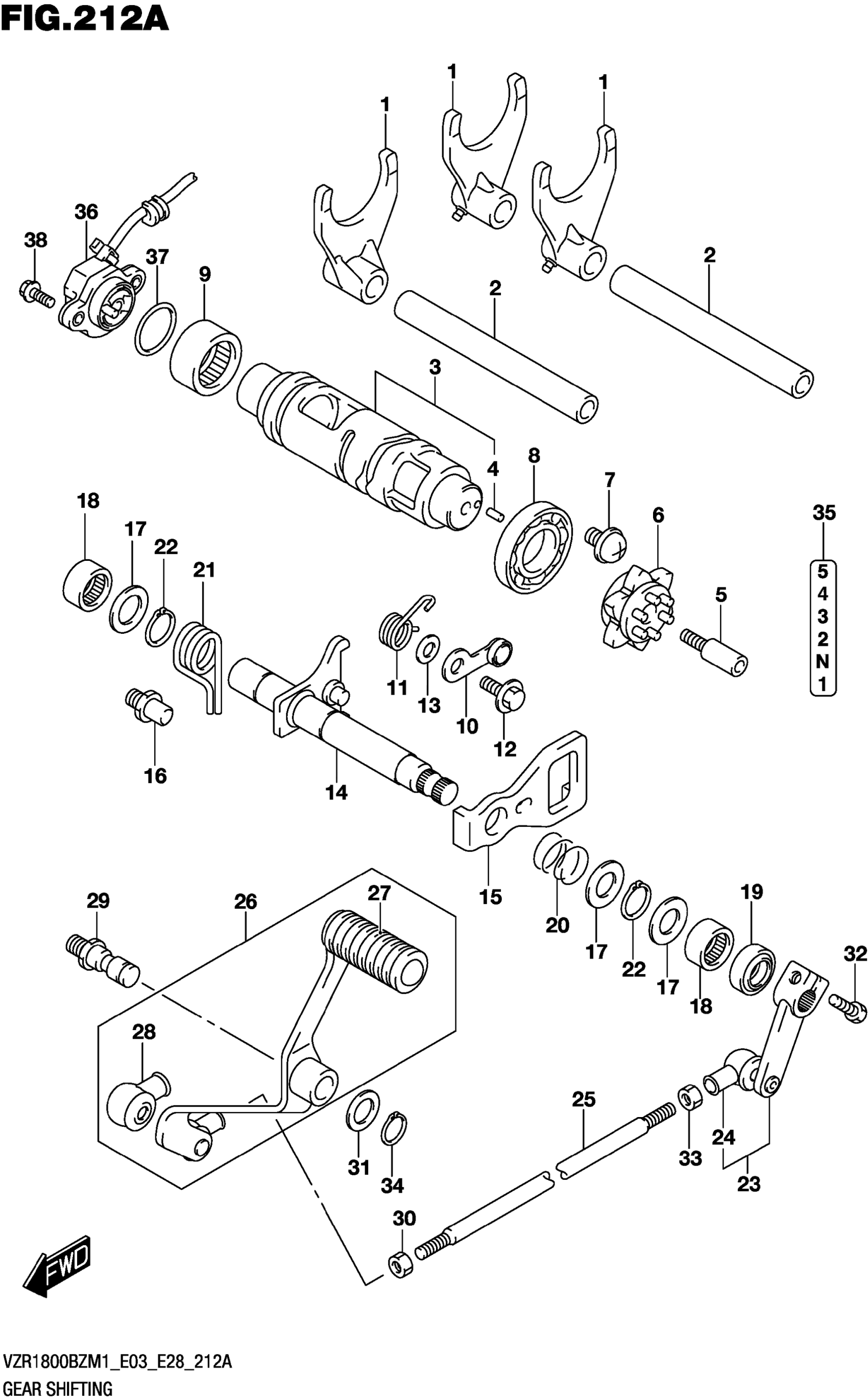

Suzuki VZR1800BZM1 (2021) GEAR SHIFTING Diagram
#
1
FORK,GEAR SHIFT NO.1
25211-35F11-000
Unavailable
2
SHAFT,GEAR SHIFT FORK (10X14X | 39)
25411-48G00-000
Unavailable
3
CAM,GEAR SHIFT
25310-48G00-000
Unavailable
4
.PIN
04221-04089-000
Unavailable
5
BOLT,GEAR SHIFT CAM PLATE
25312-42F01-000
Unavailable
6
PLATE,GEAR SHIFT CAM
25381-13E00-000
Unavailable
7
SCREW (6X12)
09136-06147-000
Unavailable
8
BEARING (25X47X8)
09262-25006-000
Unavailable
9
BEARING (25X32X12)
09263-25018-000
Unavailable
10
STOPPER,SHIFT CAM
25350-06G00-000
Unavailable
11
SPRING,GEAR SHIFT CAM STOPPER
25355-38F00-000
Unavailable
12
BOLT (6X14.3)
09111-06041-000
Unavailable
13
WASHER
08211-06141-000
Unavailable
14
SHAFT,GEAR SHIFT
25510-48G00-000
Unavailable
15
PLATE,GEAR SHIFT,CAM DRIVE
25512-13E20-000
Unavailable
16
STOPPER,GEAR SHIFT ARM
25671-01011-000
Unavailable
17
SHIM (14X22X1.0)
09181-14167-000
Unavailable
18
BEARING (14X20X12)
09263-14027-000
Unavailable
19
OIL SEAL (14X22X6.0)
09283-14005-000
Unavailable
20
SPRING
09440-17009-000
Unavailable
21
SPRING
09444-20001-000
Unavailable
22
CIRCLIP
08331-3114A-000
Unavailable
23
ARM,GEAR SHIFT LINK
25520-48G01-000
Unavailable
24
.COVER,DUST
25526-47001-000
Unavailable
25
ROD,GEAR SHIFT LINK
25525-48G00-000
Unavailable
26
LEVER ASSY,GEAR SHIFT
25600-48G11-000
Unavailable
27
.RUBBER,GEAR SHIFT PEDAL
25652-38B00-000
Unavailable
28
.COVER,DUST
25526-47001-000
Unavailable
29
SHAFT,GEAR SHIFT LEVER
25617-03F10-000
Unavailable
30
NUT
09140-06025-000
Unavailable
31
WASHER (12.5X20X1.0)
09160-12011-000
Unavailable
32
BOLT
01547-0620A-000
Unavailable
33
NUT
08310-0006A-000
Unavailable
34
CIRCLIP
08331-3112A-000
Unavailable
35
LABEL,GEAR SHIFT
68392-38B00-000
Unavailable
36
SENSOR ASSY,GEAR POSITION
37730-48G02-000
Unavailable
37
O-RING (D:2.4,ID:26.2)
09280-26005-000
Unavailable
38
BOLT (5X16)
09106-05023-000
Unavailable
