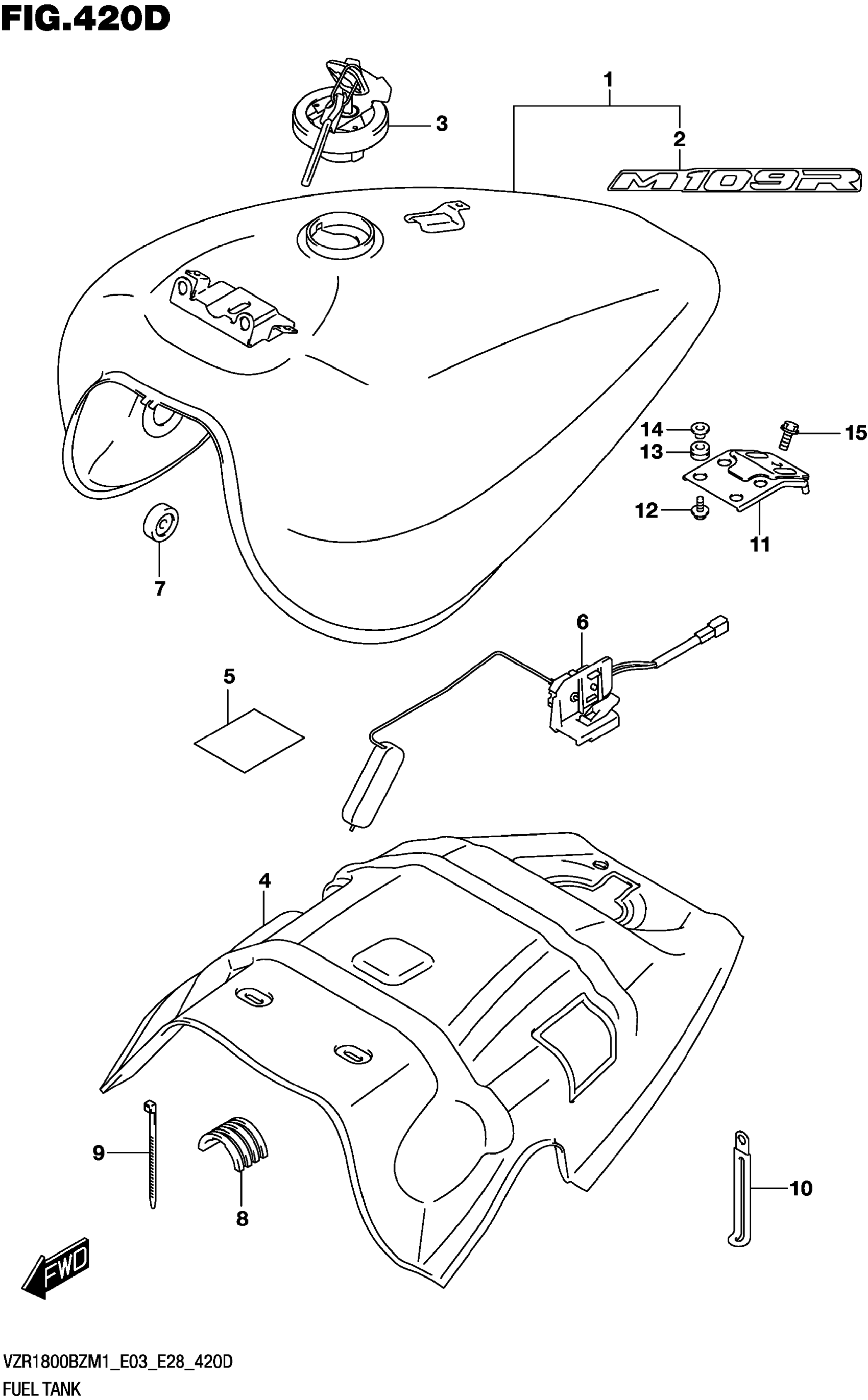

Suzuki VZR1800BZM1 (2021) FUEL TANK (E33)(SEE NOTE 1) 420D Diagram

TANK ASSY,FUEL (RED)

49100-48GA0-YYG

$1,277.12

.EMBLEM,"M109R" (BLACK)

68111-48G60-YVB

$19.80

CAP SET,FUEL TANK

44200-39871-000

Unavailable

SHIELD,FUEL TANK HEAT

44191-48G10-000

Unavailable

TAPE,HEAT SHIELD

44192-48G00-000

Unavailable

GAUGE ASSY,FUEL LEVEL SENDER

34810-48G00-000

Unavailable

CUSHION

09329-10026-000

Unavailable

CUSHION,FUEL TANK

44541-13E10-000

Unavailable

CLAMP (L:300)

09407-30402-000

Unavailable

CLAMP (L:80)

09404-06436-000

Unavailable

BRACKET,FUEL TANK REAR

44530-48G10-000

Unavailable

BOLT (6X20)

09116-06192-000

Unavailable

CUSHION

09320-08001-000

Unavailable

WASHER (6.3X17X1.6)

09169-06062-000

Unavailable

BOLT (8X16)

01550-0816A-000

Unavailable

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | NOTE 1: FOR AV4

SPECIAL NOTE

Unavailable
