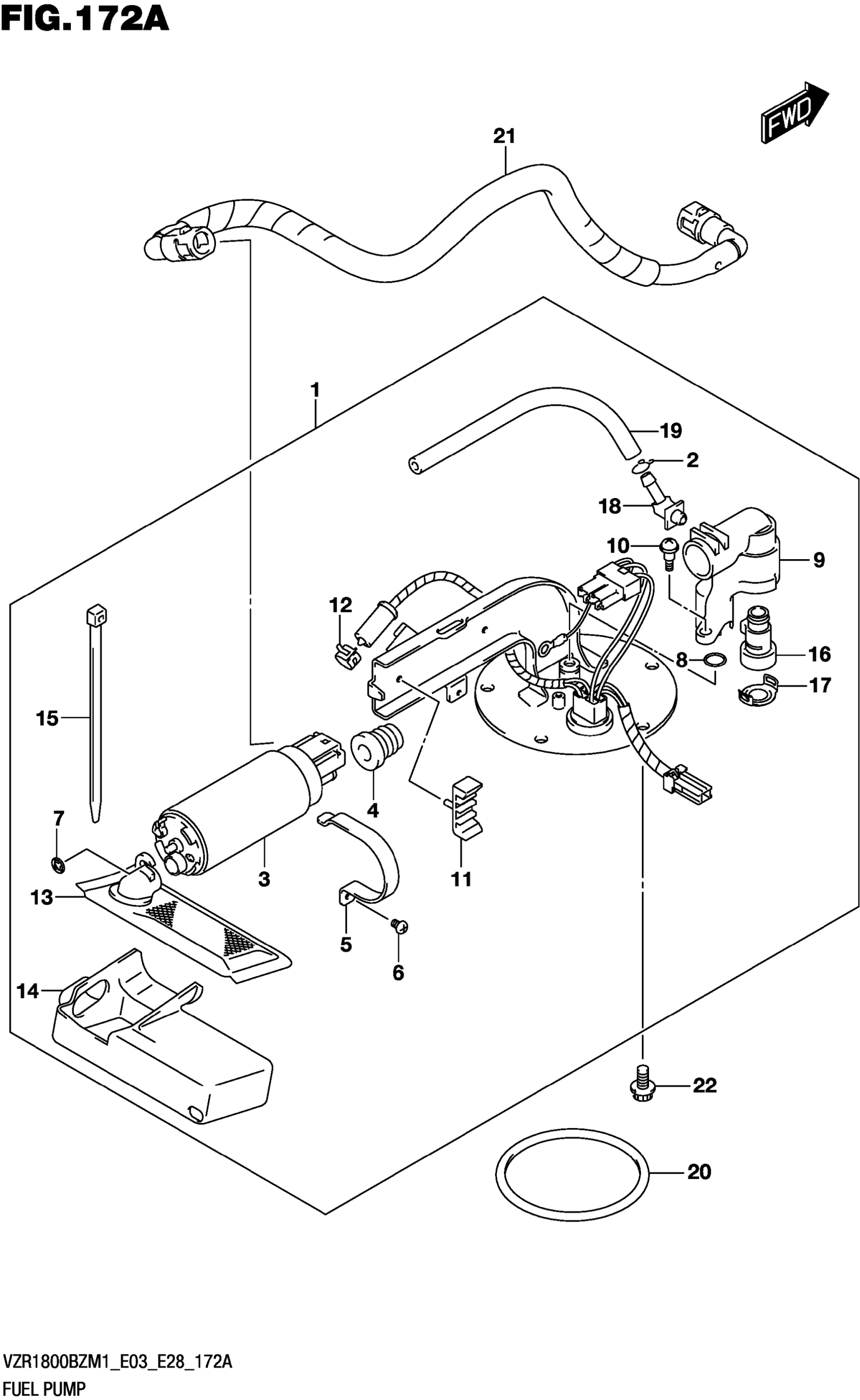

Suzuki VZR1800BZM1 (2021) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL

15100-48G11-000

Unavailable

2

.CLIP

13693-24F00-000

Unavailable

3

.PUMP,FUEL

15110-48G00-000

Unavailable

4

.INSULATOR

15114-48G01-000

Unavailable

5

.HOLDER

15115-14G00-000

Unavailable

6

.SCREW

15116-48G00-000

Unavailable

7

.PLATE

15119-14G00-000

Unavailable

8

.O RING

15125-48G00-000

Unavailable

9

.ADAPTER

15131-48G00-000

Unavailable

10

.SCREW

15135-48G00-000

Unavailable

11

.INSULATOR

15141-48G00-000

Unavailable

12

.CLAMP

15175-48G00-000

Unavailable

13

.FILTER

15420-48G00-000

Unavailable

14

.COVER,FILTER

15425-48G00-000

Unavailable

15

.BAND

15426-48G00-000

Unavailable

16

.REGULATOR,PRESSURE

15610-48G00-000

Unavailable

17

.CLIP

15613-48G00-000

Unavailable

18

.JOINT

15614-48G00-000

Unavailable

19

.TUBE

15615-48G00-000

Unavailable

20

O RING,FUEL PUMP

15201-35F00-000

Unavailable

21

HOSE,FUEL

15810-48G01-000

Unavailable

22

BOLT

07120-0612A-000

Unavailable
