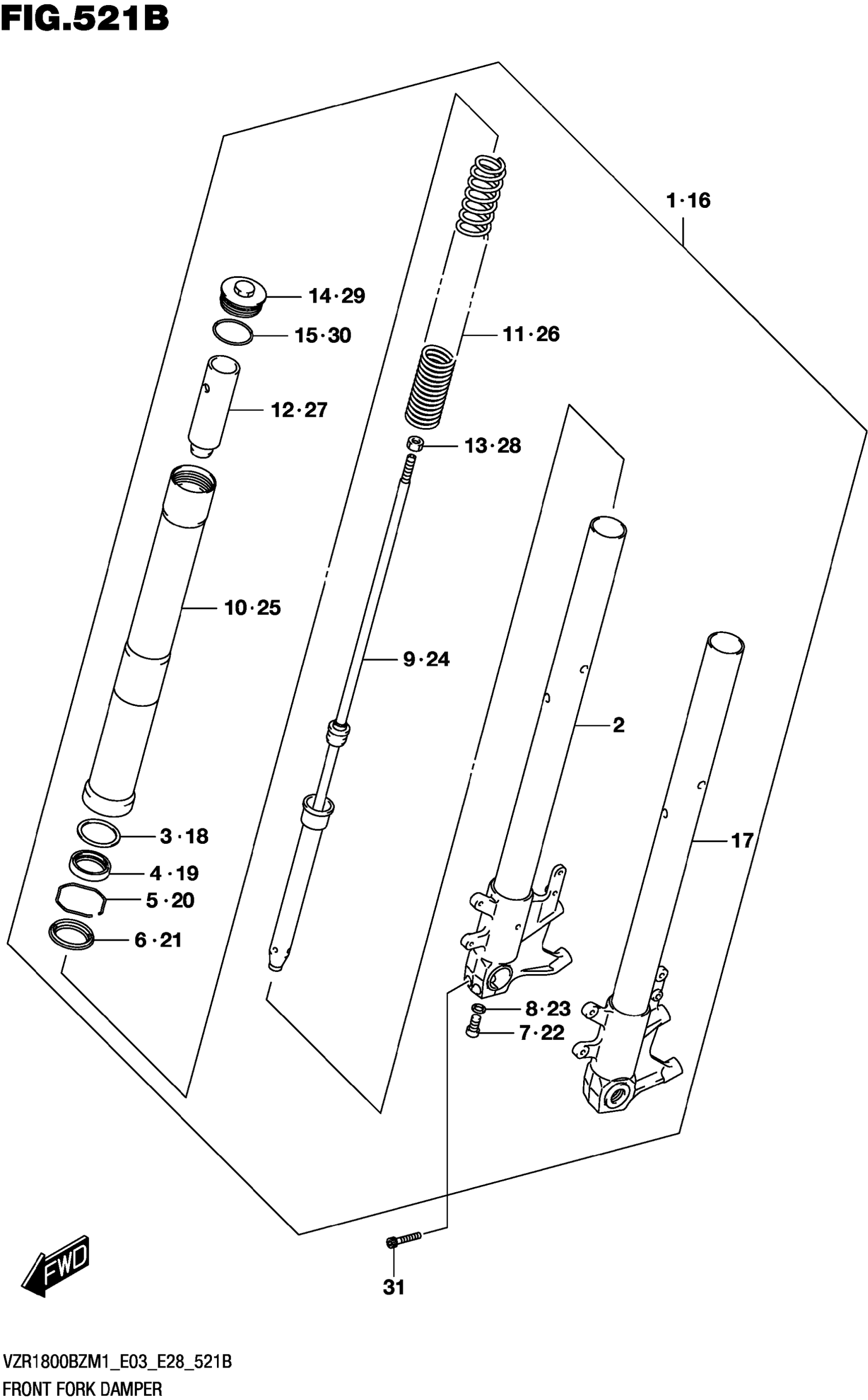

Suzuki VZR1800BZM1 (2021) FRONT FORK DAMPER Diagram

#

Description

Price

1

DAMPER ASSY,FR FORK,RH

51103-48G31-000

Unavailable

2

.TUBE,INNER RH

51110-48G30-000

Unavailable

3

.WASHER

51158-27C00-000

Unavailable

4

.SEAL,OIL

51153-48G00-000

Unavailable

5

.RING,STOPPER

51156-27C00-000

Unavailable

6

.SEAL,DUST

51173-42F00-000

Unavailable

7

.BOLT

51147-05H00-000

Unavailable

8

.GASKET

51148-41310-000

Unavailable

9

.CYLINDER

51146-48G20-000

Unavailable

10

.TUBE,OUTER

51130-48G30-000

Unavailable

11

.SPRING,FRONT

51171-48G20-000

Unavailable

12

.SPACER,SPRING

51176-21H00-000

Unavailable

13

.NUT,ROD

51352-13A60-000

Unavailable

14

.CAP

51351-48G30-000

Unavailable

15

.O RING

51117-48G01-000

Unavailable

16

DAMPER ASSY,FR FORK,L

51104-48G31-000

Unavailable

17

.TUBE,INNER LH

51120-48G30-000

Unavailable

18

.WASHER

51158-27C00-000

Unavailable

19

.SEAL,OIL

51153-48G00-000

Unavailable

20

.RING,STOPPER

51156-27C00-000

Unavailable

21

.SEAL,DUST

51173-42F00-000

Unavailable

22

.BOLT

51147-05H00-000

Unavailable

23

.GASKET

51148-41310-000

Unavailable

24

.CYLINDER

51146-48G20-000

Unavailable

25

.TUBE,OUTER

51130-48G30-000

Unavailable

26

.SPRING,FRONT

51171-48G20-000

Unavailable

27

.SPACER,SPRING

51176-21H00-000

Unavailable

28

.NUT,ROD

51352-13A60-000

Unavailable

29

.CAP

51351-48G30-000

Unavailable

30

.O RING

51117-48G01-000

Unavailable

31

BOLT,HOLDER HANDLE UPPER

51328-39G20-000

Unavailable
