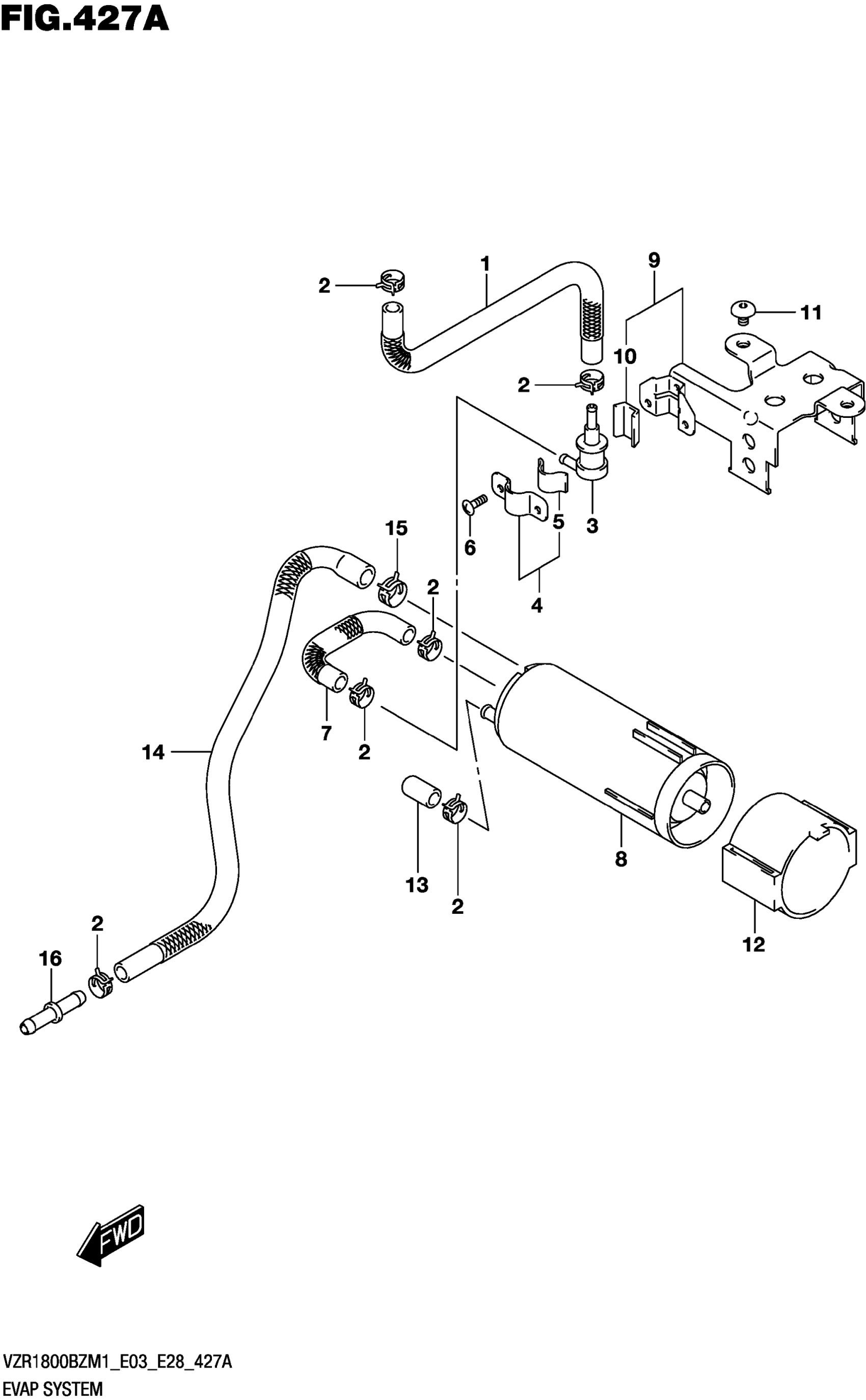

Suzuki VZR1800BZM1 (2021) EVAP SYSTEM (E33) Diagram

#

Description

Price

1

HOSE,TANK & BRTHR VALVE

44434-48G30-000

Unavailable

2

CLIP (ID:11)

09401-11413-000

Unavailable

3

VALVE,FUEL TANK BREATHER

44240-17C00-000

Unavailable

4

PLATE,FUEL TANK BREATHER,NO.2

44892-24A00-000

Unavailable

5

.CUSHION (10X30X2)

44894-24A00-000

Unavailable

6

SCREW

02142-0408A-000

Unavailable

7

HOSE,BRTHR VALVE & CSTR

44435-48G20-000

Unavailable

8

CANISTER ASSY,CHARCOAL

17210-26E00-000

Unavailable

9

BRACKET,CANISTER

44880-48G00-000

Unavailable

10

.CUSHION (10X30X2)

44894-24A00-000

Unavailable

11

SCREW (6X12)

09139-06108-000

Unavailable

12

CUSHION,CANISTER

44883-48G00-000

Unavailable

13

CAP

09251-07005-000

Unavailable

14

HOSE,CSTR PURGE

44436-48G20-000

Unavailable

15

CLIP (ID:12)

09401-12404-000

Unavailable

16

JOINT

09367-06009-000

Unavailable
