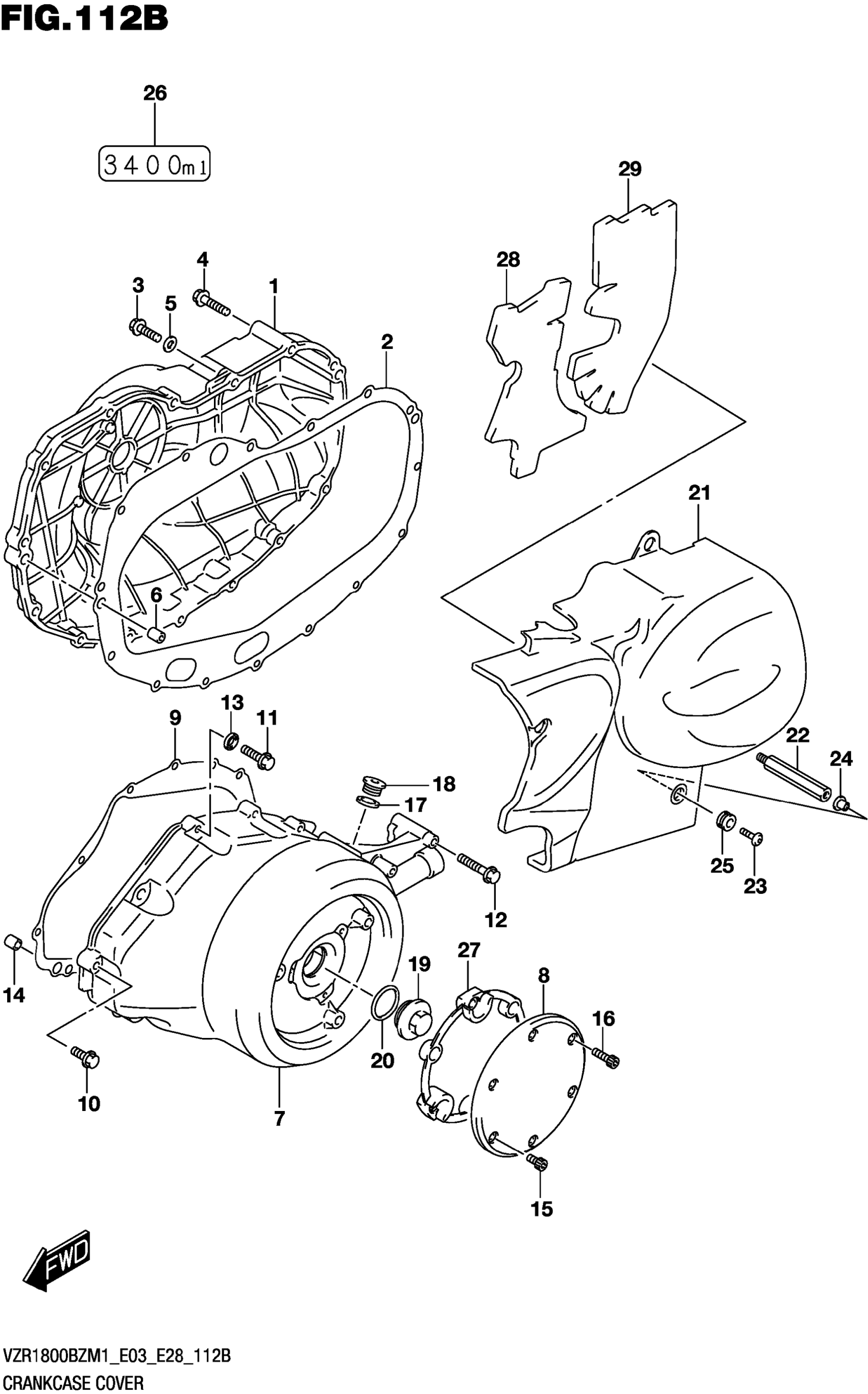

Suzuki VZR1800BZM1 (2021) CRANKCASE COVER Diagram

#

Description

Price

1

COVER,CLUTCH

11341-48G10-000

Unavailable

2

.GASKET,CL COVER

11482-48G00-000

Unavailable

3

BOLT (6X30)

09103-06213-000

Unavailable

4

BOLT (6X60)

09103-06261-000

Unavailable

5

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

6

PIN

04211-09189-000

Unavailable

7

COVER,MAGNETO

11351-48G10-000

Unavailable

8

CAP,MAGNETO COVER

11352-48G00-000

Unavailable

9

.GASKET,MAGNETO COVER (5.8X13 | .2)

11483-48G00-000

Unavailable

10

BOLT (6X30)

09103-06213-000

Unavailable

11

BOLT (6X50)

09103-06238-000

Unavailable

12

BOLT (6X70)

09103-06225-000

Unavailable

13

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

14

PIN (8.5X18X2.3)

04211-09149-000

Unavailable

15

BOLT (6X10)

09106-06068-000

Unavailable

16

BOLT (6X20)

09106-06123-000

Unavailable

17

GASKET (16X22X2)

09168-16002-000

Unavailable

18

PLUG (16X8)

09248-16012-000

Unavailable

19

CAP

09259-30005-000

Unavailable

20

O-RING (D:3.1,ID:26.4)

09280-26006-000

Unavailable

21

COVER,SECONDARY DRIVE UNIT

11361-48G30-000

Unavailable

22

BOLT,SEC DRIVE UNIT COVER

11372-48G00-000

Unavailable

23

SCREW (6X20)

09139-06028-000

Unavailable

24

WASHER (6.3X17X1.6)

09169-06062-000

Unavailable

25

CUSHION (9X18X10)

09320-09501-000

Unavailable

26

NOTE,ENGINE OIL

68322-48G00-000

Unavailable

27

DAMPER,MAGNETO COVER CAP

11353-48G01-000

Unavailable

28

DAMPER,SEC DRIVE UNIT COVER

11363-48G20-000

Unavailable

29

DAMPER,SEC DRIVE UNIT COVER

11364-48G00-000

Unavailable
