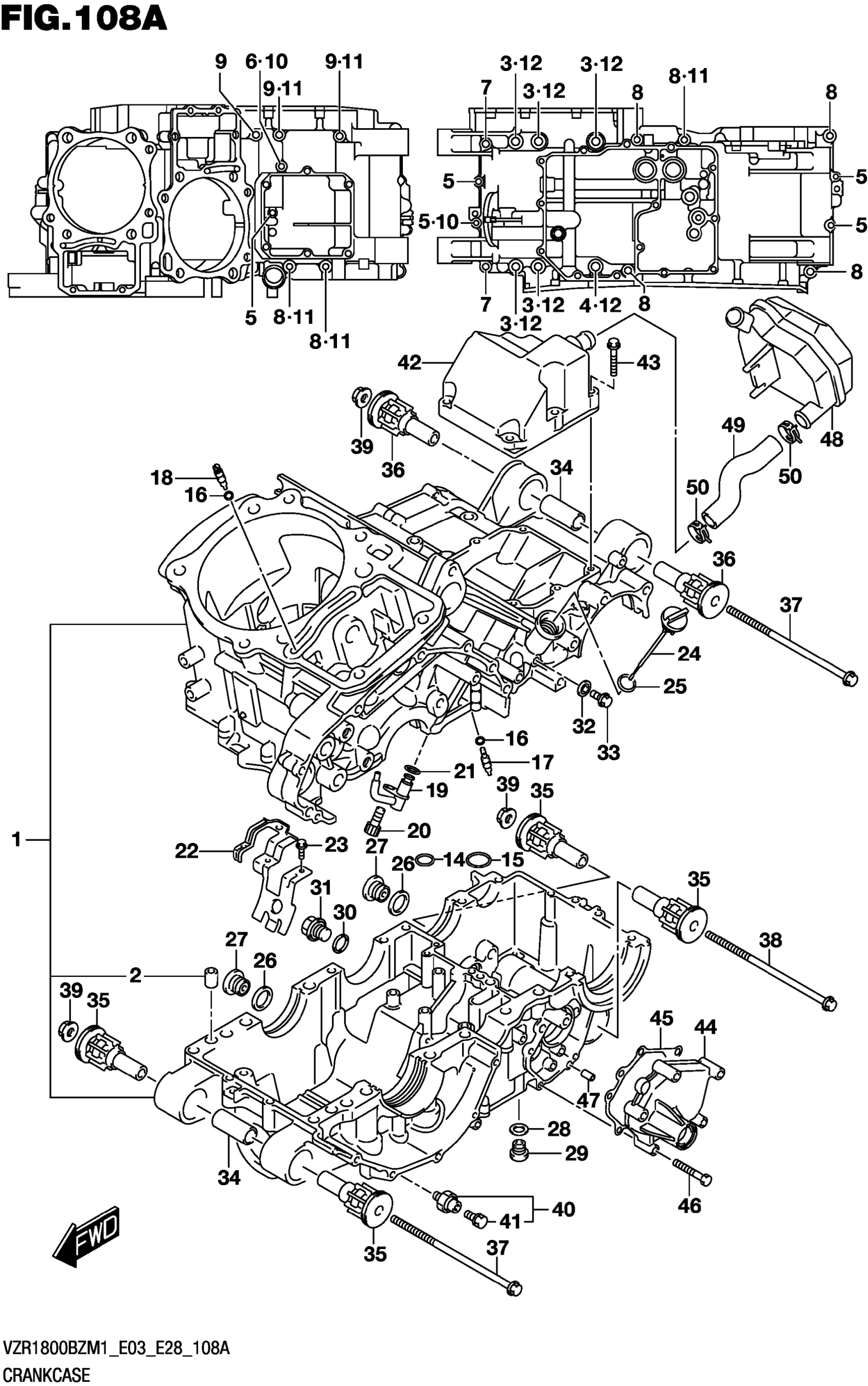

Suzuki VZR1800BZM1 (2021) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-48881-000

Unavailable

2

.PIN,CRANKCASE

11319-33E50-000

Unavailable

3

.BOLT (10X100)

09103-10110-000

Unavailable

4

.BOLT (10X115)

09103-10406-000

Unavailable

5

.BOLT

01547-0645A-000

Unavailable

6

.BOLT

01547-0670A-000

Unavailable

7

.BOLT

07130-0850A-000

Unavailable

8

.BOLT

07130-0865A-000

Unavailable

9

.BOLT

07130-0885A-000

Unavailable

10

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

11

GASKET (8.2X14X1)

09168-08016-000

Unavailable

12

.GASKET (10.2X20X2.3)

09168-10031-000

Unavailable

13-1

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0A0

$13.28

13-2

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0B0

Unavailable

13-3

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0C0

$13.28

13-4

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0D0

Unavailable

13-5

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0E0

$13.28

13-6

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0F0

Unavailable

14

O-RING (D:1.9,ID:7.8)

09280-08012-000

Unavailable

15

O-RING (D:1.9,ID:12.6)

09280-12009-000

Unavailable

16

O-RING (D:1.2,ID:4)

09280-04004-000

Unavailable

17

JET (#80)

09493-80005-000

Unavailable

18

JET (#80)

09493-80005-000

Unavailable

19

JET,PISTON COOLING

11390-48G00-000

Unavailable

20

BOLT (6X12)

09106-06075-000

Unavailable

21

O-RING (D:1.2,ID:4.7)

09280-05007-000

Unavailable

22

PLATE,OIL SEPARATOR

11521-48G00-000

Unavailable

23

BOLT

01547-0612A-000

Unavailable

24

GAUGE,OIL LEVEL

11971-48G01-000

Unavailable

25

O-RING (D:3.1,ID:16.8)

09280-17003-000

Unavailable

26

GASKET (16X22X2)

09168-16002-000

Unavailable

27

.GASKET (13.8X18.8X4.8)

09168-14002-000

Unavailable

28

.GASKET (13.8X18.8X4.8)

09168-14002-000

Unavailable

29

PLUG (14X12)

09248-14011-000

Unavailable

30

GASKET (12.1X16.2X3.7)

09168-12002-000

Unavailable

31

PLUG (12X10)

09247-12006-000

Unavailable

32

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

33

BOLT

01547-0612A-000

Unavailable

34

SPACER,ENG MTG

11611-48G00-000

Unavailable

35

BUSH,ENG MTG

11652-10G50-000

Unavailable

36

BUSH,ENG MTG

11652-10G30-000

Unavailable

37

BOLT (10X215)

09103-10041-A05

$10.40

38

BOLT (10X195)

09103-10118-000

Unavailable

39

NUT

08319-3110A-000

Unavailable

40

SWITCH ASSY,OIL PRESSURE

37820-33D10-000

Unavailable

41

.BOLT,OIL PRESSURE SWITCH

37822-33D00-000

Unavailable

42

COVER,BREATHER

11330-48G00-000

Unavailable

43

BOLT

01547-0630A-000

Unavailable

44

COVER,GEAR SHIFT

11371-48G00-000

Unavailable

45

.GASKET,GEAR SHIFT COVER

11485-48G00-000

Unavailable

46

.BOLT

01547-0645A-000

Unavailable

47

PIN (8.5X18X2.3)

04211-09149-000

Unavailable

48

TANK,OIL RETURN

11332-48G00-000

Unavailable

49

HOSE,OIL RETURN TANK

11333-48G00-000

Unavailable

50

CLIP

09401-20405-000

Unavailable
