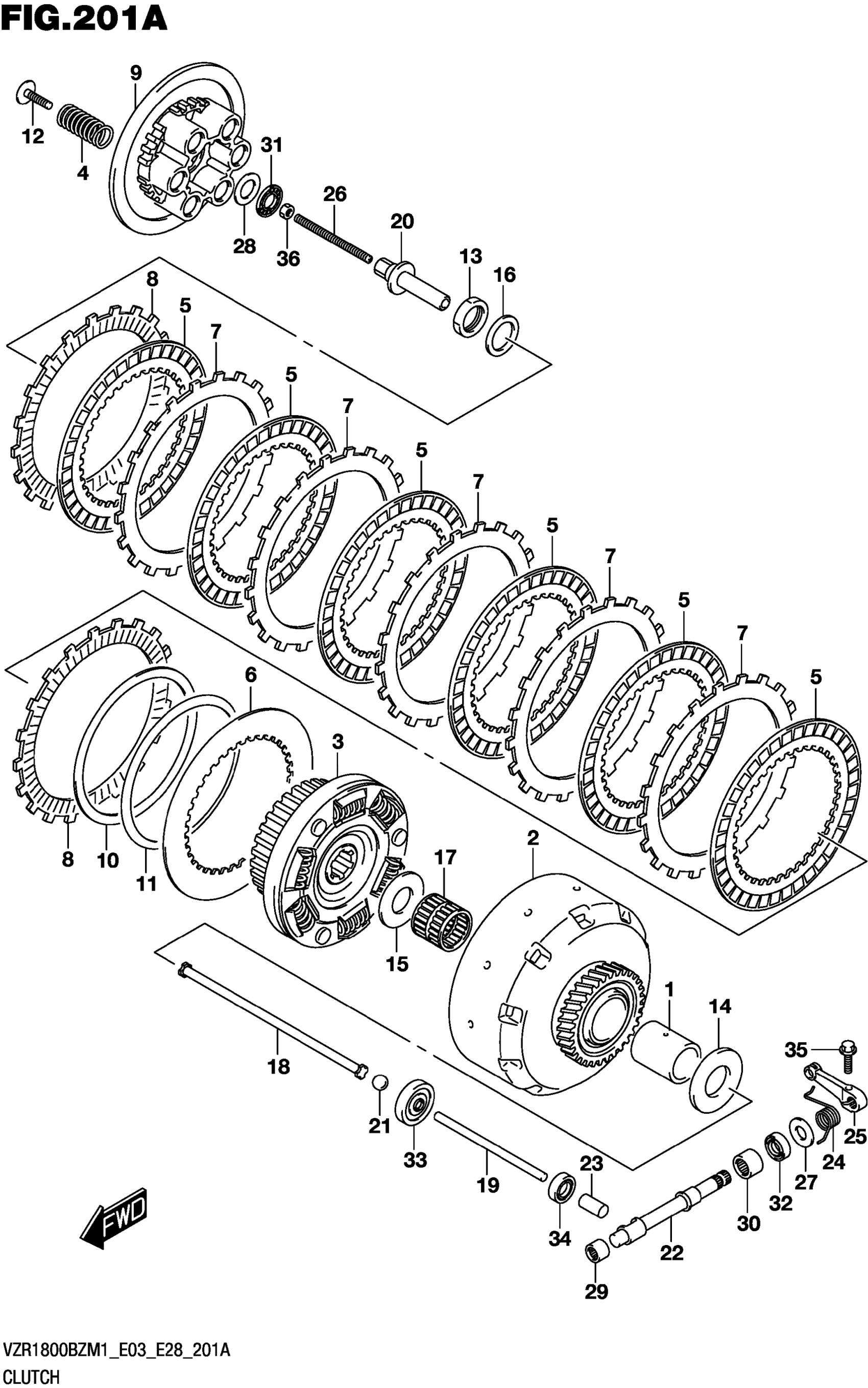

Suzuki VZR1800BZM1 (2021) CLUTCH Diagram
#
1
SPACER,PRIMARY DRIVE GEAR
21151-48G00-000
Unavailable
2
GEAR ASSY,PRIMARY DRIVE (NT:3 | )
21100-48G01-000
Unavailable
3
HUB,CLUTCH
21410-48G10-000
Unavailable
4
SPRING,CLUTCH
21413-35F10-000
Unavailable
5
PLATE,CLUTCH DRIVE NO.1 (T:3. | )
21441-22H00-000
Unavailable
6
PLATE,CLUTCH DRIVE NO.2 (T:2. | )
21441-48G40-000
Unavailable
7
PLATE,CLUTCH DRIVEN NO.1 (T:2 | 3)
21451-22H00-000
Unavailable
8
PLATE,CLUTCH DRIVEN NO.2 (T:3 | 4)
21451-48G10-000
Unavailable
9
DISC,CLUTCH PRESSURE
21462-48G00-000
Unavailable
10
SEAT,WAVE WASHER (109X124X1.6
21471-48G00-000
Unavailable
11
WASHER,CLUTCH PLATE WAVE
21472-48G10-000
Unavailable
12
BOLT,CLUTCH SPRING
21482-41G00-000
Unavailable
13
NUT
09159-24010-000
Unavailable
14
WASHER (25X50X2.5)
09160-25056-000
Unavailable
15
WASHER (25X50X2.5)
09160-25056-000
Unavailable
16
WASHER (24.2X35X2.7)
09164-24008-000
Unavailable
17
BEARING (32X37X38.3)
09263-32020-000
Unavailable
18
ROD,CLUTCH (L:195.5)
23110-24F00-000
Unavailable
19
ROD,CLUTCH PUSH,L
23111-48G00-000
Unavailable
20
PIECE,CLUTCH PUSH
23121-41G00-000
Unavailable
21
BALL,CLUTCH PUSH PIECE
23122-02FR0-000
Unavailable
22
CAMSHAFT,CLUTCH RELEASE
23122-48G00-000
Unavailable
23
CAP,CLUTCH PUSH ROD
23123-41G00-000
Unavailable
24
SPRING,CLUTCH RELEASE RETURN
23125-48G00-000
Unavailable
25
ARM,CLUTCH RELEASE
23271-48G00-000
Unavailable
26
SCREW (6X73)
09134-06015-000
Unavailable
27
WASHER,10.5X24X1 (10.5X24X1.0
09160-10020-000
Unavailable
28
WASHER (15.5X28X1)
09160-15045-000
Unavailable
29
BEARING (10X14X10)
09263-10014-000
Unavailable
30
BEARING (12X18X12)
09263-12027-000
Unavailable
31
BEARING (15X28X2)
09263-15003-000
Unavailable
32
SEAL,OIL (10X20X6)
09282-10012-000
Unavailable
33
SEAL,OIL (6X34X10.5)
09283-06010-000
Unavailable
34
OIL SEAL (10X17X5)
09285-10004-000
Unavailable
35
BOLT
01547-0620A-000
Unavailable
36
NUT
08310-0006A-000
Unavailable
