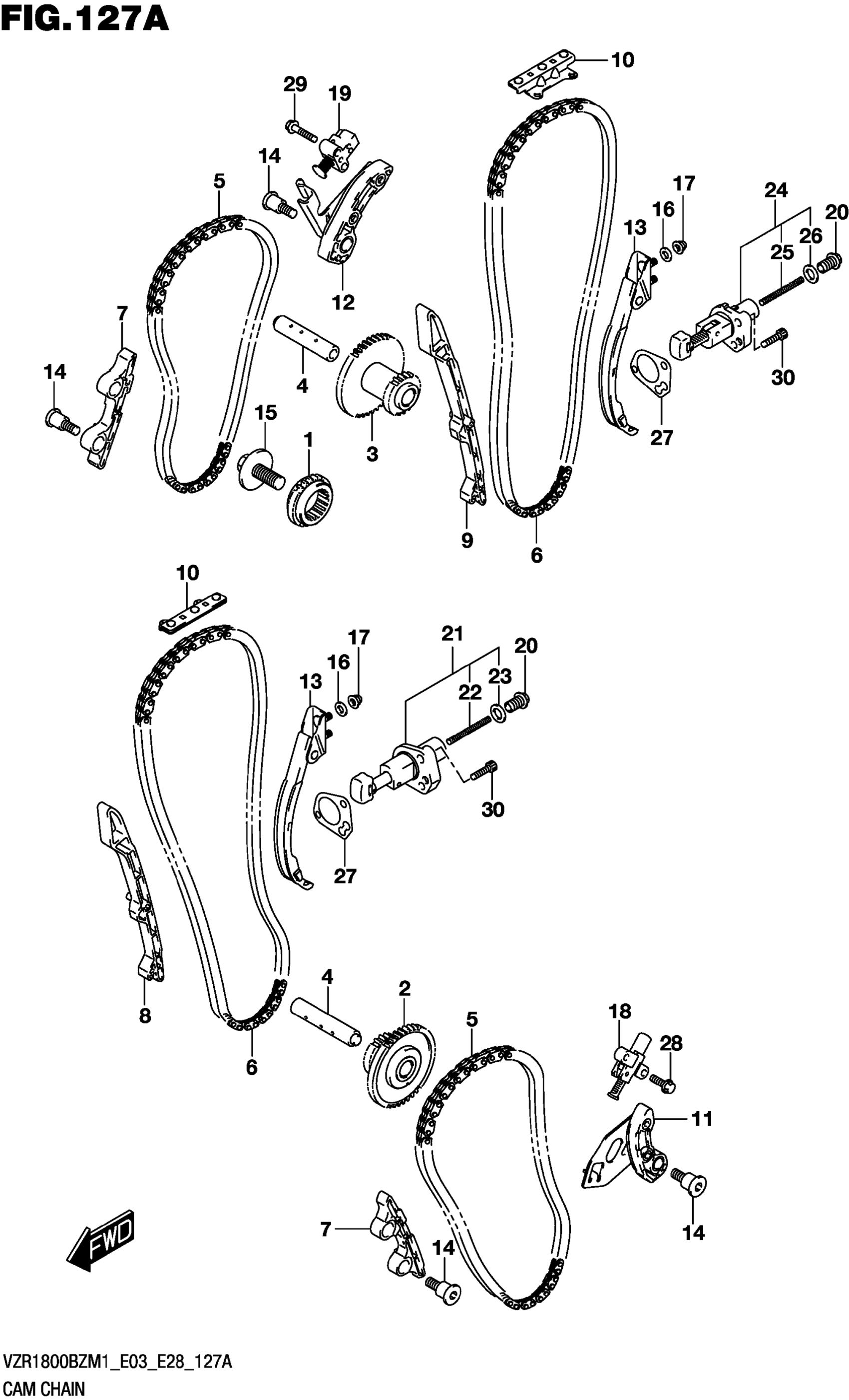

Suzuki VZR1800BZM1 (2021) CAM CHAIN Diagram

#

Description
Price

1

SPROCKET,CAM CHAIN DRIVE RH

12731-48G00-000

Unavailable

2

SPROCKET,CAM CHAIN IDR FR

12751-48G00-000

Unavailable

3

SPROCKET,CAM CHAIN IDR RR

12752-48G00-000

Unavailable

4

SHAFT,IDLER

12755-48G00-000

Unavailable

5

CHAIN,CAMSHAFT DRIVE NO.1

12761-48G00-000

Unavailable

6

CHAIN,CAMSHAFT DRIVE NO.2

12762-48G00-000

Unavailable

7

GUIDE,CAM CHAIN NO.1

12771-48G00-000

Unavailable

8

GUIDE,CAM CHAIN NO.2 FRONT

12772-48G00-000

Unavailable

9

GUIDE,CAM CHAIN NO.2 REAR

12774-48G00-000

Unavailable

10

GUIDE,CAM CHAIN NO.3

12773-48G00-000

Unavailable

11

TENSIONER ASSY,CAM CH NO.1 FR

12811-48G00-000

Unavailable

12

TENSIONER ASSY,CAM CH NO.1 RR

12813-48G00-000

Unavailable

13

TENSIONER,CAM CHAIN NO.2

12814-48G01-000

Unavailable

14

BOLT,CAM CHAIN TENSIONER

12812-31G00-000

Unavailable

15

BOLT (12X28)

09103-12013-000

Unavailable

16

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

17

NUT

08313-20067-000

Unavailable

18

ADJUSTER ASSY,TNSN NO.1 FRONT

12831-48G00-000

Unavailable

19

ADJUSTER ASSY,TNSN NO.1 REAR

12832-48G00-000

Unavailable

20

PLUG,TENSIONER ADJUSTER

12833-17G00-000

Unavailable

21

ADJUSTER ASSY,TNSN NO.2 FRONT

12834-48G00-000

Unavailable

22

.SPRING

12831-35F00-000

Unavailable

23

.GASKET,TENSIONER ADJUSTER

12837-24F10-000

Unavailable

24

ADJUSTER ASSY,TNSN NO.2 REAR

12835-48G00-000

Unavailable

25

.SPRING

12831-35F00-000

Unavailable

26

.GASKET,TENSIONER ADJUSTER

12837-24F10-000

Unavailable

27

.GASKET,TENSIONER ADJUSTER

12837-27G00-000

Unavailable

28

BOLT (6X20)

01550-0620A-000

Unavailable

29

BOLT (L:30)

01550-0630A-000

Unavailable

30

BOLT

07130-0625A-000

Unavailable
