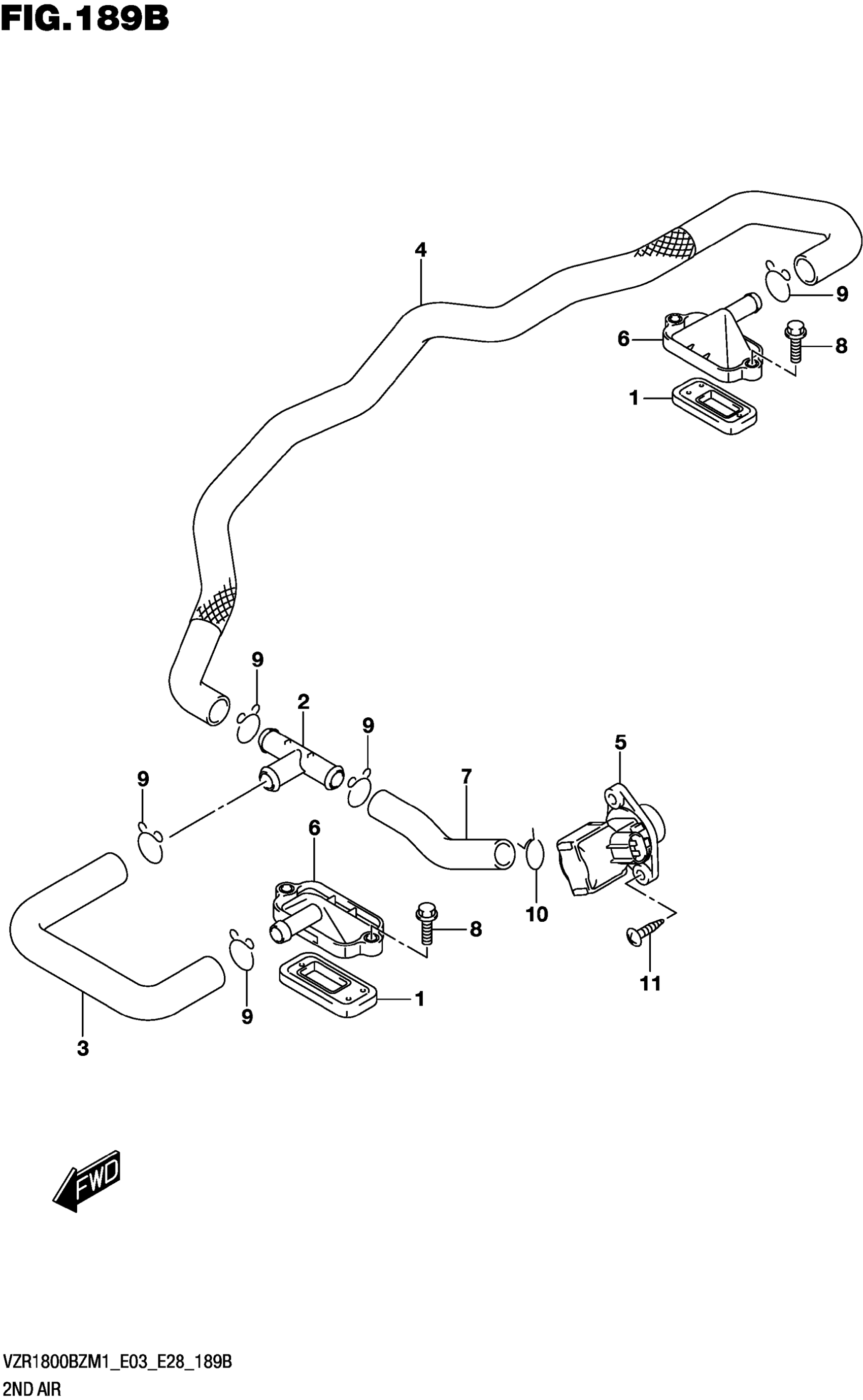

Suzuki VZR1800BZM1 (2021) 2ND AIR Diagram

#

Description

Price

1

.VALVE ASSY,2ND AIR REED

18450-06G00-000

Unavailable

2

JOINT

13855-18A03-000

Unavailable

3

HOSE,2ND AIR VALVE FR

18461-48G10-000

Unavailable

4

HOSE,2ND AIR VALVE RR

18471-48G10-000

Unavailable

5

VALVE ASSY,AIR CUT

18510-27G02-000

Unavailable

6

COVER,2ND AIR

18531-06G01-000

Unavailable

7

HOSE,2ND AIR VALVE

18711-48G00-000

Unavailable

8

BOLT (6X20)

09103-06201-000

Unavailable

9

CLIP (ID:15.5)

09401-15101-000

Unavailable

10

CLIP

09401-18304-A05

$2.83

11

SCREW

03541-0520A-000

Unavailable
