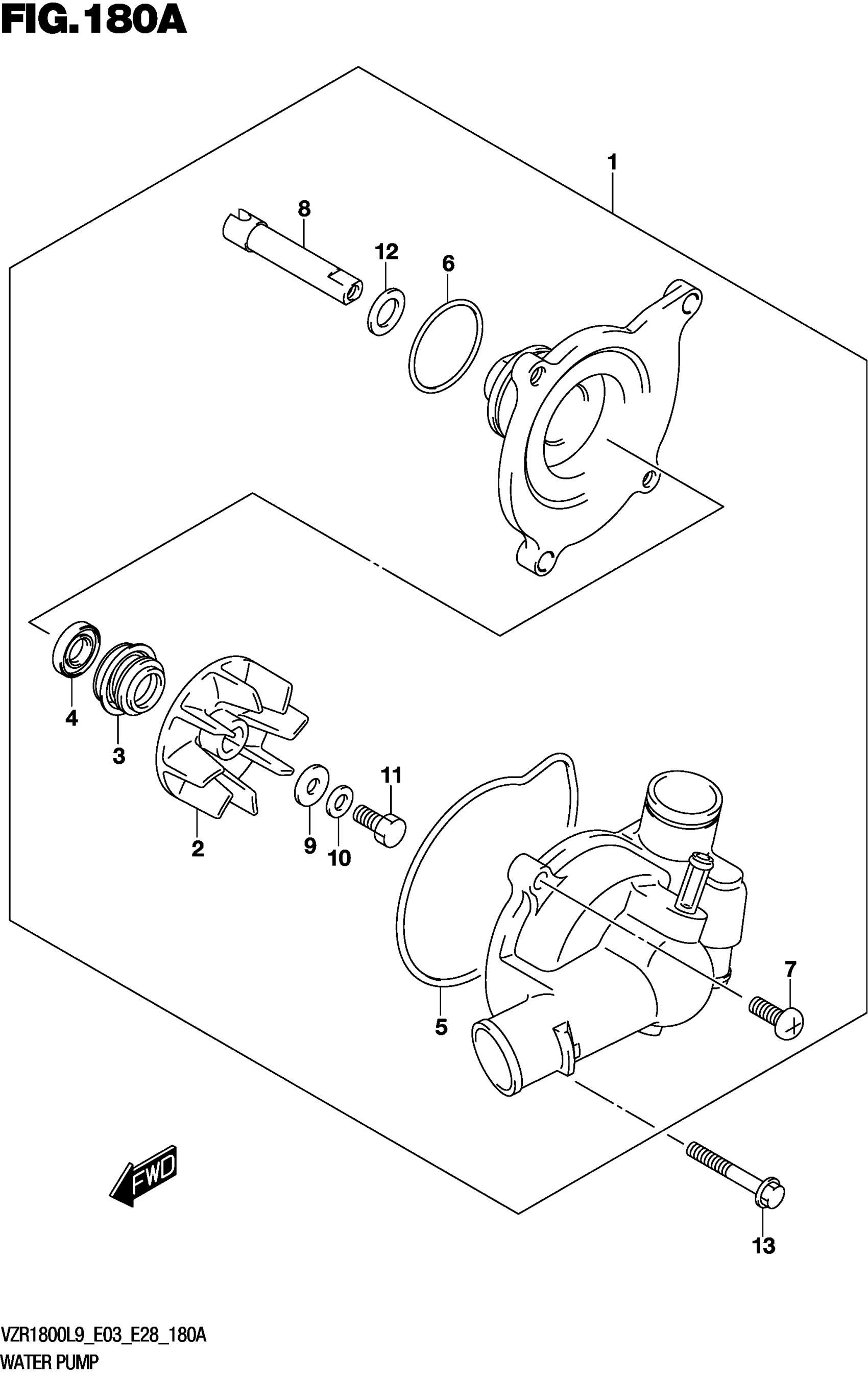

Suzuki VZR1800BZL9 (2019) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-48G00.

17400-48G01

$353.85

2

.IMPELLER

17491-17E01

$26.78

3

.SEAL,MECHANICAL

17470-02F11

$29.22

4

.SEAL OIL (10X21X5)

09283-10004

$4.96

5

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

6

.O-RING

17435-33400

$15.29

7

.SCREW

02112-0616B

$2.12

8

.SHAFT,WATER PUMP

17511-48G00

Unavailable

9

.GASKET (6X15X2.2)

09168-06025

$2.92

10

.WASHER

09164-06006

$2.61

11

.BOLT (6X13)

09100-06099

$2.00

12

SHIM (10X18X1)

09181-10167

$1.97

13

BOLT

01547-0635A

$2.30
