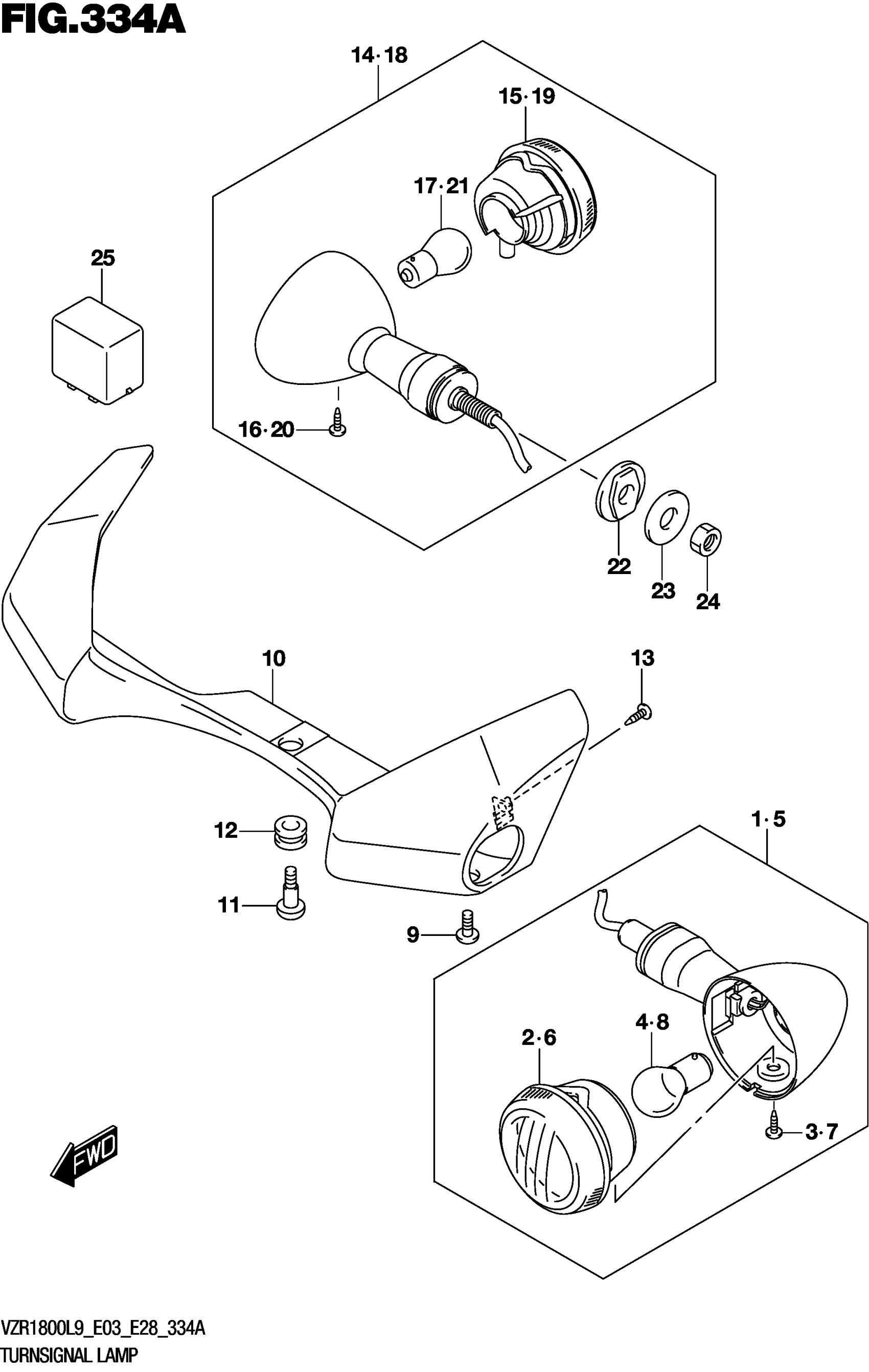

Suzuki VZR1800BZL9 (2019) TURNSIGNAL LAMP (VZR1800L9 E28) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-38AF0

$151.52

2

.LENS | FOR AMBER

35610-38AA0

$28.79

3

.SCREW (4X10)

35623-38AA0

$4.67

4

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.08

5

LAMP ASSY,FRONT TURNSIGNAL,L

35602-38AF0

$107.97

6

.LENS | FOR AMBER

35630-38AA0

$29.21

7

.SCREW (4X10)

35623-38AA0

$4.67

8

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.08

9

SCREW

02142-0612A

$1.37

10

STAY,FRONT TURNSIGNAL

35641-48G00

$211.80

11

SCREW (6X16)

09139-06146

$2.80

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

SCREW

03541-0512A

$1.37

14

LAMP ASSY,RR TURNSIGNAL RH This part replaces 35603-48EC0.

35603-48EC1

$104.10

15

.LENS | FOR AMBER

35630-38AE1

$29.21

16

.SCREW (4X10)

35623-38AA0

$4.67

17

.BULB (12V21W) | FOR CLEAR

09471-12045

$2.95

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AE0.

35604-38AE1

$113.63

19

.LENS | FOR AMBER

35610-38AE1

$28.79

20

.SCREW (4X10)

35623-38AA0

$4.67

21

.BULB (12V21W) | FOR CLEAR

09471-12045

$2.95

22

SPACER,REAR TURNSIGNAL

35695-17C00

$3.69

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.86

25

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$81.99
