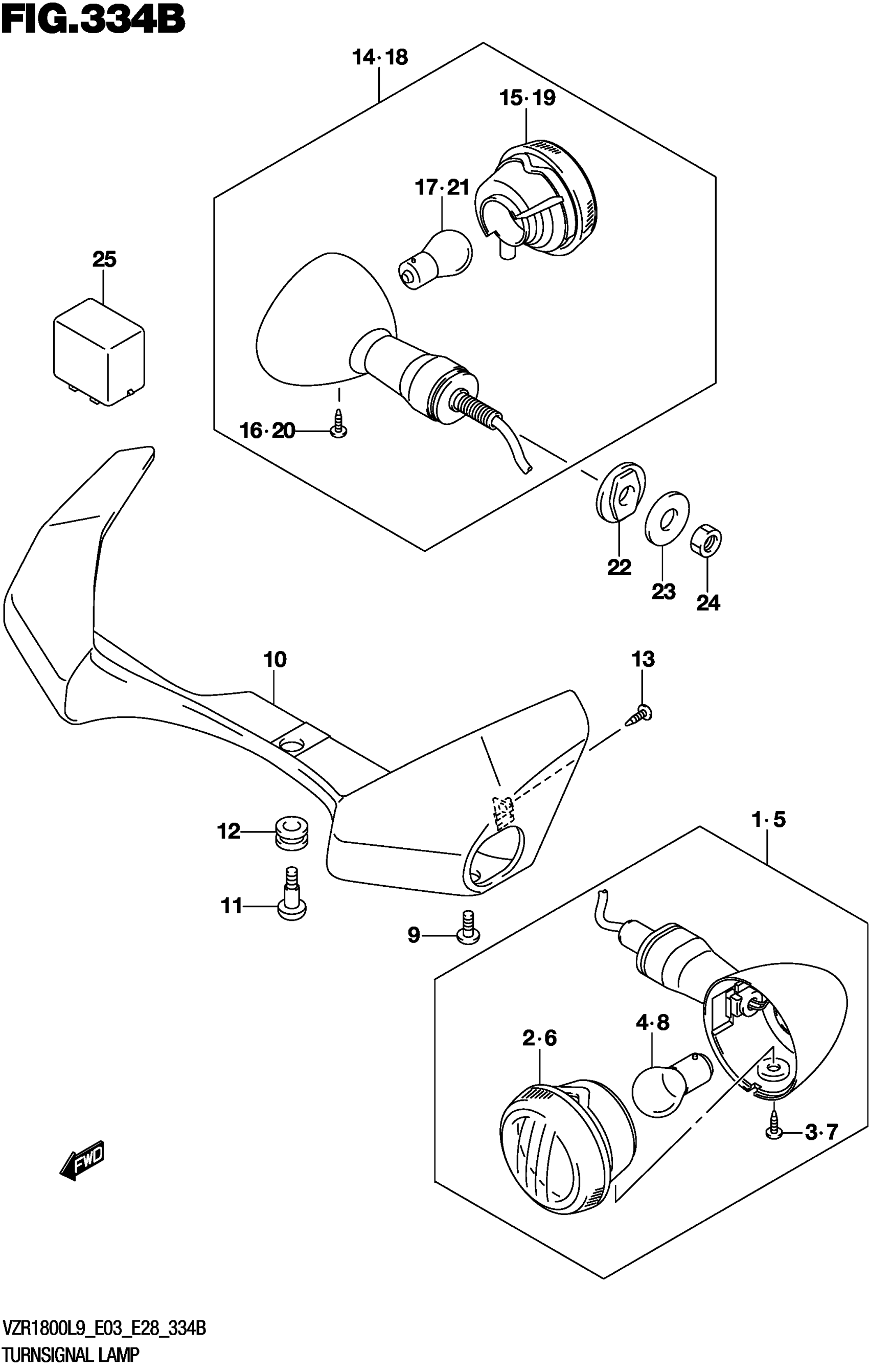

Suzuki VZR1800BZL9 (2019) TURNSIGNAL LAMP (VZR1800BZL9 E03) Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL RH

35601-38AH0

$204.12

2

.LENS | FOR CLEAR

35610-48EB0

$56.78

3

.SCREW (4X10)

35623-38AA0

$4.67

4

.BULB (12V23/8W) | FOR AMBER

09471-12224

$43.65

5

LAMP ASSY,FRONT TURNSIGNAL LH

35602-38AH0

$194.68

6

.LENS | FOR CLEAR

35630-48EB0

$58.95

7

.SCREW (4X10)

35623-38AA0

$4.67

8

.BULB (12V23/8W) | FOR AMBER

09471-12224

$43.65

9

SCREW

02142-0612A

$1.37

10

COVER,FRONT TURNSIGNAL

35641-48GB0

$182.22

11

SCREW (6X16)

09139-06146

$2.80

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

SCREW

03541-0512A

$1.37

14

LAMP ASSY,REAR TURNSIGNAL RH

35603-48ED0

$173.00

15

.LENS | FOR CLEAR

35630-38AF0

$56.78

16

.SCREW (4X10)

35623-38AA0

$4.67

17

.BULB (12V21W) | FOR AMBER

09471-12186

$16.18

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AF0.

35604-38AF1

$119.88

19

.LENS | FOR CLEAR

35610-38AF0

$56.78

20

.SCREW (4X10)

35623-38AA0

$4.67

21

.BULB (12V21W) | FOR AMBER

09471-12186

$16.18

22

SPACER,REAR TURNSIGNAL

35695-17C00

$3.69

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08310-0010A

$1.86

25

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$81.99
