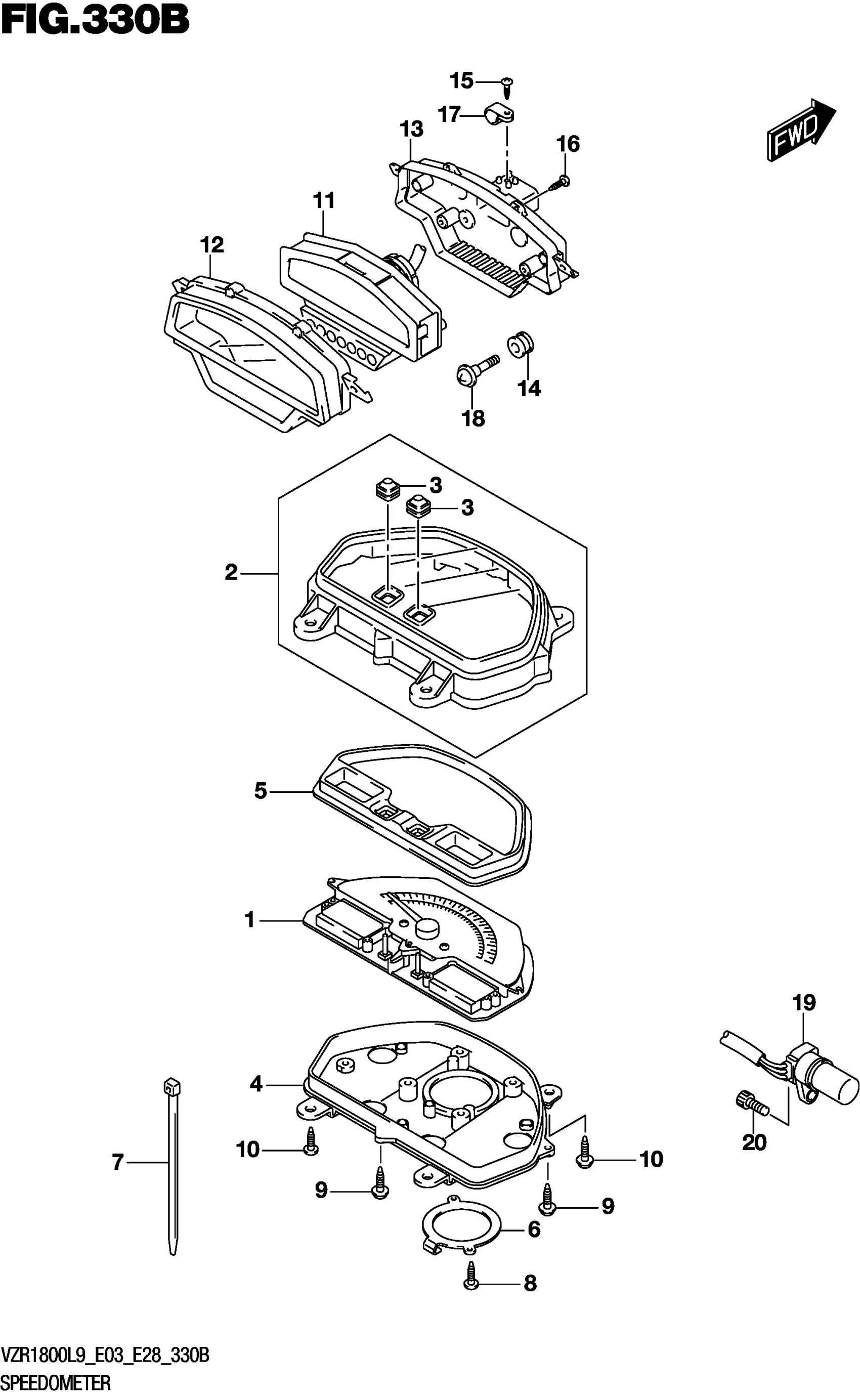

Suzuki VZR1800BZL9 (2019) SPEEDOMETER (VZR1800BZL9 E03) Diagram

#

Description
Price

1

SPEEDOMETER

34120-48GG0

$505.62

2

UPPER CASE ASSY

34150-48G00

$138.98

3

.RUBBER,SWITCH

34124-32F00

$6.50

4

LOWER CASE

34111-48G40

$95.62

5

REFLECTOR ASSY

34125-48G00

$80.70

6

BRACKET

34950-48G00

Unavailable

7

CLAMP (L:100)

34192-48G00

Unavailable

8

.SCREW (3X12)

34183-09F00

$1.79

9

SCREW (3X14)

34149-03G00

$3.50

10

SCREW

03541-0516A

$1.37

11

TACHOMETER ASSY

34220-48G40

$759.08

12

CASE ASSY,UPPER

34250-48G30

$135.78

13

CASE ASSY,LOWER

34211-48G30

$97.10

14

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

15

SCREW (4X14)

34149-17E10

Unavailable

16

SCREW (3X16)

09132-03008

$1.55

17

CLAMP

36385-24A30

Unavailable

18

SCREW

03541-0516A

$1.37

19

SENSOR,SPEED This part replaces 34990-48G00.

34990-48G01

$178.65

20

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38
