Description

Price

1

GEAR SET,SECONDARY

24910-48830

$958.62

2

BOLT (12X24)

09103-12084

$8.48

3

WASHER (12X35X2.0)

09160-12045

$4.11

4

DOG,OUTPUT CAM

24923-48G10

$128.75

5

STOPPER,CAM SPRING

24924-48G10

Unavailable

6

SPRING,SECONDARY DAMPER

24925-48G00

$50.92

7

STOPPER SECONDARY SET,DRIVEN

24926-48830

$328.55

8

CASE,SECONDARY GEAR

24931-48G30

$382.13

9

SHIM SET,SEC DRIVE | T:0.40/0.45/0.50/0.55/0.60/

24935-48810

$99.25

9

SHIM SET,SEC DRIVE | 0.65/0.70/0.75/0.80

24935-48810

$99.25

10

PIPE,SECONDARY CASE,OIL

24940-26D00

Unavailable

11

STOPPER,SEC DRIVEN BEARING

24942-26D00

$72.00

12

COUPLING,SEC,DRIVEN BEVEL

24943-48G01

$106.45

13

HOUSING,OIL SEAL

24944-48G00

$52.33

14

SHIM SET,SECONDARY DRIVEN | T:0.30/0.35/0.40/0.50/0.60

24945-48810

$100.45

15

SHAFT,SECONDARY DRIVEN

24961-48G00

$175.18

16

NUT

09159-16003

$4.00

17

WASHER (16.5X36X4.0)

09160-16040

$11.73

18

BEARING (32X48X22)

09263-32012

$112.65

19

O-RING (D:1.7,ID:6)

09280-06008

$2.03

20

O-RING (D:2.4,ID:23.7)

09280-24010

$5.64

21

O-RING (D:3.7,ID:76.5)

09280-78003

$7.55

22

O-RING (D:2.4,ID:90.8)

09280-92003

$20.18

23

OIL SEAL (38X54X6)

09283-38011

$17.92

24

BOLT

01550-0895A

$4.60

25

BOLT (10X30)

09106-10087

$6.20

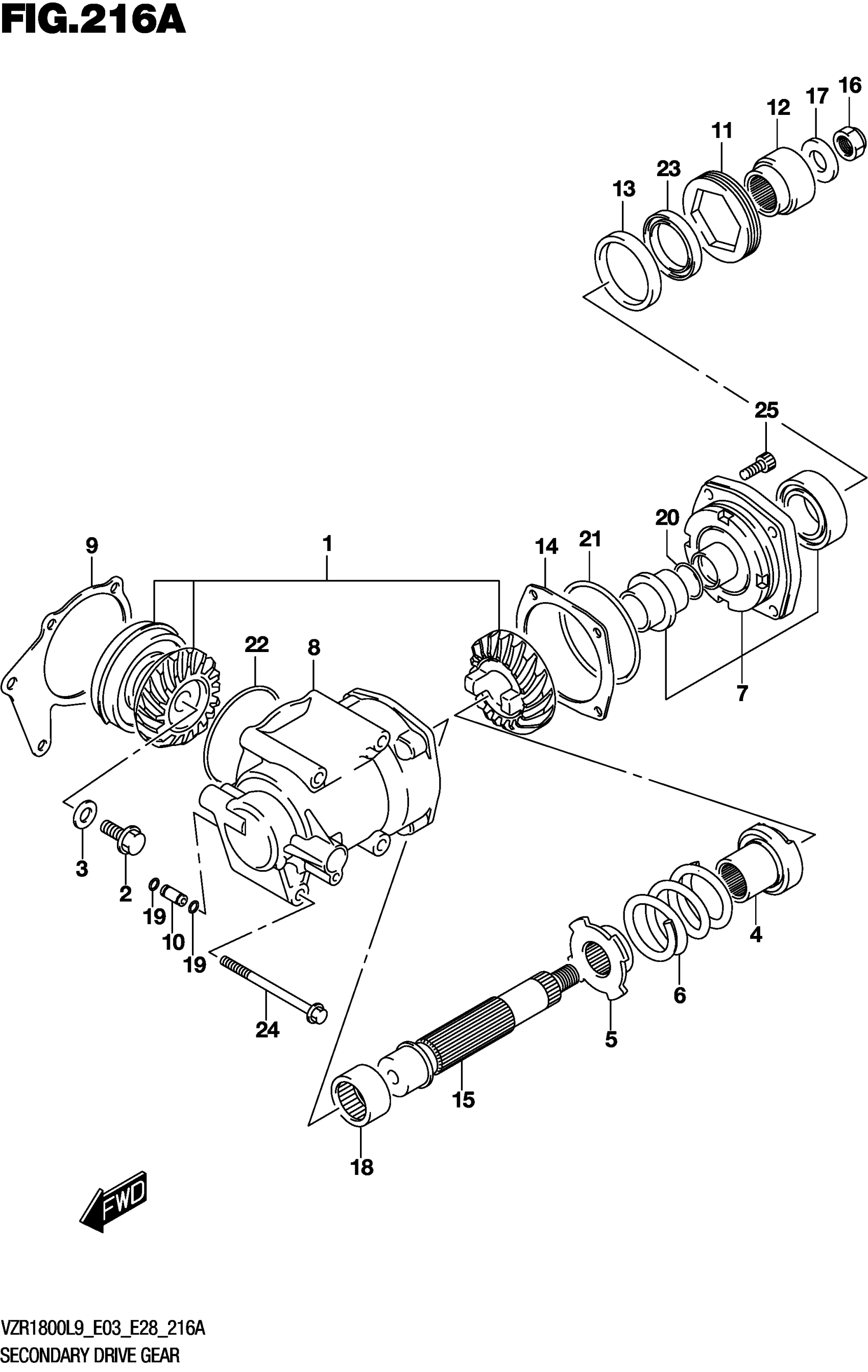

Suzuki VZR1800BZL9 (2019) SECONDARY DRIVE GEAR Diagram
