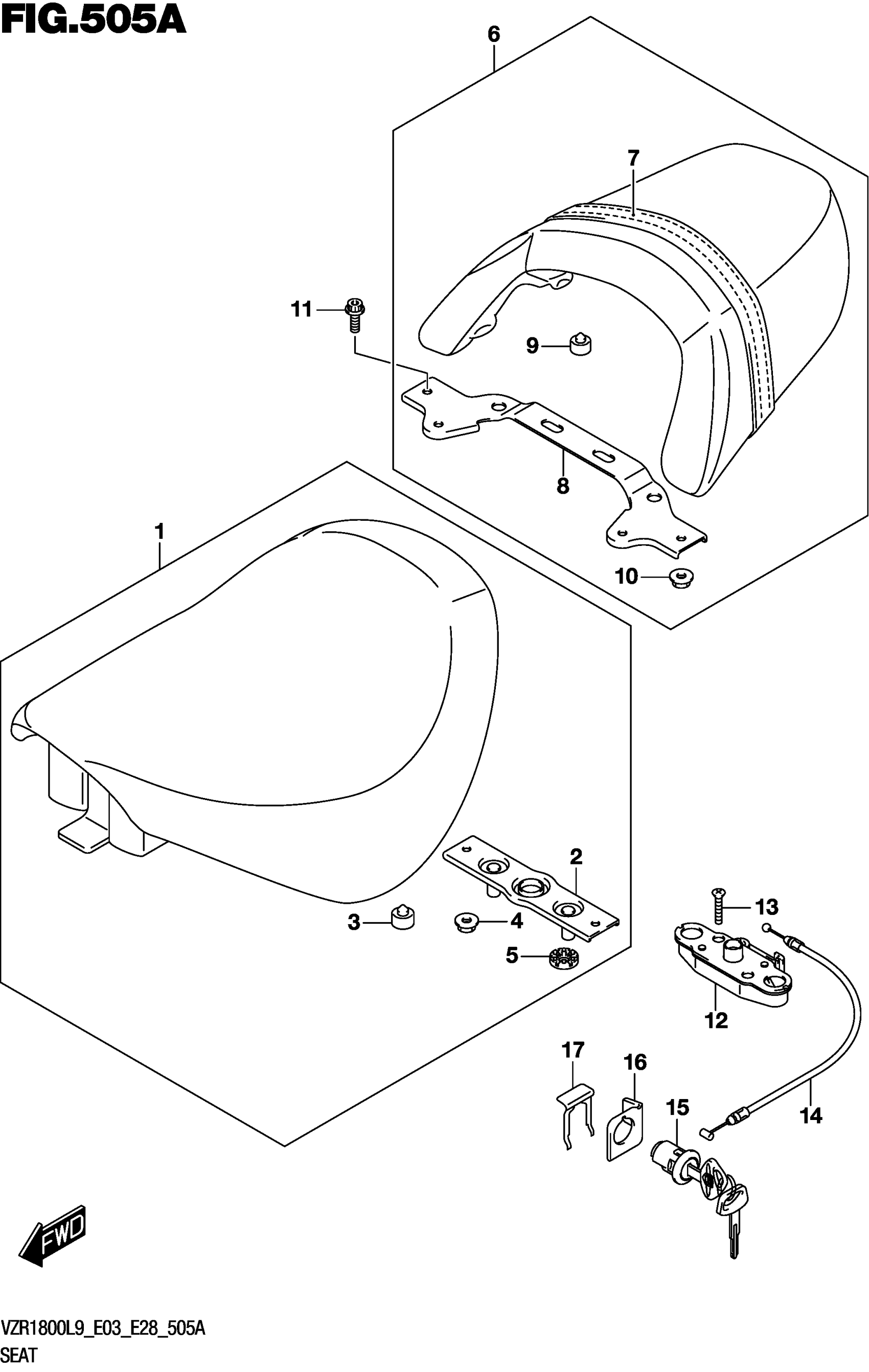

Suzuki VZR1800BZL9 (2019) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-48G01-48H.

45100-48G02-48H

$570.28

2

.STRIKER,SEAT LOCK

45290-42F02

$36.72

3

.CUSHION

09321-10011

$2.91

4

NUT

08319-3106A

$2.03

5

.CUSHION

45213-31300

$2.81

6

SEAT ASSY,PILLION (BLACK) This part replaces 45300-48G00-48H.

45300-48G01-48H

$422.40

7

BAND ASSY This part replaces 45180-48G00.

45300-48G01

Unavailable

8

.BRACKET,BAND

45315-48G00

Unavailable

9

.CUSHION

09321-10011

$2.91

10

NUT

08319-3106A

$2.03

11

BOLT

07120-0616A

$2.53

12

BRACKET,SEAT SUPPORT

45220-47H00

$138.38

13

SCREW

02122-0630A

$1.74

14

CABLE,SEAT LOCK

45280-48G00

$25.33

15

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

16

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

17

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20
