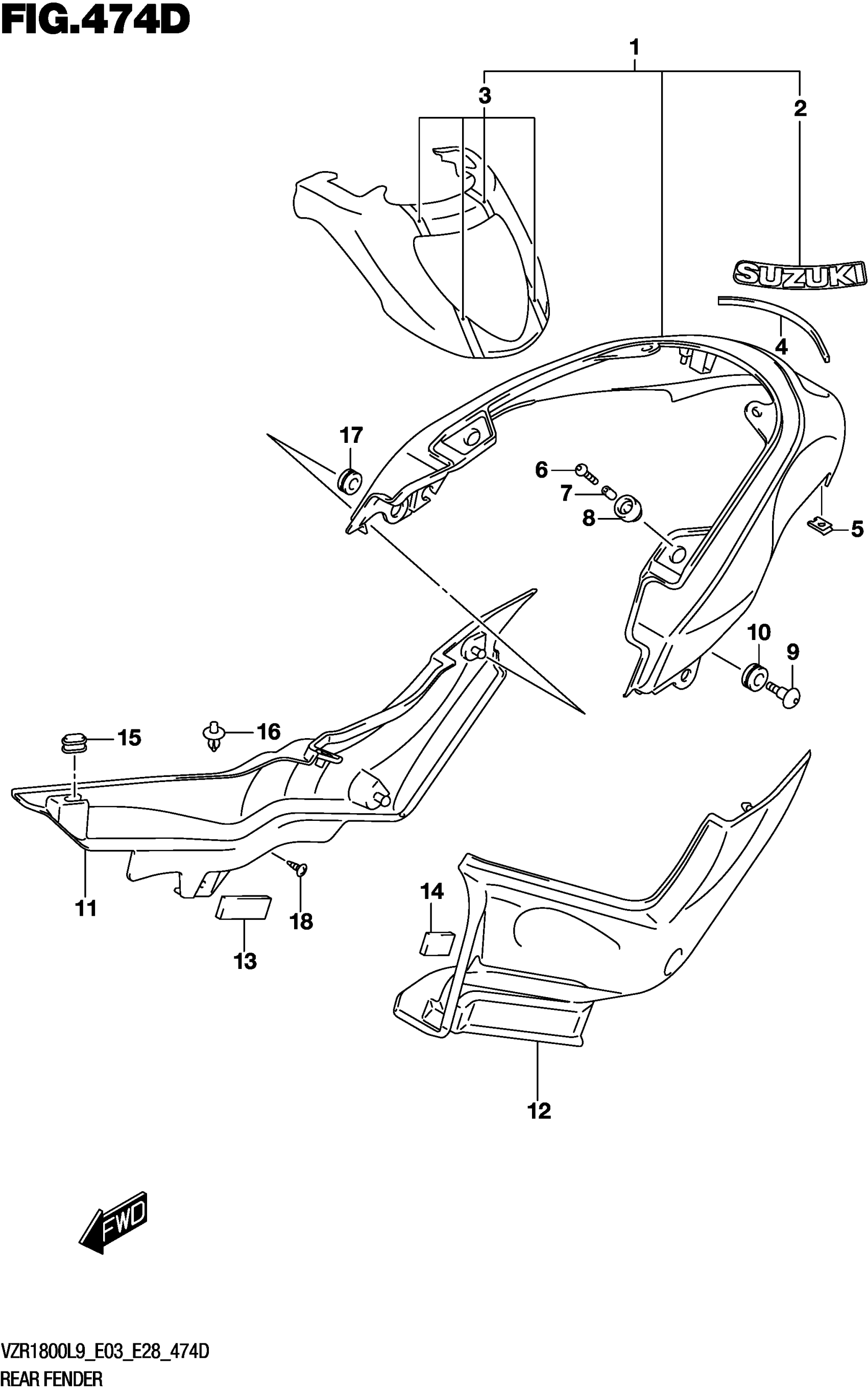

Suzuki VZR1800BZL9 (2019) REAR FENDER (VZR1800BZL9 E28) (AJP) Diagram

#

Description
Price

1

FENDER, REAR (BLUE/WHITE)

63110-48G50-AJP

$1,392.37

2

.EMBLEM, SUZUKI (BLUE/WHITE)

68161-44GA0-AJP

Unavailable

3

(BLUE/WHITE)

68170-48G50-AJP

Unavailable

3

(BLUE/WHITE)

68170-48G50-AJP

Unavailable

4

CUSHION,RR FENDER RR COVER

63117-39G00

$4.65

5

NUT COWL

94484-24F00

$4.03

6

SCREW (6X16)

09139-06139

$3.23

7

SPACER (6.5X10X9.4)

09180-06286

$2.50

8

CUSHION

09320-10045

$3.76

9

SCREW (6X20)

09139-06190

$4.17

10

CUSHION (9X18X9.5)

09320-09016

$1.97

11

COVER, FENDER RH (WHITE)

63171-48G51-YWW

$209.97

12

COVER, FENDER LH (WHITE)

63181-48G51-YWW

$190.75

13

CUSHION

15439-70G10

$4.33

14

CUSHION

47161-19C00

$3.03

15

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56

16

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

17

CUSHION (8X26X7)

09320-08028

$3.04

18

SCREW

03541-0516A

$1.49

19

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

19

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable
