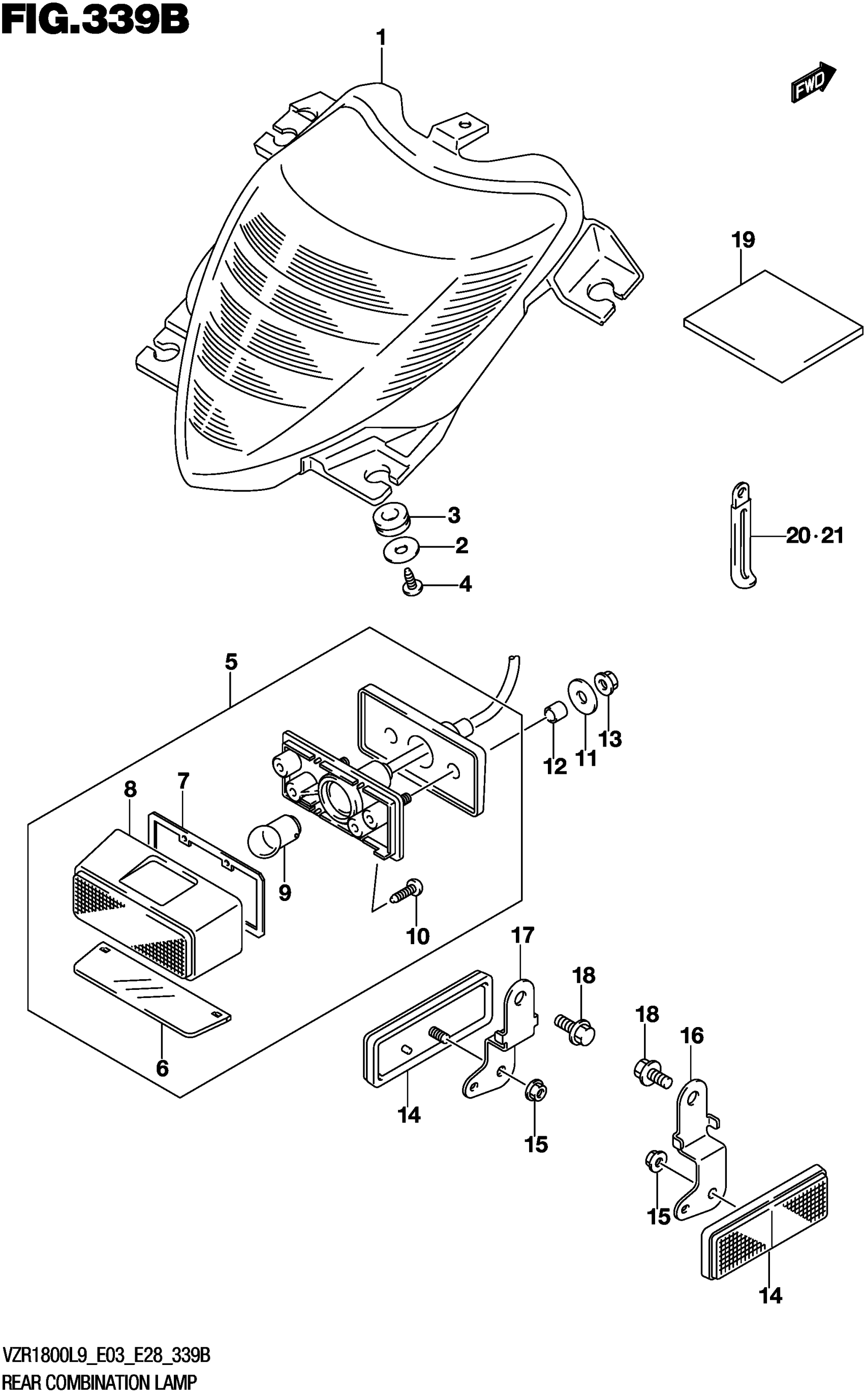

Suzuki VZR1800BZL9 (2019) REAR COMBINATION LAMP (VZR1800BZL9 E03) Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-48G70

$410.97

2

WASHER (5.5X20X1.2)

09160-05501

$1.84

3

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

4

SCREW

03541-0512A

$1.49

5

LAMP ASSY,LICENSE

35910-41G02

$73.97

6

.LENS,LICENSE LAMP

35912-41G01

$13.28

7

.GASKET

35913-41G00

$14.23

8

.COVER,LICENSE LAMP

35917-41G00

$35.32

9

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

10

.SCREW

03211-0416A

$1.49

11

WASHER (6.5X20X1.2)

09160-06077

$1.91

12

SPACER (6.5X9X8)

09180-06261

$1.91

13

NUT (6X12)

08316-1006A

$2.19

14

REFLECTOR ASSY,RR

35970-07F01

$20.88

15

NUT

08316-1005A

$2.19

16

BRACKET,REAR SIDE RR RH

35975-48G00

Unavailable

17

BRACKET,REAR SIDE RR LH

35976-48G00

$7.42

18

SCREW

02162-0612A

$2.05

19

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$5.99

20

CLAMP (L:45)

09404-06429

$1.83

21

CLAMP (L:45)

09404-10415

Unavailable
