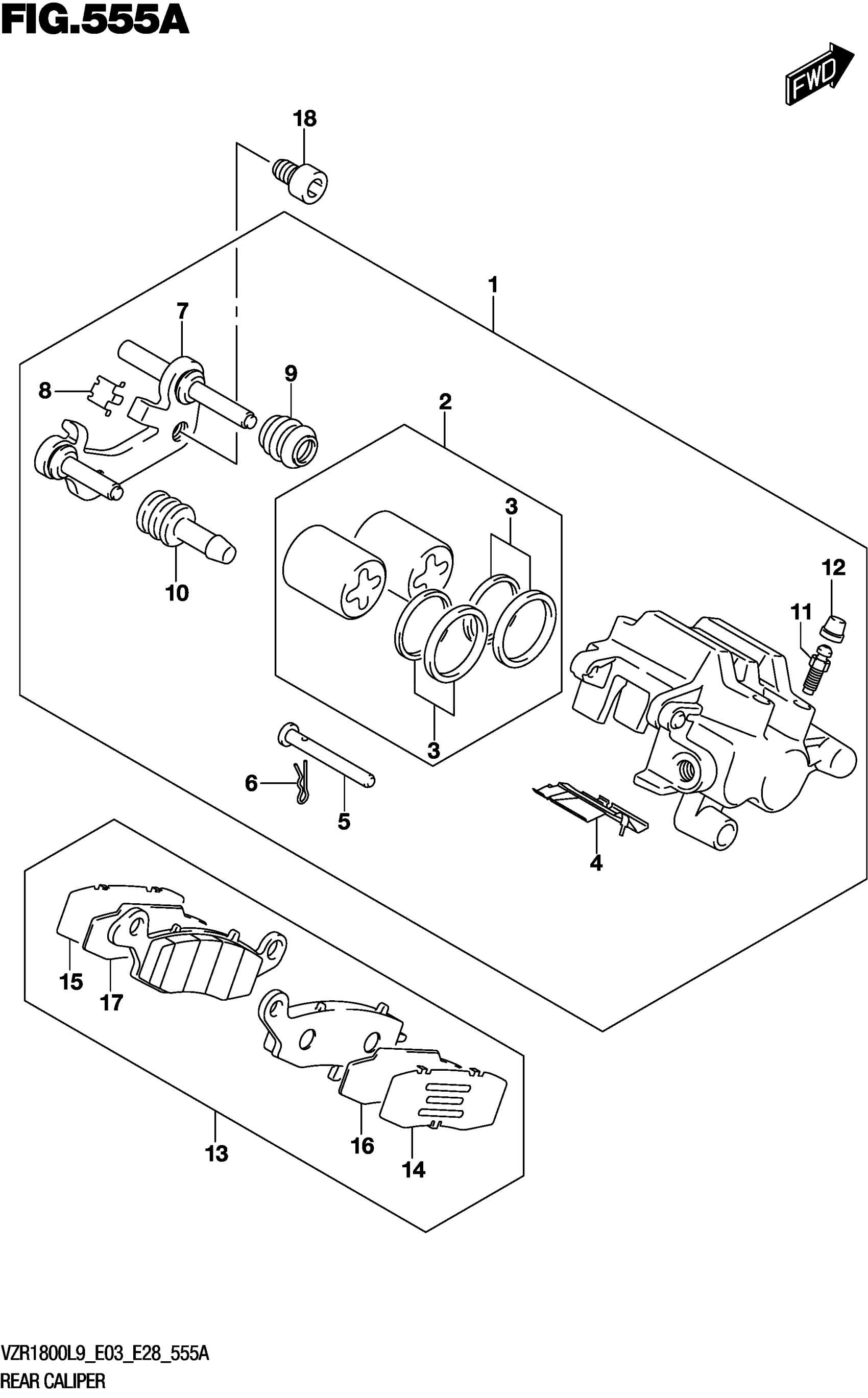

Suzuki VZR1800BZL9 (2019) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,REAR

69100-01D40-999

$395.90

2

.PISTON SET

69100-01840

$124.75

3

..SEAL SET,PISTON

59300-33841

$15.45

4

.SPRING,PAD

69115-01D40

$18.35

5

.PIN,PAD

69141-01D40

$12.48

6

.CLIP, PAD PIN

69142-45000

$4.34

7

.CARRIER,CALIPER

69150-01D40

Unavailable

8

.GUIDE, PAD

59116-33D00

$7.97

9

.BOOT,AXLE

59112-44B00

$8.91

10

.INSULATOR,AXLE

59113-01D00

$10.17

11

.BLEEDER

59121-18410

$8.73

12

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

13

PAD & SHIM SET

69100-01870

$55.06

14

.SHIM, PAD

59171-33D00

$14.85

15

.SHIM, PAD NO.2

59172-33D00

$16.78

16

.INSULATOR NO.1

69171-01D40

Unavailable

17

.INSULATOR NO.2

69172-01D40

$25.92

18

BOLT,10X20 (10X20)

09106-10093

Unavailable
