Description

Price

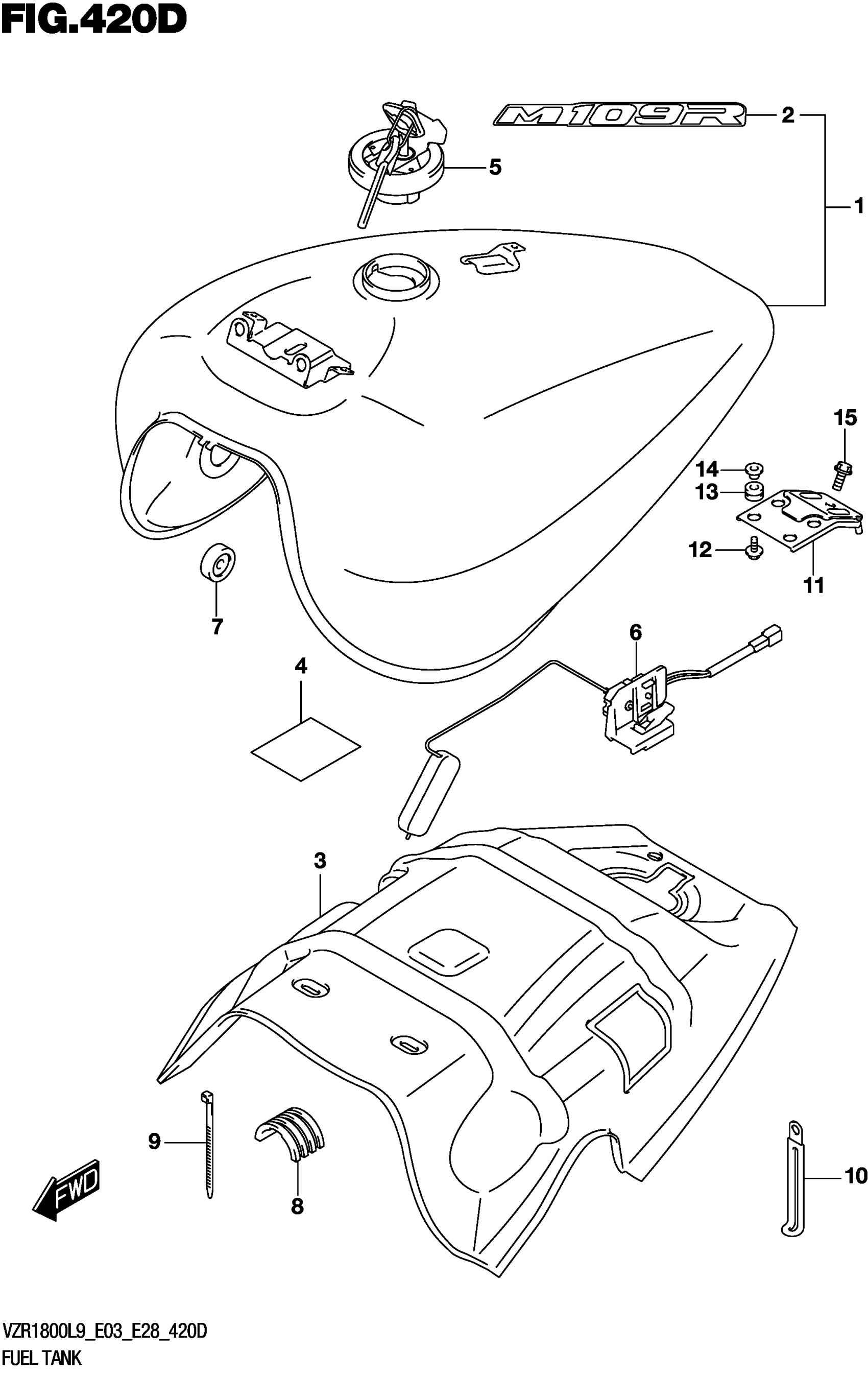

1

TANK ASSY, FUEL (WHITE)

49100-48G80-YWW

$1,675.17

2

.EMBLEM, "M109R" (BLEU)

68111-48G60-YKY

$26.42

3

SHIELD,FUEL TANK HEAT

44191-48G10

$374.17

4

TAPE,HEAT SHIELD

44192-48G00

$17.15

5

CAP SET,FUEL TA This part replaces 44200-39860.

44200-39862

$137.18

6

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$79.30

7

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$1.91

8

CUSHION, FUEL TANK

44541-13E10

$30.18

9

CLAMP (L:300)

09407-30402

$3.76

10

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.76

11

BRACKET,FUEL TANK REAR

44530-48G10

$53.13

12

BOLT (6X20)

09116-06192

$2.44

13

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

14

WASHER (6.3X17X1.6)

09169-06062

$2.50

15

BOLT (8X16) | REAR

01550-0816A

$2.31

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YKY(BLUE),YWW(WHITE)
