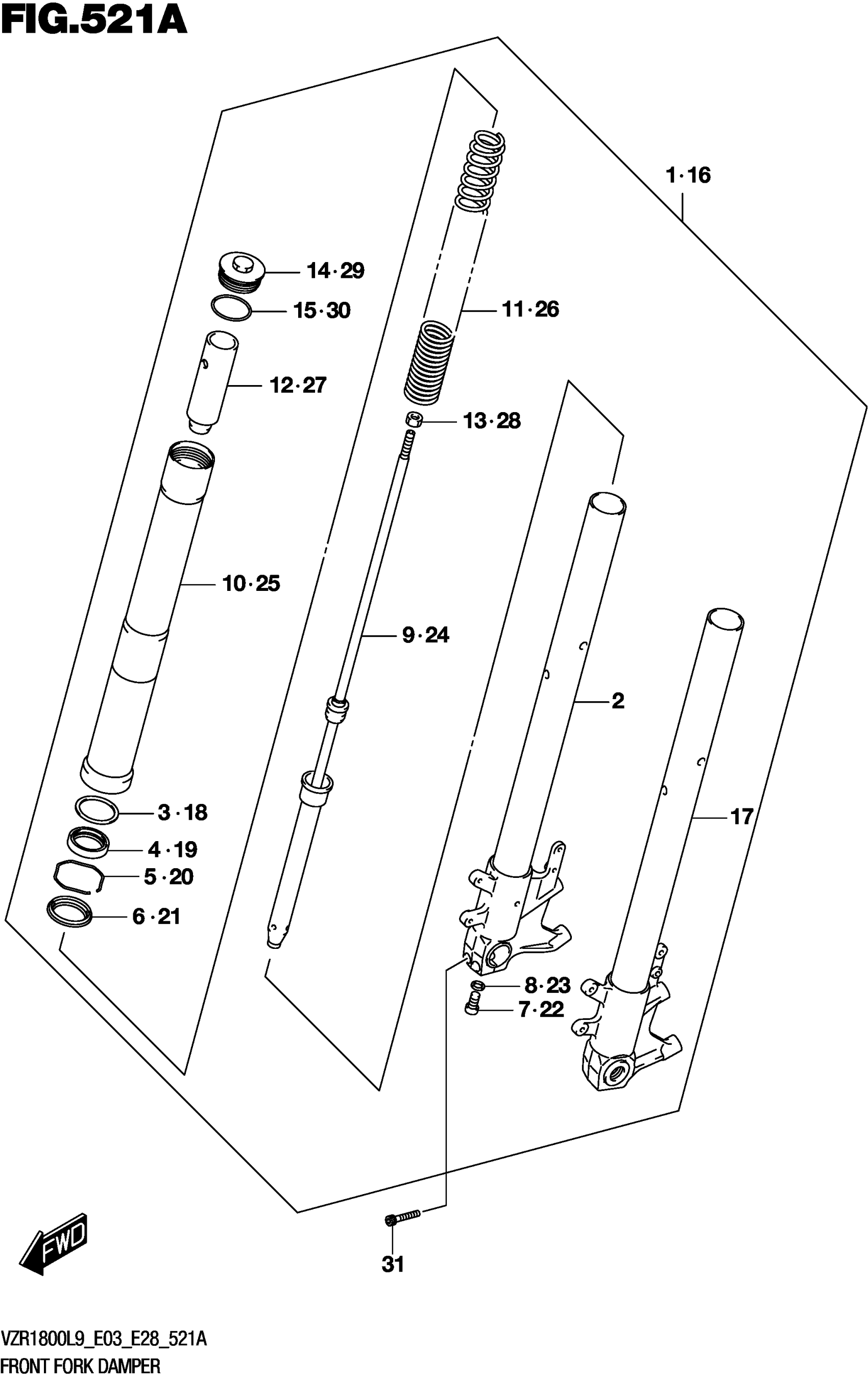

Suzuki VZR1800BZL9 (2019) FRONT FORK DAMPER (VZR1800L9 E28) Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,R This part replaces 51103-48G20.

51103-48G21

$960.30

2

.TUBE,INNER RH

51110-48G20

$912.22

3

.WASHER

51158-27C00

$6.19

4

.SEAL,OIL

51153-48G00

$25.17

5

.RING,STOPPER

51156-27C00

$5.98

6

.SEAL,DUST

51173-42F00

$26.58

7

.BOLT

51147-05H00

$5.40

8

.GASKET

51148-41310

$2.26

9

.CYLINDER

51146-48G20

Unavailable

10

.TUBE,OUTER

51130-48G00

$655.12

11

.SPRING,FRONT

51171-48G20

$108.50

12

.SPACER,SPRING

51176-21H00

$27.40

13

.NUT, ROD

51352-13A60

$3.03

14

.CAP

51351-48G10

$108.15

15

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

16

DAMPER ASSY,FR FORK,L This part replaces 51104-48G20.

51104-48G21

$1,810.60

17

.TUBE,INNER LH

51120-48G20

Unavailable

18

.WASHER

51158-27C00

$6.19

19

.SEAL,OIL

51153-48G00

$25.17

20

.RING,STOPPER

51156-27C00

$5.98

21

.SEAL,DUST

51173-42F00

$26.58

22

.BOLT

51147-05H00

$5.40

23

.GASKET

51148-41310

$2.26

24

.CYLINDER

51146-48G20

Unavailable

25

.TUBE,OUTER

51130-48G00

$655.12

26

.SPRING,FRONT

51171-48G20

$108.50

27

.SPACER,SPRING

51176-21H00

$27.40

28

.NUT, ROD

51352-13A60

$3.03

29

.CAP

51351-48G10

$108.15

30

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

31

BOLT,HOLDER HANDLE UPPER

51328-39G20

$11.77
