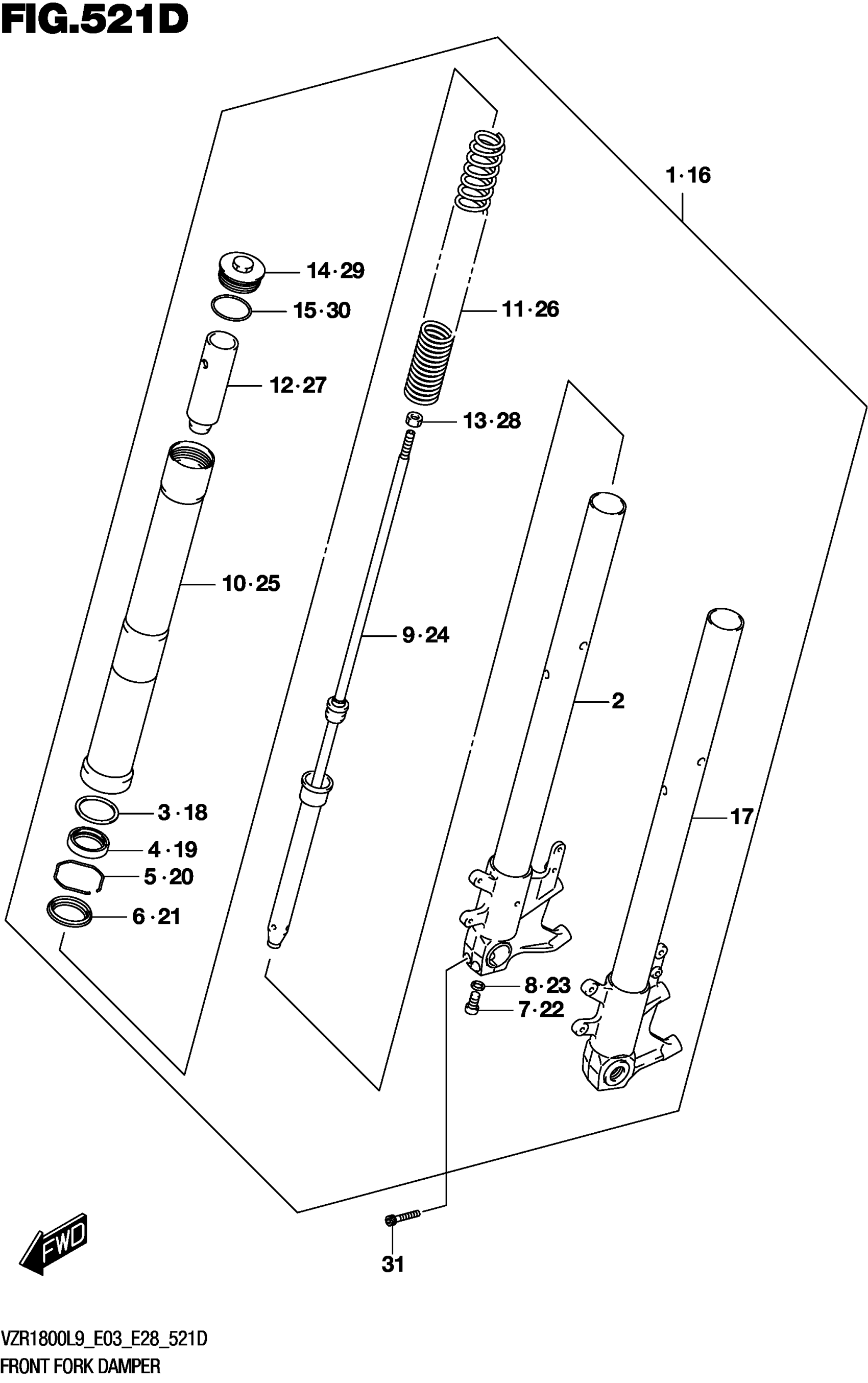

Suzuki VZR1800BZL9 (2019) FRONT FORK DAMPER (VZR1800BZL9 E33) Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,RH This part replaces 51103-48G30.

51103-48G31

$1,567.10

2

.TUBE,INNER RH

51110-48G30

$948.58

3

.WASHER

51158-27C00

$5.67

4

.SEAL,OIL

51153-48G00

$23.04

5

.RING,STOPPER

51156-27C00

$5.47

6

.SEAL,DUST

51173-42F00

$24.34

7

.BOLT

51147-05H00

$6.10

8

.GASKET

51148-41310

$2.14

9

.CYLINDER

51146-48G20

Unavailable

10

.TUBE,OUTER

51130-48G30

Unavailable

11

.SPRING,FRONT

51171-48G20

$122.46

12

.SPACER,SPRING

51176-21H00

$30.92

13

.NUT, ROD

51352-13A60

$3.42

14

.CAP

51351-48G30

Unavailable

15

..O RING This part replaces 51117-48G00.

51117-48G01

$2.88

16

DAMPER ASSY,FR FORK,L This part replaces 51104-48G30.

51104-48G31

$1,692.47

17

.TUBE,INNER LH

51120-48G30

$948.58

18

.WASHER

51158-27C00

$5.67

19

.SEAL,OIL

51153-48G00

$23.04

20

.RING,STOPPER

51156-27C00

$5.47

21

.SEAL,DUST

51173-42F00

$24.34

22

.BOLT

51147-05H00

$6.10

23

.GASKET

51148-41310

$2.14

24

.CYLINDER

51146-48G20

Unavailable

25

.TUBE,OUTER

51130-48G30

Unavailable

26

.SPRING,FRONT

51171-48G20

$122.46

27

.SPACER,SPRING

51176-21H00

$30.92

28

.NUT, ROD

51352-13A60

$3.42

29

.CAP

51351-48G30

Unavailable

30

..O RING This part replaces 51117-48G00.

51117-48G01

$2.88

31

BOLT,HOLDER HANDLE UPPER

51328-39G20

$13.27
