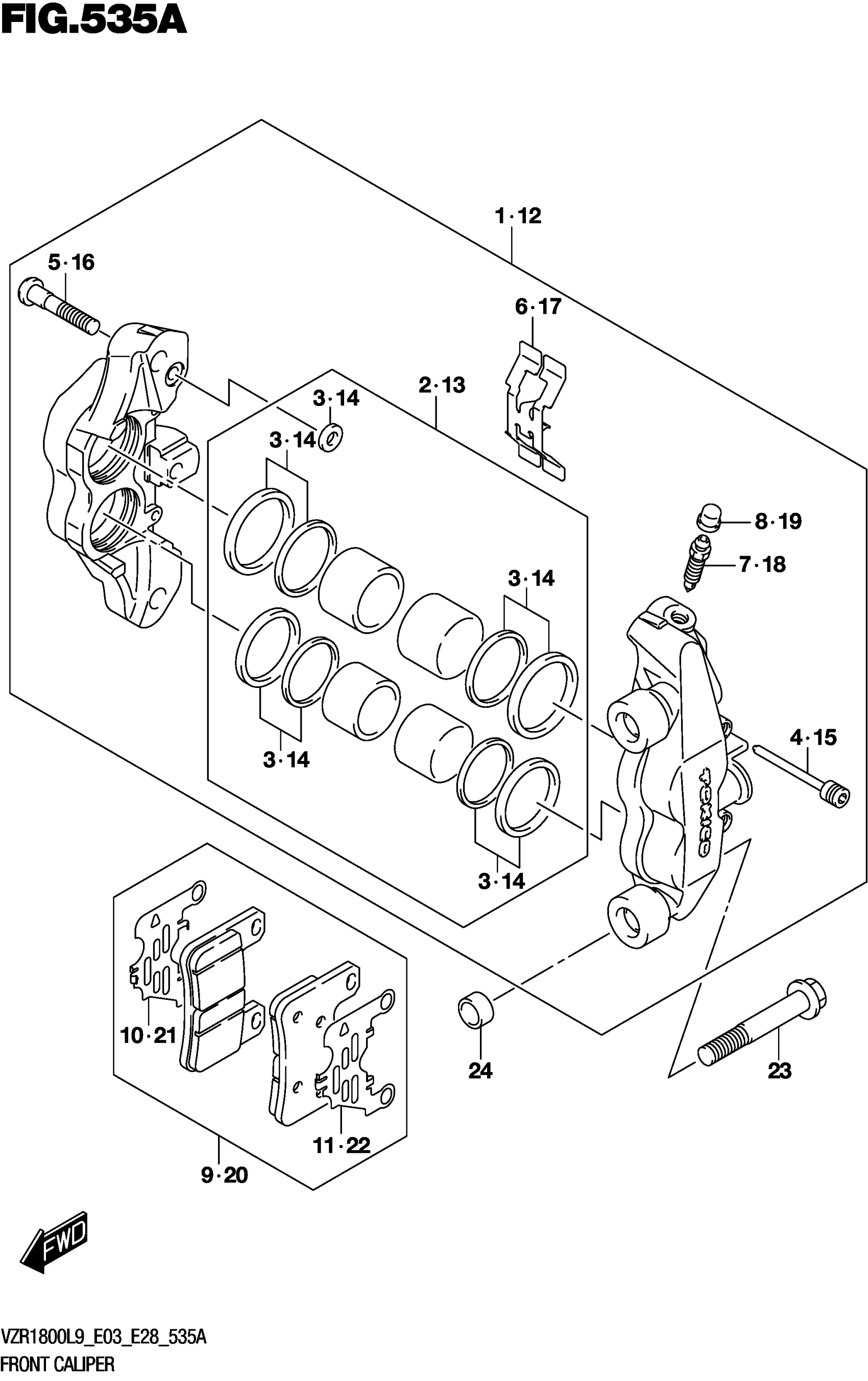

Suzuki VZR1800BZL9 (2019) FRONT CALIPER (VZR1800L9 E28) Diagram

#

Description
Price

1

CALIPER ASSY,FRONT RH

59100-41G10-999

Unavailable

2

.PISTON SET

59100-35870

$121.80

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$35.86

4

.PIN

59141-41G10

$24.71

5

.BOLT

59145-18G00

$11.20

6

.SPRING,PAD

59151-29G00

$11.75

7

.BLEEDER

59121-18410

$7.99

8

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.73

9

PAD & SHIM SET

59100-29850

$41.93

10

.SHIM,PAD A

59171-41G00

$17.40

11

.SHIM,PAD B

59172-41G00

$17.40

12

CALIPER ASSY,FRONT LH

59300-41G10-999

$584.22

13

.PISTON SET

59100-35870

$121.80

14

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$35.86

15

.PIN

59141-41G10

$24.71

16

.BOLT

59145-18G00

$11.20

17

.SPRING,PAD

59151-29G00

$11.75

18

.BLEEDER

59121-18410

$7.99

19

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$4.73

20

PAD & SHIM SET

59100-29850

$41.93

21

.SHIM,PAD A

59171-41G00

$17.40

22

.SHIM,PAD B

59172-41G00

$17.40

23

BOLT (10X70)

09103-10392

$4.42

24

PIN,CALIPER

59151-41G00

$10.96
