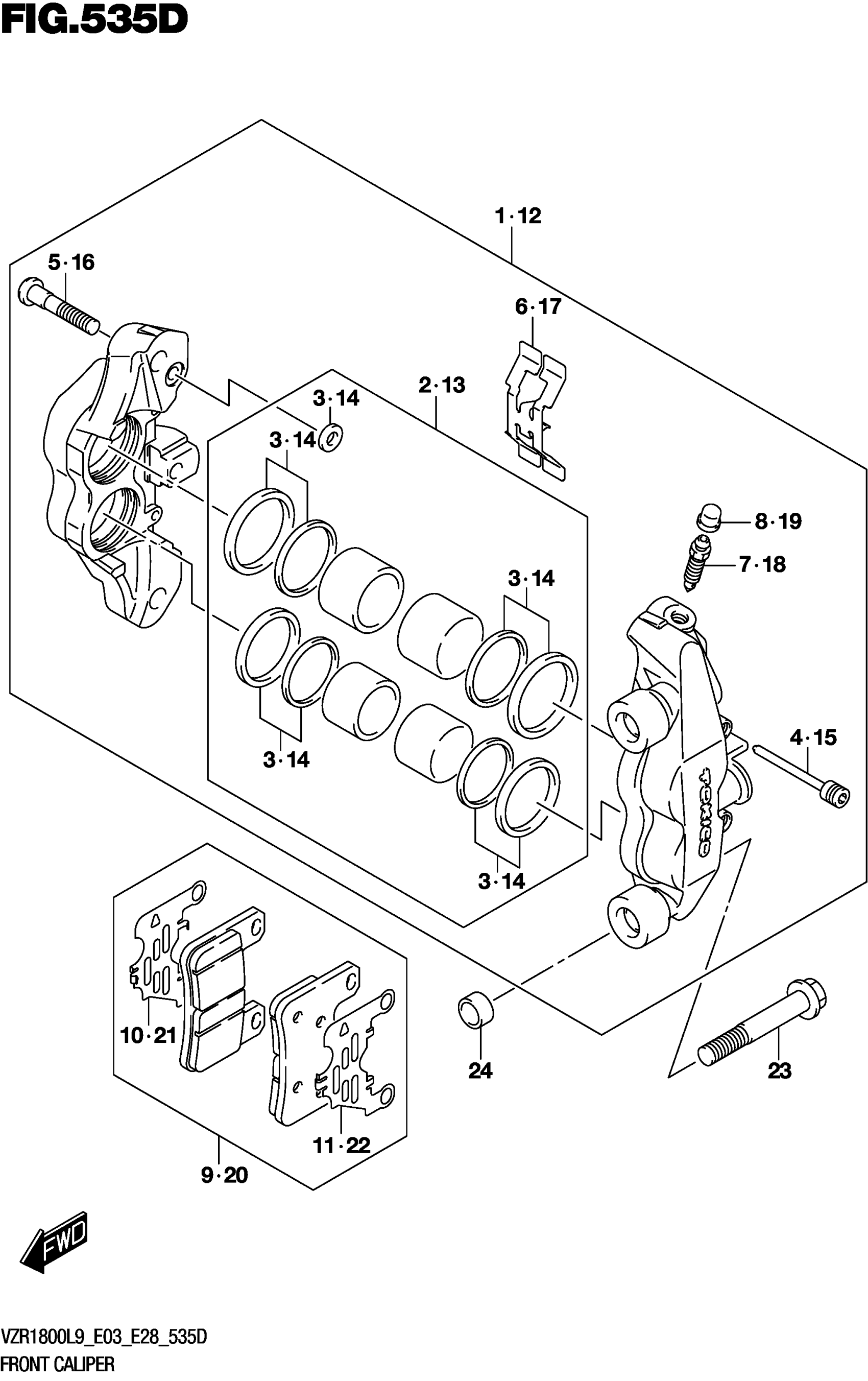

Suzuki VZR1800BZL9 (2019) FRONT CALIPER (VZR1800BZL9 E33) Diagram

#

Description
Price

1

CALIPER ASSY,FRONT RH

59100-41G40-999

$621.97

2

.PISTON SET

59100-35870

$109.45

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$42.60

4

.PIN

59141-41G10

$26.99

5

.BOLT

59145-18G00

$9.92

6

.SPRING,PAD

59151-29G00

$12.48

7

.BLEEDER

59121-18410

$8.73

8

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

9

PAD & SHIM SET

59100-29850

$47.16

10

.SHIM,PAD A

59171-41G00

$15.42

11

.SHIM,PAD B

59172-41G00

$15.42

12

CALIPER ASSY,FRONT LH

59300-41G40-999

$621.97

13

.PISTON SET

59100-35870

$109.45

14

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

$42.60

15

.PIN

59141-41G10

$26.99

16

.BOLT

59145-18G00

$9.92

17

.SPRING,PAD

59151-29G00

$12.48

18

.BLEEDER

59121-18410

$8.73

19

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

20

PAD & SHIM SET

59100-29850

$47.16

21

.SHIM,PAD A

59171-41G00

$15.42

22

.SHIM,PAD B

59172-41G00

$15.42

23

BOLT (10X70)

09103-10392

$4.90

24

PIN,CALIPER

59151-41G00

$11.64
