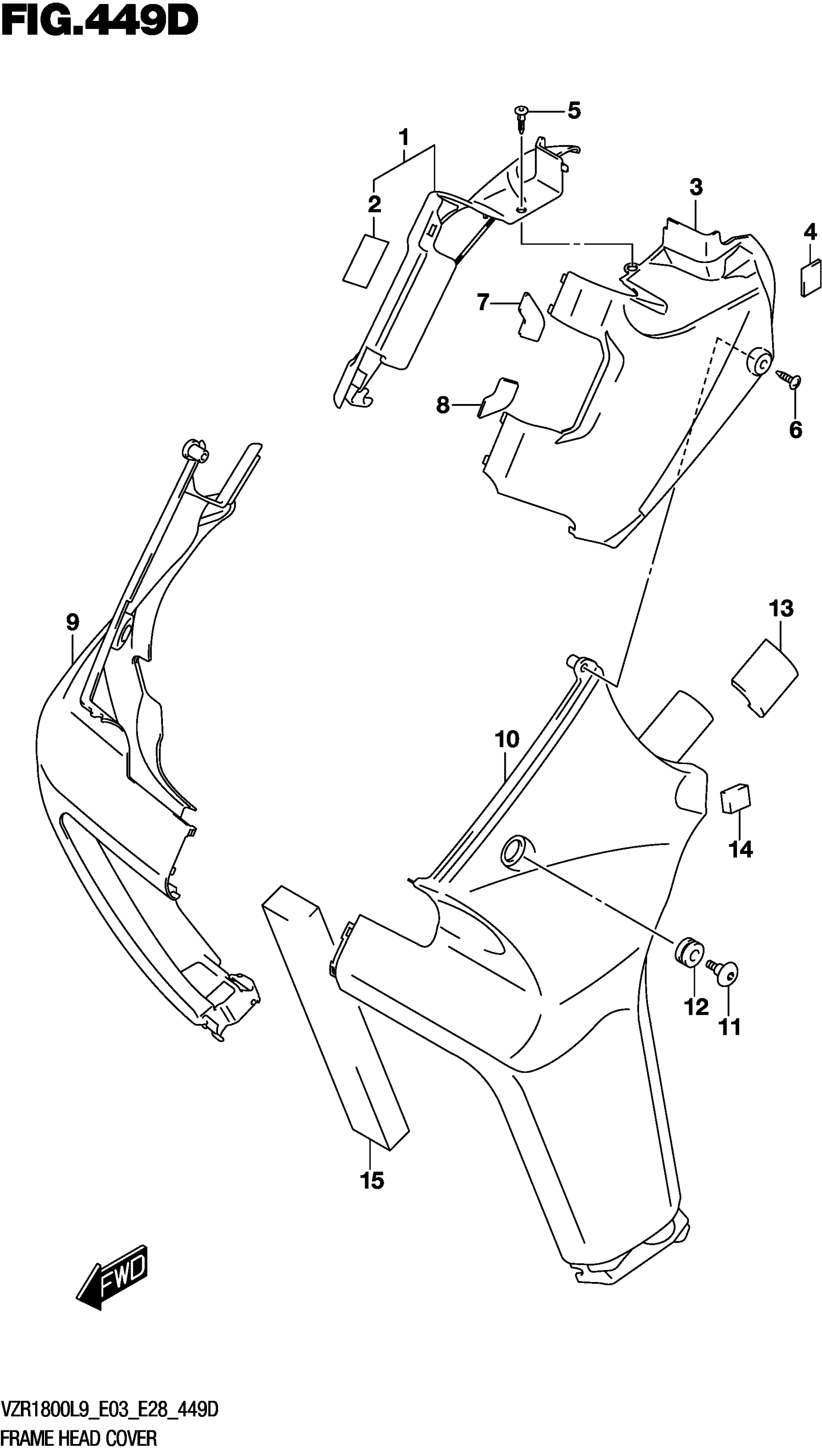

Suzuki VZR1800BZL9 (2019) FRAME HEAD COVER (VZR1800BZL9 E33) Diagram

#

Description
Price

1-1

COVER, FRAME HEAD RH (WHITE) | FOR AJP

47350-48G50-YWW

$239.85

1-2

COVER,FRAME HEAD RH (RED) | FOR AV4

47350-48G50-YYG

$237.57

2

.PROTECTOR (35X60)

89445-61J00

$11.18

3-1

COVER, FRAME HEAD LH (WHITE) | FOR AJP

47361-48G50-YWW

$257.85

3-2

COVER,FRAME HEAD LH (RED) | FOR AV4

47361-48G50-YYG

$257.85

4

CUSHION,RDTR COVER INNER

17798-39G00

$6.12

5

CLIP

09409-06328

$2.92

6

SCREW

03541-0516A

$1.37

7

TAPE,HEAD COVER UPPER

47352-48G00

Unavailable

8

TAPE,HEAD COVER LOWER

47353-48G01

Unavailable

9-1

COVER, FRAME BODY RH (WHITE) | FOR AJP

47551-48G50-YWW

$321.02

9-2

COVER,FRAME BODY UP RH (RED) | FOR AV4

47551-48G50-YYG

$321.02

10-1

COVER, FRAME BODY LH (WHITE) | FOR AJP

47561-48G50-YWW

$260.13

10-2

COVER,FRAME BODY UP LH (RED) | FOR AV4

47561-48G50-YYG

$349.88

11

SCREW (6X20)

09139-06126

$3.65

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

CUSHION, RESERVOIR TANK

63191-25C00

$2.88

14

CUSHION,RDTR COVER INNER

17798-39G00

$6.12

15

CUSHION,FRAME BODY COVER RH

47552-48G00

$23.15

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AV4=YYG(RED),YVB(BLACK)

SPECIAL NOTE

Unavailable
