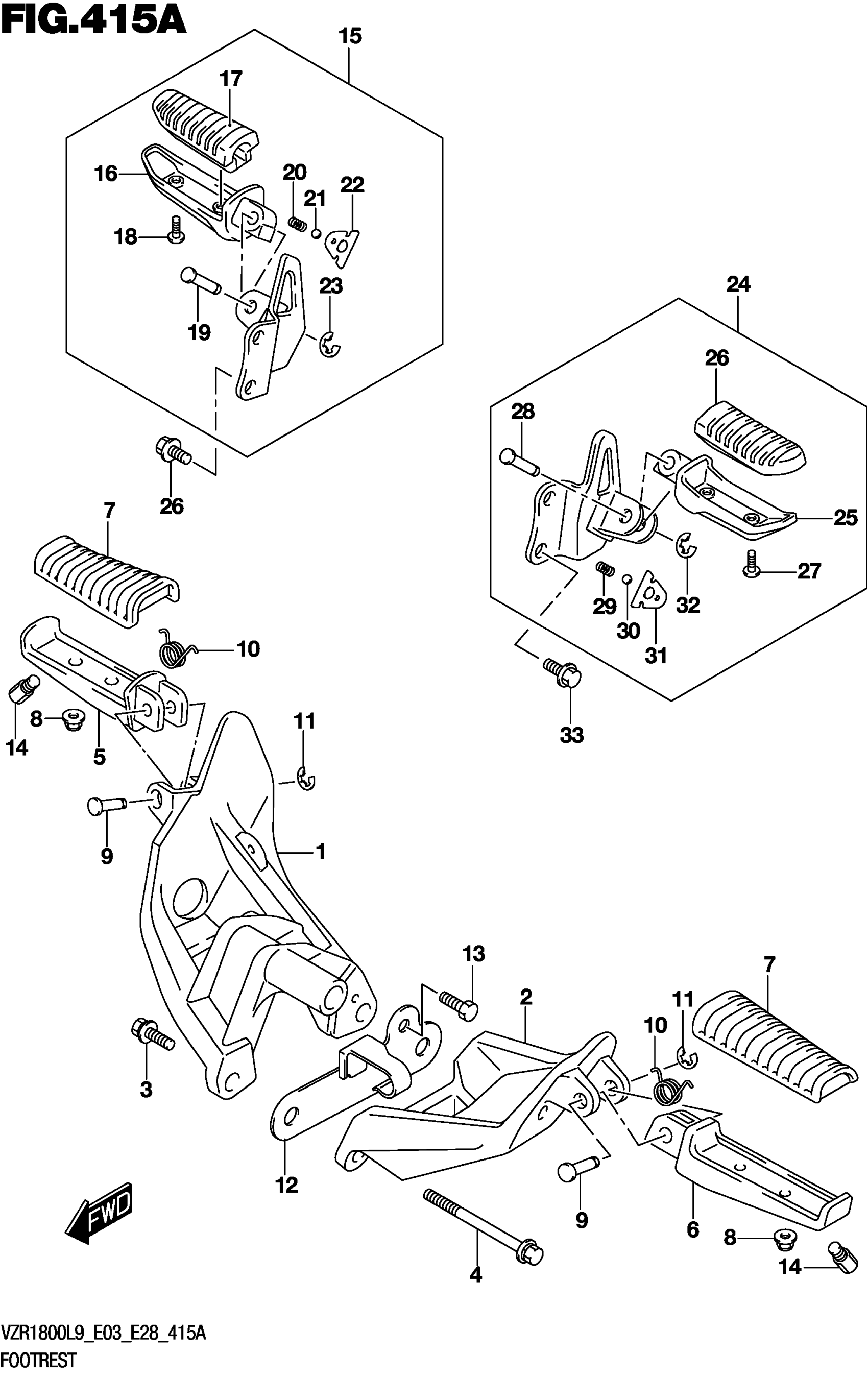

Suzuki VZR1800BZL9 (2019) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH

43511-48G10

$243.23

2

BRACKET,FR FOOTREST LH

43521-48G01

$429.45

3

BOLT (10X28)

09103-10268

$5.52

4

BOLT (10X85) | LH

09103-10337

$6.53

5

BAR,FRONT FOOTREST RH

43531-48G01

$47.17

6

BAR,FRONT FOOTREST LH

43541-48G01

$39.11

7

RUBBER,FR FOOTREST

43550-48G00

$30.05

8

.NUT

08319-2106A

$1.91

9

PIN

09208-08019

$2.79

10

SPRING

09448-14047

$4.19

11

E-RING

08332-1106A

$1.49

12

PLATE,FOOTREST BRACKET

43560-48G00

$31.70

13

BOLT

01500-0612A

$1.78

14

.BOLT,BANK SENSOR

43576-07D01

$8.85

15

FOOTREST ASSY,PILLION RH

43600-48G00

$175.92

16

.BAR,PILLION FOOTREST RH

43611-44G00

$54.83

17

.RUBBER,FOOTREST

43550-44G00

$35.55

18

.SCREW

02142-05127

$1.97

19

PIN

09208-08017

$3.37

20

SPRING

09440-05005

$1.58

21

BALL

06111-07004

$1.49

22

.PLATE,PILLION RH

43816-44G00

$5.88

23

E-RING

08332-1106A

$1.49

24

FOOTREST ASSY,PILLION LH

43700-48G00

$175.92

25

.BAR,PILLION FOOTREST LH

43621-44G00

$54.83

26

.RUBBER,FOOTREST

43550-44G00

$35.55

27

.SCREW

02142-05127

$1.97

28

PIN

09208-08017

$3.37

29

SPRING

09440-05005

$1.58

30

BALL

06111-07004

$1.49

31

.PLATE,PILLION RH

43816-44G00

$5.88

32

E-RING

08332-1106A

$1.49

33

BOLT (8X16)

09103-08412

$3.03
