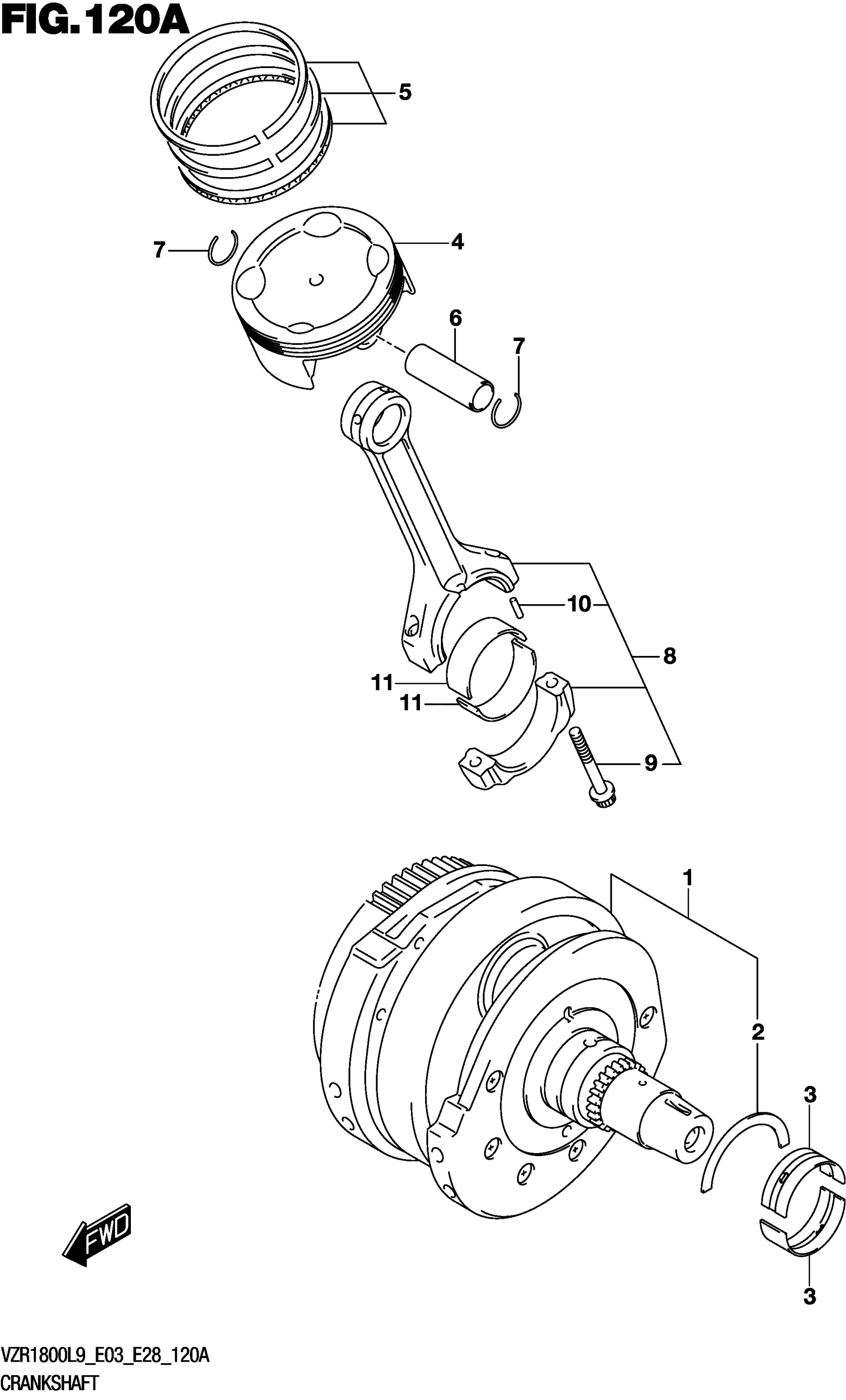

Suzuki VZR1800BZL9 (2019) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET (NT:55)

12000-48841

$2,074.18

2-1

.WASHER,CRANK THRUST

12228-48G00-0A0

$13.28

2-2

.WASHER,CRANK THRUST

12228-48G00-0B0

Unavailable

2-3

.WASHER,CRANK THRUST

12228-48G00-0C0

$13.28

2-4

.WASHER,CRANK THRUST

12228-48G00-0D0

Unavailable

2-5

.WASHER,CRANK THRUST

12228-48G00-0E0

$13.28

2-6

.WASHER,CRANK THRUST

12228-48G00-0F0

Unavailable

3-1

BEARING,CRANKSHAFT

12229-48G10-0A0

$28.85

3-2

BEARING,CRANKSHAFT

12229-48G10-0B0

$28.85

3-3

BEARING,CRANKSHAFT

12229-48G10-0C0

$27.80

3-4

BEARING,CRANKSHAFT

12229-48G10-0D0

$28.85

3-5

BEARING,CRANKSHAFT

12229-48G10-0E0

$28.85

4

PISTON

12111-48G00-0F0

$332.00

5

RING SET,PISTON

12140-48G00

$132.73

6

PIN,PISTON

12151-48G00

$29.82

7

CIRCLIP

09381-23003

$1.49

8

CONNROD ASSY

12160-48G00

$273.45

9

.BOLT,CONNROD

12163-06G00

$20.85

10

PIN (4X13.8)

04221-04089

$1.49

11-1

BEARING,CRANK PIN

12164-48G00-0A0

$22.10

11-2

BEARING,CRANK PIN

12164-48G00-0B0

$21.67

11-3

BEARING,CRANK PIN

12164-48G00-0C0

$21.67

11-4

BEARING,CRANK PIN

12164-48G00-0D0

$22.10
