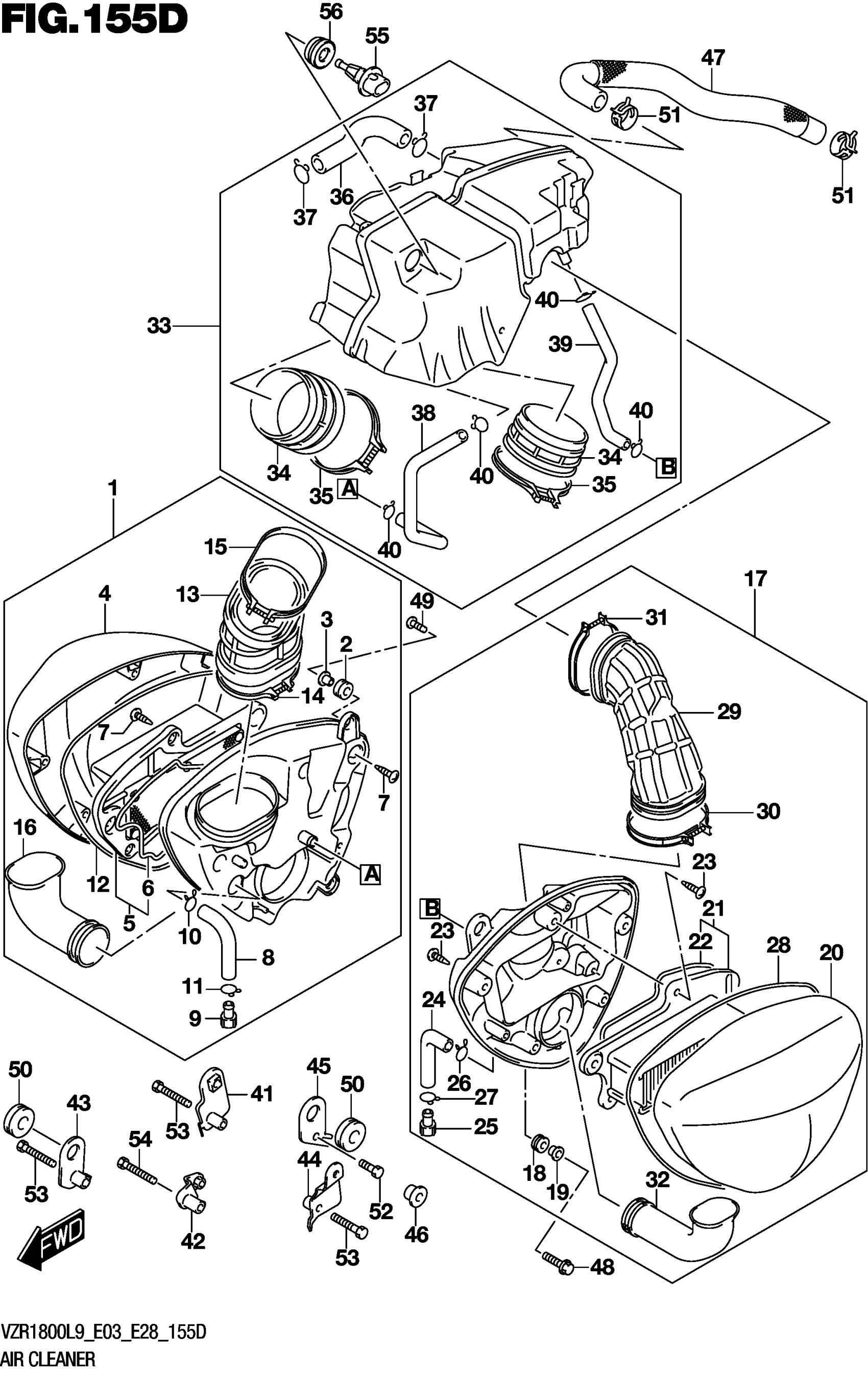

Suzuki VZR1800BZL9 (2019) AIR CLEANER (VZR1800BZL9 E33) Diagram

#

Description
Price

1

CLEANER,AIR,R This part replaces 13701-48G40.

13701-48G41

$469.68

2

CUSHION (9X18X9.5)

09320-09016

$1.97

3

.COLLAR,CLEANER CASE

13812-29C50

$3.05

4

.CAP,AIR CLEANER

13741-48G40

$227.88

5

.FILTER,AIR CLEANER

13780-48G20

$58.02

6

..GASKET,FILTER

13747-48G00

$16.10

7

.SCREW

03111-0516A

$1.85

8

.TUBE This part replaces 13873-48G00.

13873-48G01

$19.43

9

..PLUG

13877-00190

$6.00

10

.CLIP

09401-14301

$2.17

11

CLIP (ID:15.5)

09401-15101

$2.28

12

.GASKET,CASE

13746-48G00

$19.23

13

.TUBE,JOINT RH

13739-48G00

$88.87

14

.CLAMP

13826-48G00

$23.93

15

.CLAMP This part replaces 13827-48G00.

13827-22H00

$24.83

16

.TUBE,INLET

13891-48G20

Unavailable

17

CLEANER,AIR,L This part replaces 13702-48G40.

13702-48G41

$370.17

18

CUSHION (9X18X9.5)

09320-09016

$1.97

19

.COLLAR,CLEANER CASE

13812-29C50

$3.05

20

.CAP,AIR CLEANER

13741-48G40

$227.88

21

.FILTER,AIR CLEANER

13780-48G20

$58.02

22

..GASKET,FILTER

13747-48G00

$16.10

23

.SCREW

03111-0516A

$1.85

24

.TUBE This part replaces 13873-48G00.

13873-48G01

$19.43

25

..PLUG

13877-00190

$6.00

26

.CLIP

09401-14301

$2.17

27

CLIP (ID:15.5)

09401-15101

$2.28

28

.GASKET,CASE

13746-48G00

$19.23

29

.TUBE,JOINT LH

13739-48G10

$88.87

30

.CLAMP

13826-48G00

$23.93

31

.CLAMP This part replaces 13827-48G00.

13827-22H00

$24.83

32

.TUBE,INLET

13891-48G20

Unavailable

33

CHAMBER,AIR CLEANER This part replaces 13710-48G30.

13710-48G31

$267.38

34

.TUBE,OUTLET

13881-48G00

$33.12

35

CLAMP

13826-22H00

$5.23

36

.HOSE This part replaces 13865-48G00.

13865-48G01

$24.37

37

CLIP (ID:15.5)

09401-15101

$2.28

38

.TUBE,DRAIN This part replaces 13871-48G00.

13871-48G01

$28.47

39

.TUBE,DRAIN This part replaces 13871-48G10.

13871-48G11

$27.95

40

CLIP (ID:13.5)

09401-13409

$2.13

41

BRACKET,AIR CLNR NO.1

13760-48G00

$39.33

42

BRACKET,AIR CLNR NO.2

13760-48G10

$27.13

43

BRACKET,AIR CLNR NO.3

13760-48G20

$17.53

44

BRACKET,AIR CLNR NO.4

13770-48G00

$31.90

45

BRACKET,AIR CLNR NO.5

13770-48G10

$5.52

46

SPACER,AIR CLEANER LH

13838-48G10

$9.70

47

TUBE,BREATHER

13850-48G10

$77.22

48

BOLT (6X35)

09139-06154

$4.92

49

BOLT (6X20)

09139-06155

$4.03

50

CUSHION (8X26X7)

09320-08028

$2.80

51

CLIP

09401-20405

$4.43

52

BOLT

01500-0612A

$1.80

53

BOLT

01500-0625A

$1.77

54

BOLT (6X35)

09139-06154

$4.92

55

SENSOR,INLET AIR TEMP

13650-52G00

$93.45

56

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

$4.33
