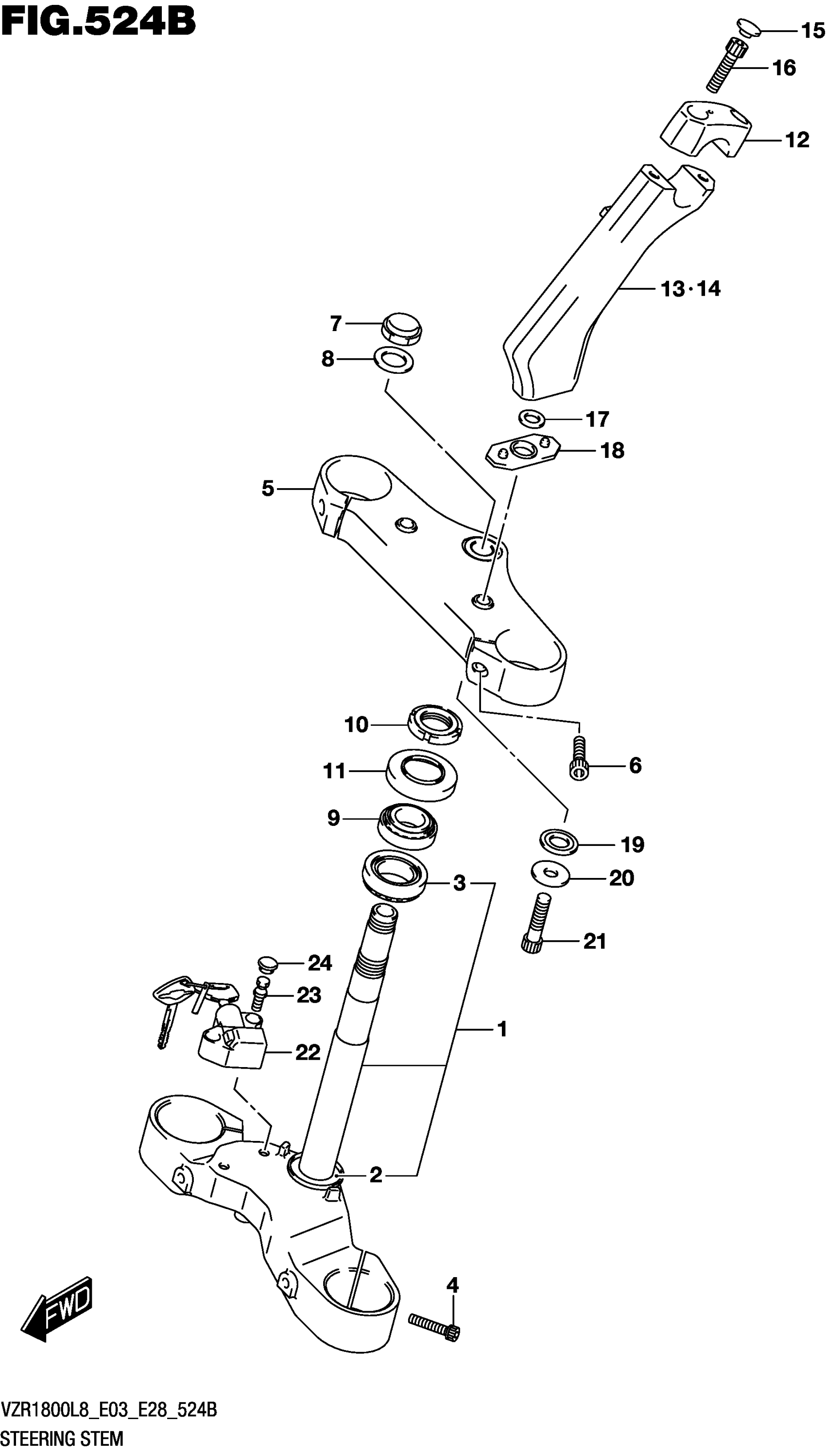

Suzuki VZR1800BZL8 (2018) STEERING STEM (VZR1800BZL8 E03) Diagram

#

Description
Price

1

BRACKET,UNDER

51410-48G30

$1,020.18

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

3

.BEARING (30X55X17)

09265-30020

$44.41

4

BOLT (8X40)

51328-44G10

$5.58

5

BRACKET,UPPER

51311-48G30

Unavailable

6

BOLT

51321-44G00

$5.55

7

NUT,CAP

51353-24B00

$30.67

8

WASHER

51356-48G30

Unavailable

9

BEARING (25X47X15)

09265-25038

$45.57

10

NUT,STEERING STEM

51631-31F00

$19.87

11

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

12

HOLDER,HANDLE

56211-48G30

$156.58

13

HOLDER,HANDLE RH

56224-48G30

$343.75

14

HOLDER,HANDLE LH

56225-48G30

$343.75

15

CAP (OD:14.5)

09250-06004

$1.49

16

BOLT (8X40)

51328-44G10

$5.58

17

WASHER

51354-48G00

$5.99

18

RUBBER,HANDLE HOLDER

56245-48G00

$9.42

19

RUBBER,HANDLE LOWER

56245-39G20

$9.42

20

WASHER

51355-48G00

$9.67

21

BOLT

51226-48G00

$20.23

22

LOCK SET,STEERING

51900-48810

$175.18

23

SCREW,STEERING LOCK

51925-48G00

$8.05

24

PLUG,STEERING LOCK

51926-48G00

$4.68
