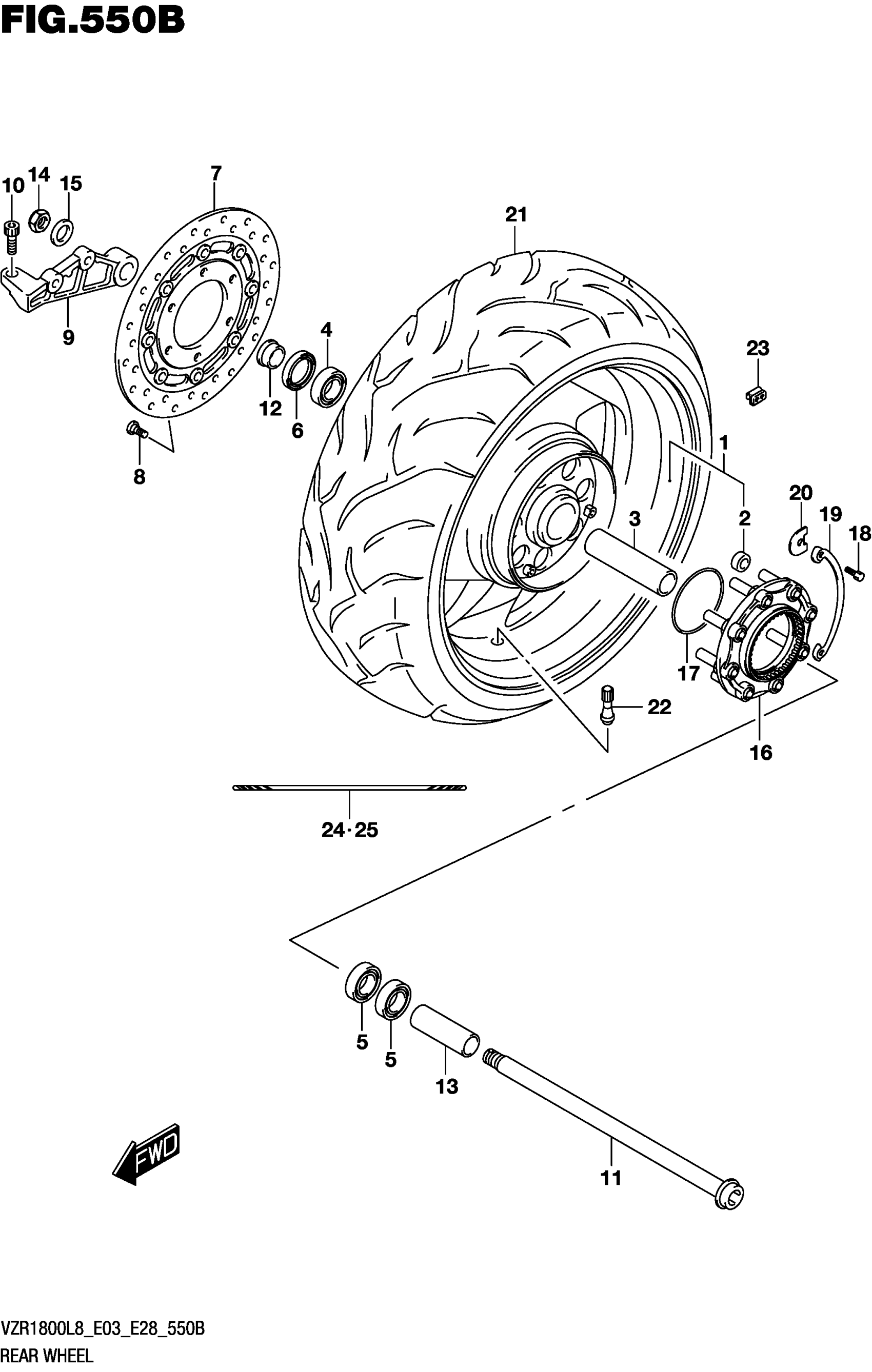

Suzuki VZR1800BZL8 (2018) REAR WHEEL (VZR1800BZL8 E03) Diagram

#

Description
Price

1

WHEEL,REAR (18M/CXMT8.50,BLAC

64100-48820-019

Unavailable

1

WHEEL,REAR (18M/CXMT8.50,BLAC

64100-48820-019

Unavailable

2

BUSH (12X41X34)

09319-12019

$13.11

3

SPACER,REAR WHEEL BEARING

64731-48G00

$72.33

4

.BEARING (25X52X15) | RH

09262-25186

$37.28

5

BEARING (25X52X15) | LH

08143-62057

$24.40

6

.SEAL,OIL (32X52X7)

09285-32004

$7.98

7

DISC,RR BRAKE

69210-10F60

$289.83

8

BOLT (8X21)

09106-08160

$3.57

9

BRACKET,REAR CALIPER

69721-48G10

Unavailable

10

BOLT (12X40)

09103-12109

$5.28

11

AXLE,REAR

64711-48G00

$217.48

12

SPACER,REAR AXLE RH

64741-48G00

$26.48

13

SPACER,REAR AXLE LH

64772-48G00

$40.22

14

NUT

64721-13K00

$12.61

15

WASHER (22X35X2)

09160-22081

$3.04

16

JOINT ASSY,REAR HUB DRIVEN

64680-48G00

$382.13

17

O-RING (D:2.4,ID:79.8)

09280-80001

$3.89

18

BOLT (6X16)

09119-06049

$1.56

19

WASHER,REAR HUB DRIVEN JOINT

64679-48G00

$6.28

20

WASHER,THRUST

64677-48G10

$7.42

21

TIRE,REAR (240/40R18M/C 79V) | DUNLOP

65110-48G01

$943.88

21

TIRE,REAR (240/40R18M/C 79V)

65110-48G01

$943.88

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

23-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$8.60

23-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$10.07

23-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$11.47

24

TAPE

68251-48G00-ECE

$53.43

25

TAPE

68251-48G00-ECE

$53.43
