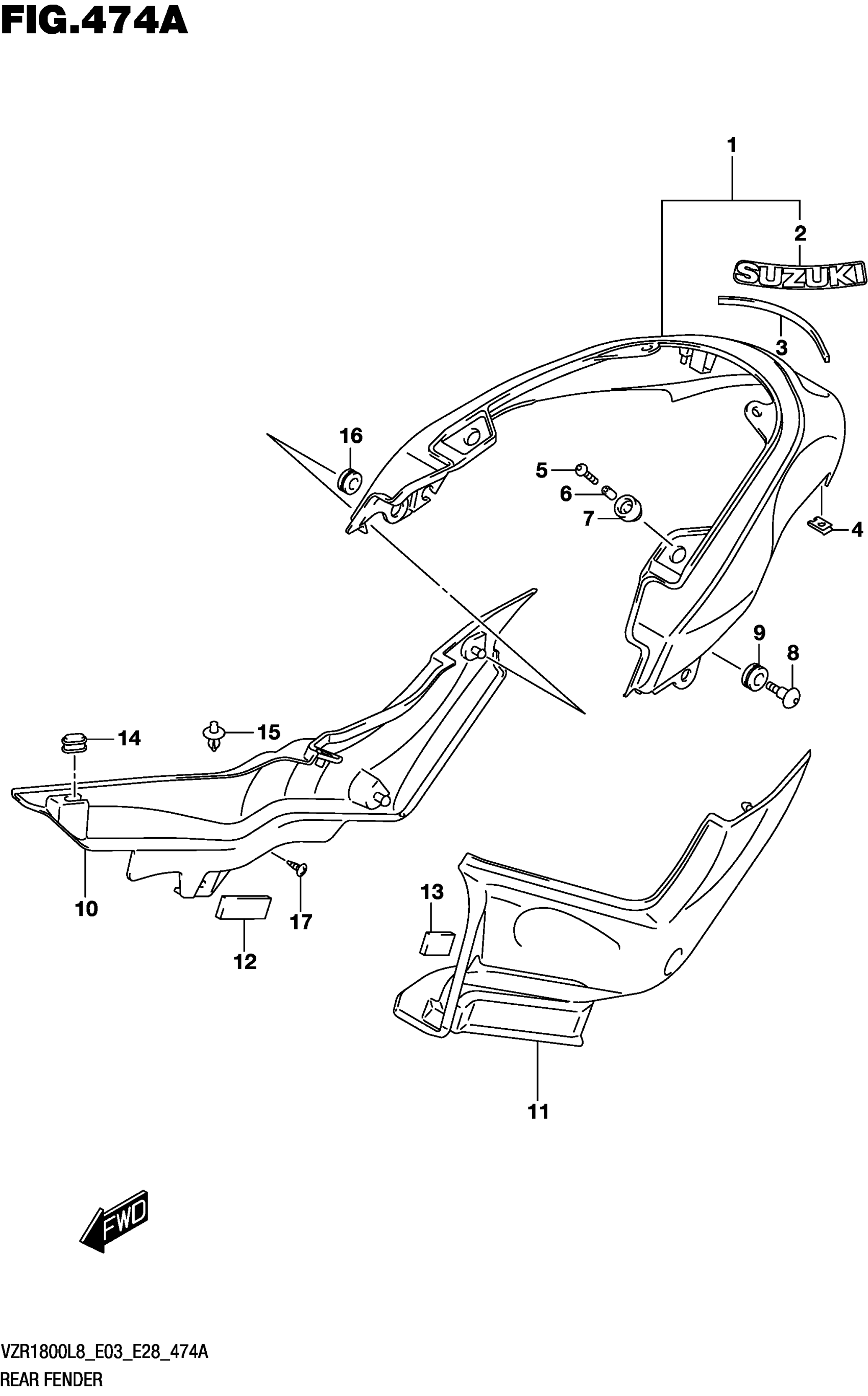

Suzuki VZR1800BZL8 (2018) REAR FENDER (VZR1800L8 E28) Diagram

#

Description
Price

1

FENDER

63110-48G00-6UX

Unavailable

2

.EMBLEM,"SUZUKI" (GRAY) This part replaces 68641-19F00-YJH.

68641-19F01-YJH

$12.82

3

CUSHION,RR FENDER RR COVER

63117-39G00

$4.65

4

NUT COWL

94484-24F00

$4.03

5

SCREW (6X16)

09139-06139

$3.23

6

SPACER (6.5X10X9.4)

09180-06286

$2.50

7

CUSHION

09320-10045

$3.76

8

SCREW (6X20)

09139-06190

$4.17

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

COVER,RR FENDER RH (BLACK)

63171-48G01-YVB

$180.18

11

COVER,RR FENDER LH (BLACK)

63181-48G01-YVB

$180.18

12

CUSHION

15439-70G10

$4.33

13

CUSHION

47161-19C00

$3.03

14

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56

15

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

16

CUSHION (8X26X7)

09320-08028

$3.04

17

SCREW

03541-0516A

$1.49
