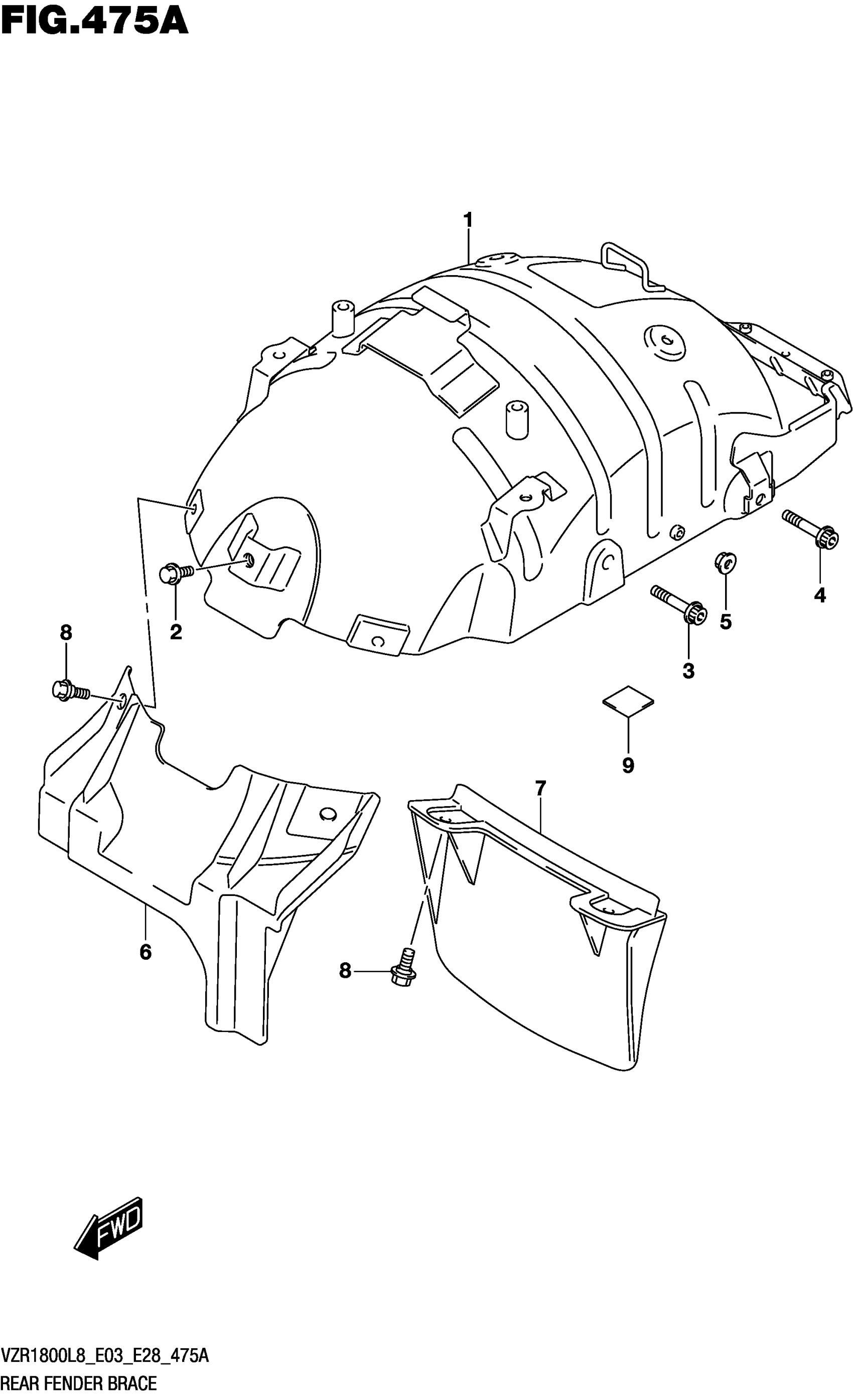

Suzuki VZR1800BZL8 (2018) REAR FENDER BRACE Diagram

#

Description
Price

1

BRACE,REAR FENDER

63140-48G00

$481.20

2

BOLT (8X12) | FRONT

01550-0812A

$2.32

3

BOLT (8X70) | FRONT

09106-08182

$4.17

4

BOLT (8X50) | REAR

09106-08183

$3.70

5

NUT

08316-1008A

$2.45

6

MUD GUARD,RR FENDER FR UPR

63411-48G00

Unavailable

7

MUD GUARD,RR FENDER FR LWR

63421-48G00

Unavailable

8

BOLT (6X12)

09111-06107

$2.60

9

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$2.48
