Description

Price

1

GRIP,THROTTLE This part replaces 57110-26D10.

57110-26D11

$42.05

2

LEVER ASSY,BRAKE

57300-48G20

$109.73

3

.BOLT,PIVOT

57431-48G00

$9.23

4

.NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$38.46

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.19

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$30.23

8

CAP,GRIP,END

57216-38A00

$7.22

9

LEVER ASSY,CLUTCH This part replaces 57500-48G31.

57500-48G33

$85.92

10

.LEVER,CLUTCH

57621-48G20

$37.88

11

.BOLT,LEVER PIVOT

57531-48G00

$37.52

12

.COLLAR

57623-48G00

$29.98

13

NUT

08319-3106A

$2.03

14

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

15

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

16

.SWITCH ASSY,CLUTCH

57560-05A10

$30.85

17

.SCREW,CLUTCH SWITCH

57562-41G01

$9.58

18

.BOLT

07130-06207

$3.04

19

COVER,CLUTCH LEVER This part replaces 57541-48G10.

57541-48G11

$10.71

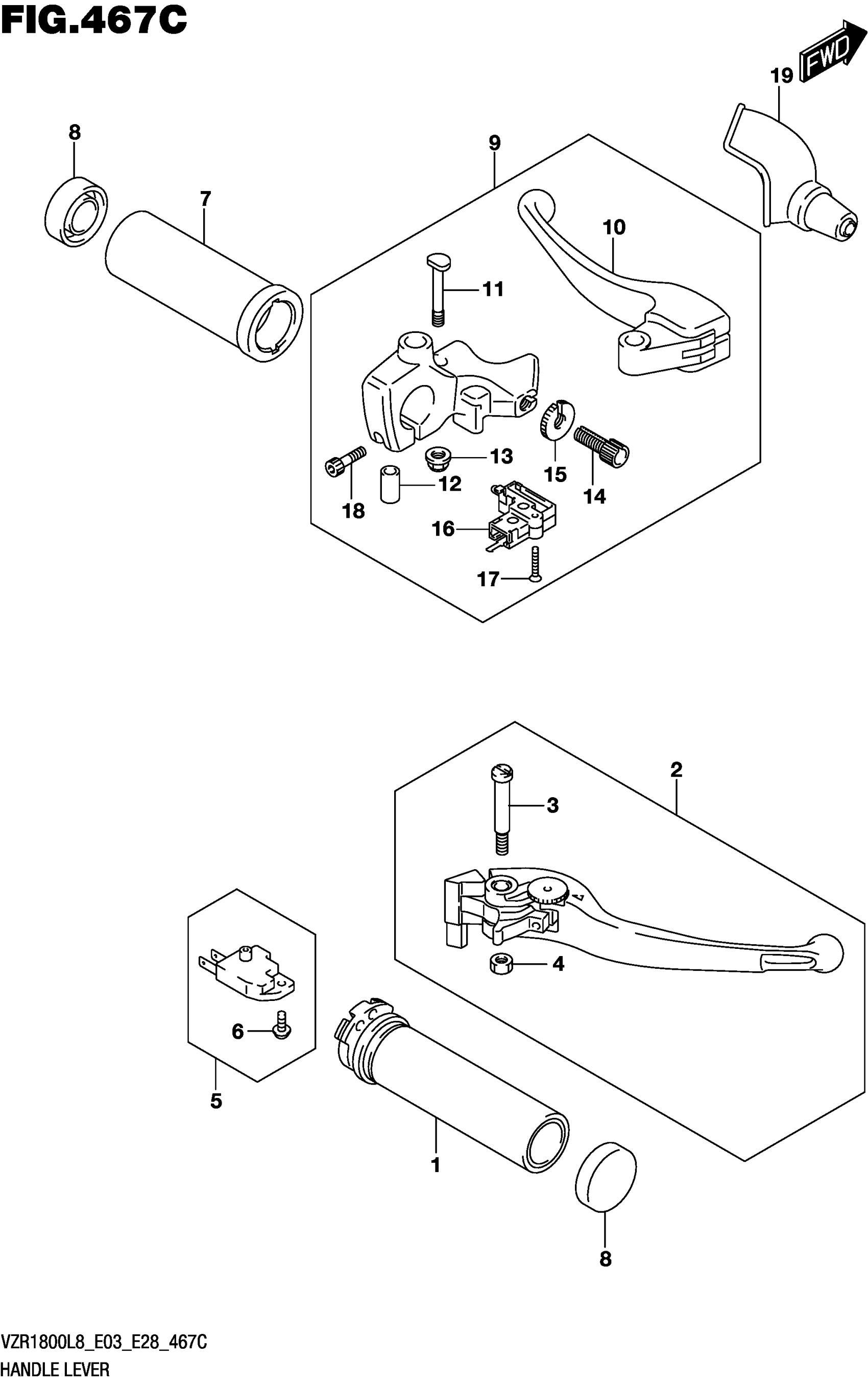

Suzuki VZR1800BZL8 (2018) HANDLE LEVER (VZR1800BZL8 E28) Diagram
