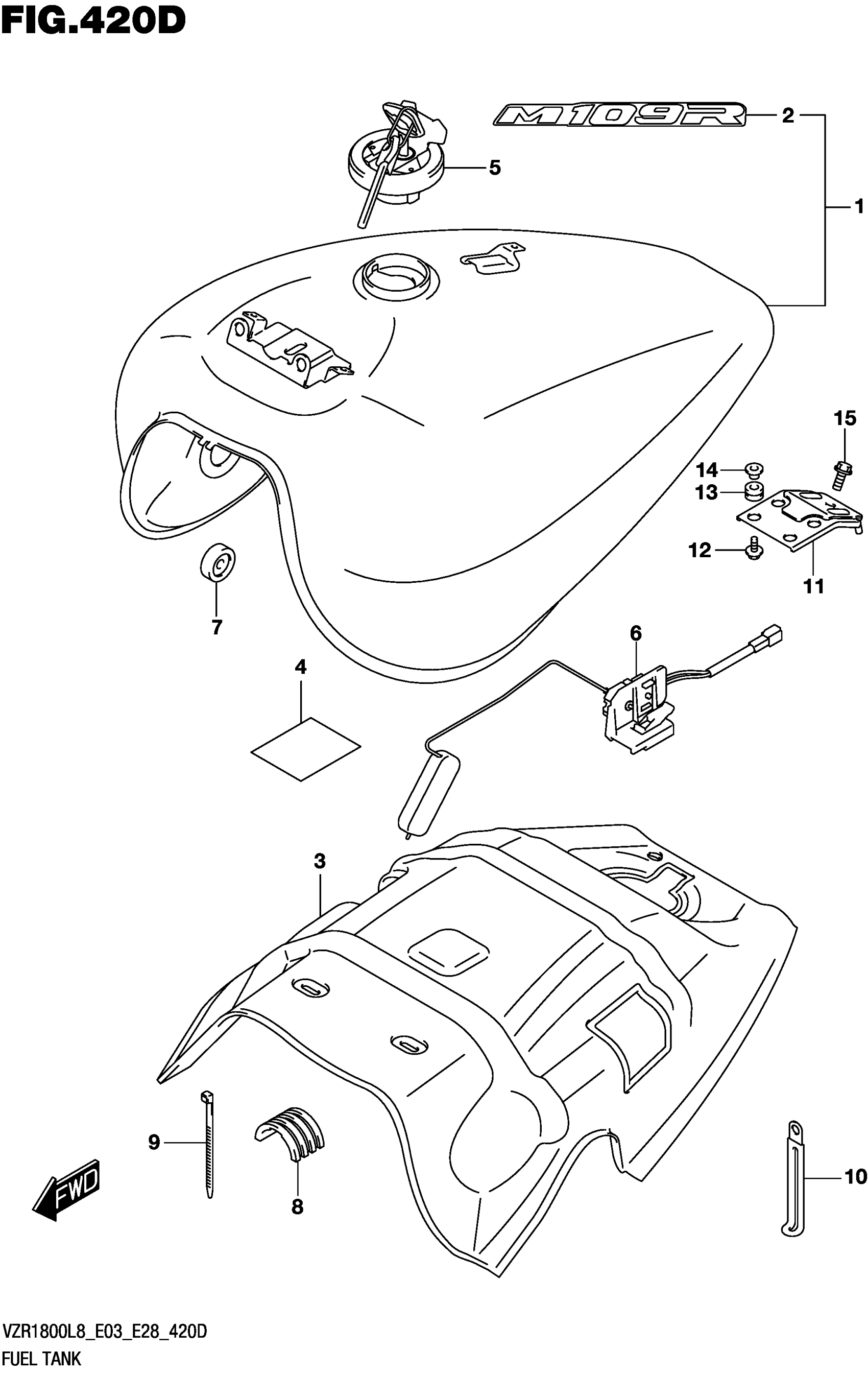

Suzuki VZR1800BZL8 (2018) FUEL TANK (VZR1800BZL8 E33) Diagram

#

Description
Price

1-1

TANK ASSY | FOR JBA

49100-48GA0-YVB

$1,534.30

1-2

TANK ASSY | FOR JRU

49100-48GB0-JRU

$1,534.30

2-1

.EMBLEM | FOR YVB

68111-48G60-YME

$25.62

2-2

.EMBLEM,"M109R" (GRAY) | FOR JRU

68111-48G60-YLF

$25.62

3

SHIELD,FUEL TANK HEAT

44191-48G10

$336.25

4

TAPE,HEAT SHIELD

44192-48G00

$15.18

5

CAP SET,FUEL TA This part replaces 44200-39860.

44200-39862

$123.27

6

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

7

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, FUEL TANK

44541-13E10

$26.73

9

CLAMP (L:300)

09407-30402

$4.11

10

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.74

11

BRACKET,FUEL TANK REAR

44530-48G10

$47.07

12

BOLT (6X20)

09116-06192

$2.30

13

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

14

WASHER (6.3X17X1.6)

09169-06062

$2.50

15

BOLT (8X16) | REAR

01550-0816A

$2.32

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | JBA=YVB(BLACK),YME(ORANGE)

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable

16

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | JRU=YMD(SILVER),YVB(BLACK)

SPECIAL NOTE

Unavailable
