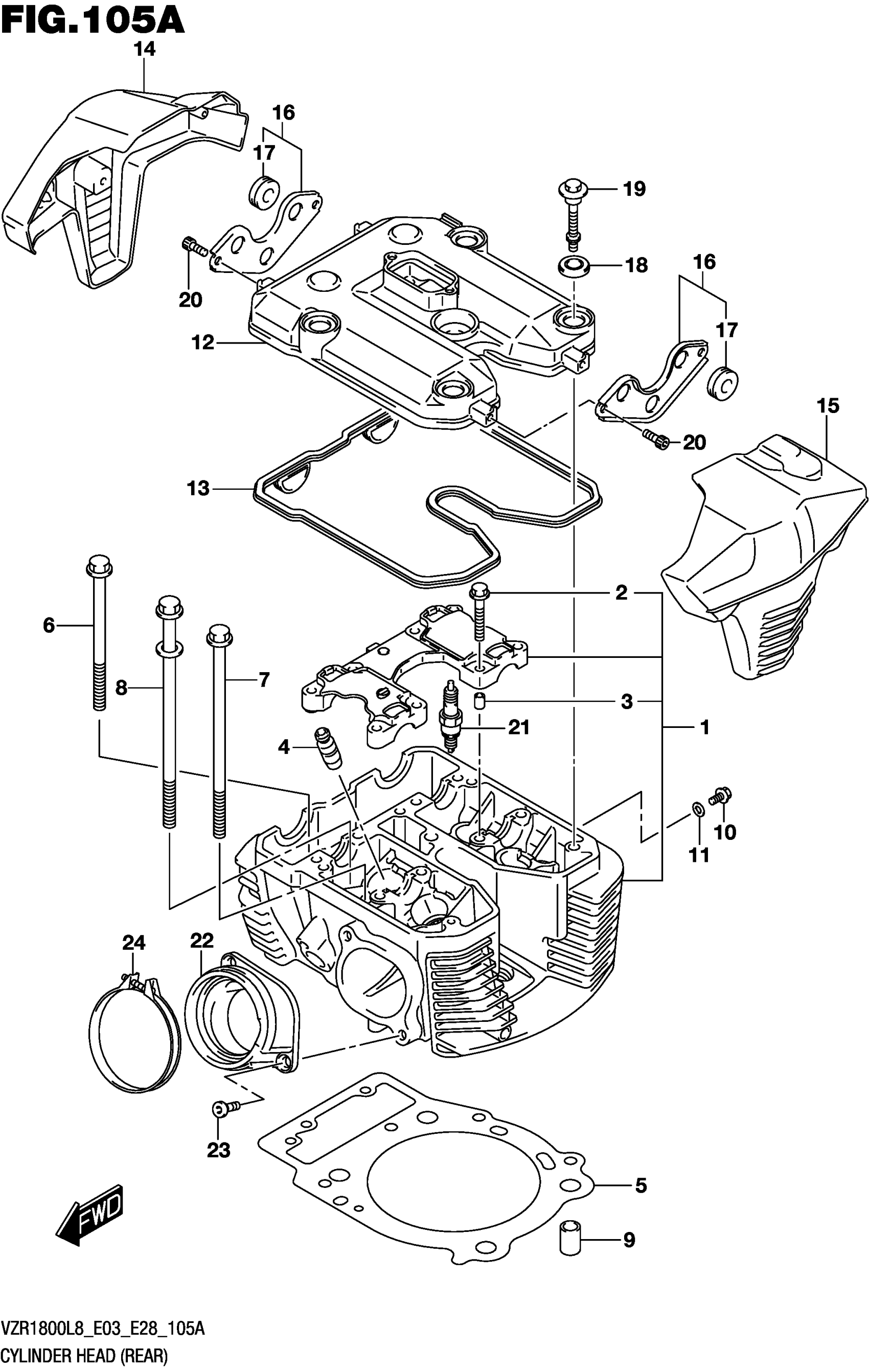

Suzuki VZR1800BZL8 (2018) CYLINDER HEAD (REAR) (VZR1800L8 E28) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER REAR

11103-48G10

Unavailable

2

BOLT (6X39)

09103-06026

$1.84

3

.PIN (8X11)

09206-08001

$1.77

4

GUIDE,VALVE (OS:0.3) | OPT

11115-65J00-001

$36.07

5

.GASKET,CYLINDER HEAD REAR

11142-48G00

$61.08

6

BOLT (8X140)

09103-08305

$17.30

7

BOLT (8X180)

09103-08415

$12.60

8

BOLT (10X19)

09103-10396

$28.57

9

PIN (10.4X13X18)

04211-13189

$2.19

10

BOLT

01550-0612A

$1.97

11

GASKET (5.8X13X1.2)

09168-06023

$2.01

12

COVER,CYLINDER HEAD

11170-48G00

Unavailable

13

.GASKET,CYL HEAD COVER

11173-48G00

$34.90

14

CAP,CYL HEAD COVER NO.1

11174-48G00

$138.98

15

CAP,CYL HEAD COVER NO.2

11175-48G00

$136.40

16

BRACKET,HEAD COVER CAP This part replaces 11180-48G00.

11180-48G01

$10.97

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

18

CUSHION,HEAD COVER BOLT

11192-13E00

$3.97

19

BOLT (6X52)

09111-06091

$24.82

20

BOLT

07130-0612A

$2.50

21-1

SPARK PLUG (CR8EK) | NGK

09482-00412

$9.72

21-2

SPARK PLUG (U24ETR) | DENSO

09482-00413

$14.37

21-3

SPARK PLUG (CR9EK) | OPT,NGK

09482-00410

$10.60

21-4

SPARK PLUG (DENSO,U27ESR-N) | OPT,DENSO This part replaces 09482-00411.

09482-00459

$5.58

21-5

SPARK PLUG (CR7EK) | OPT,NGK

09482-00414

$13.63

21-6

SPARK PLUG (U22ETR) | OPT,DENSO

09482-00415

Unavailable

22

PIPE ASSY,INTAKE This part replaces 13101-48G00.

13101-48G01

$109.97

23

BOLT (6X20.5)

09120-06008

$2.88

24

CLAMP,INTAKE PIPE

13170-22H00

Unavailable
