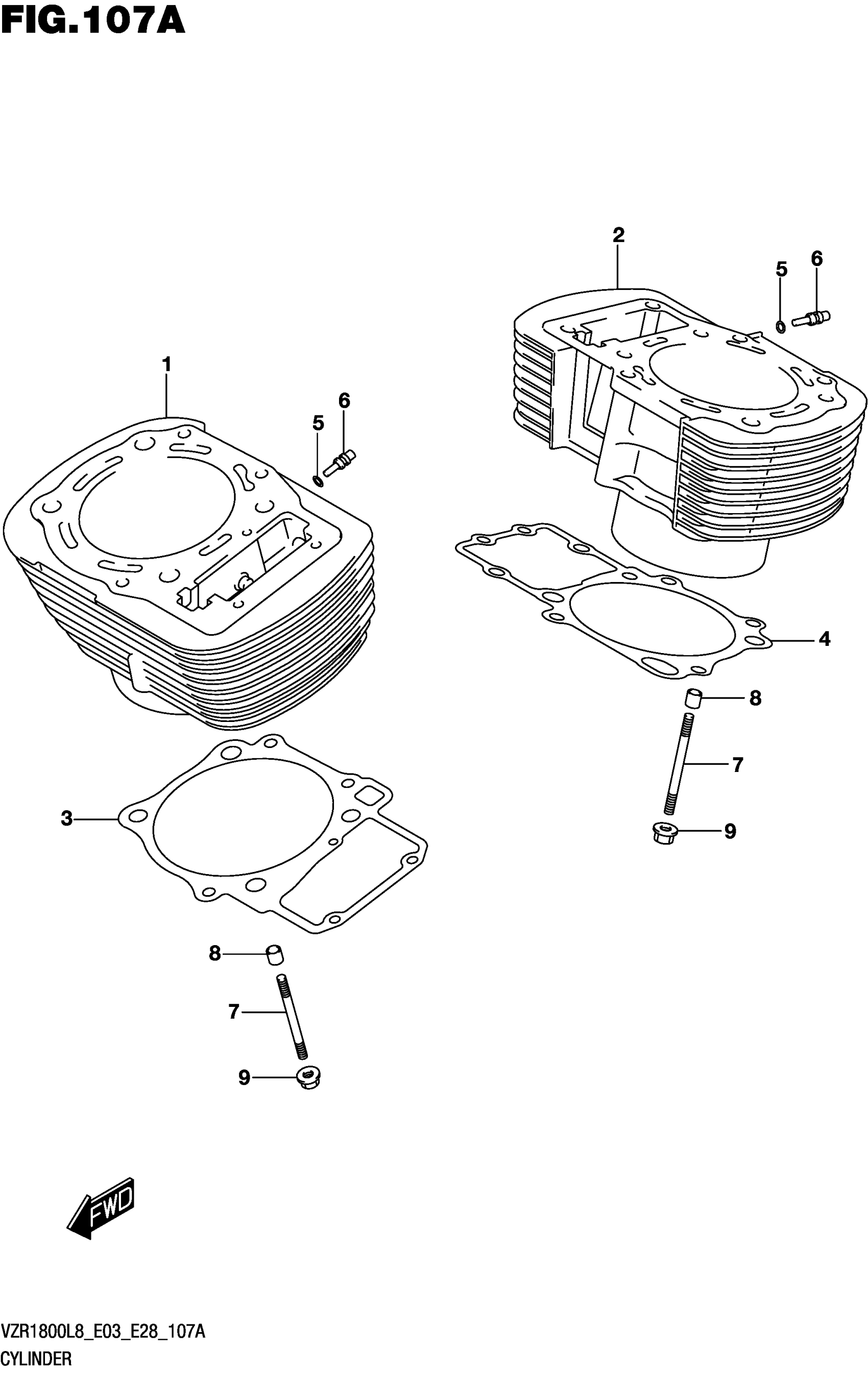

Suzuki VZR1800BZL8 (2018) CYLINDER Diagram

#

Description
Price

1

CYLINDER,FRONT

11211-48G00-0F0

$1,326.87

2

CYLINDER,REAR

11221-48G00-0F0

$1,326.87

3

.GASKET,CYLINDER FRONT

11241-48G10

$24.42

4

.GASKET,CYLINDER REAR

11242-48G00

$20.35

5

O-RING (D:1.2,ID:4)

09280-04004

$1.91

6

JET (#8)

09493-80005

$16.25

7

BOLT,STUD

01421-0665A

$2.98

8

PIN (10.4X13X18)

04211-13189

$2.19

9

NUT

08319-3106A

$2.03
