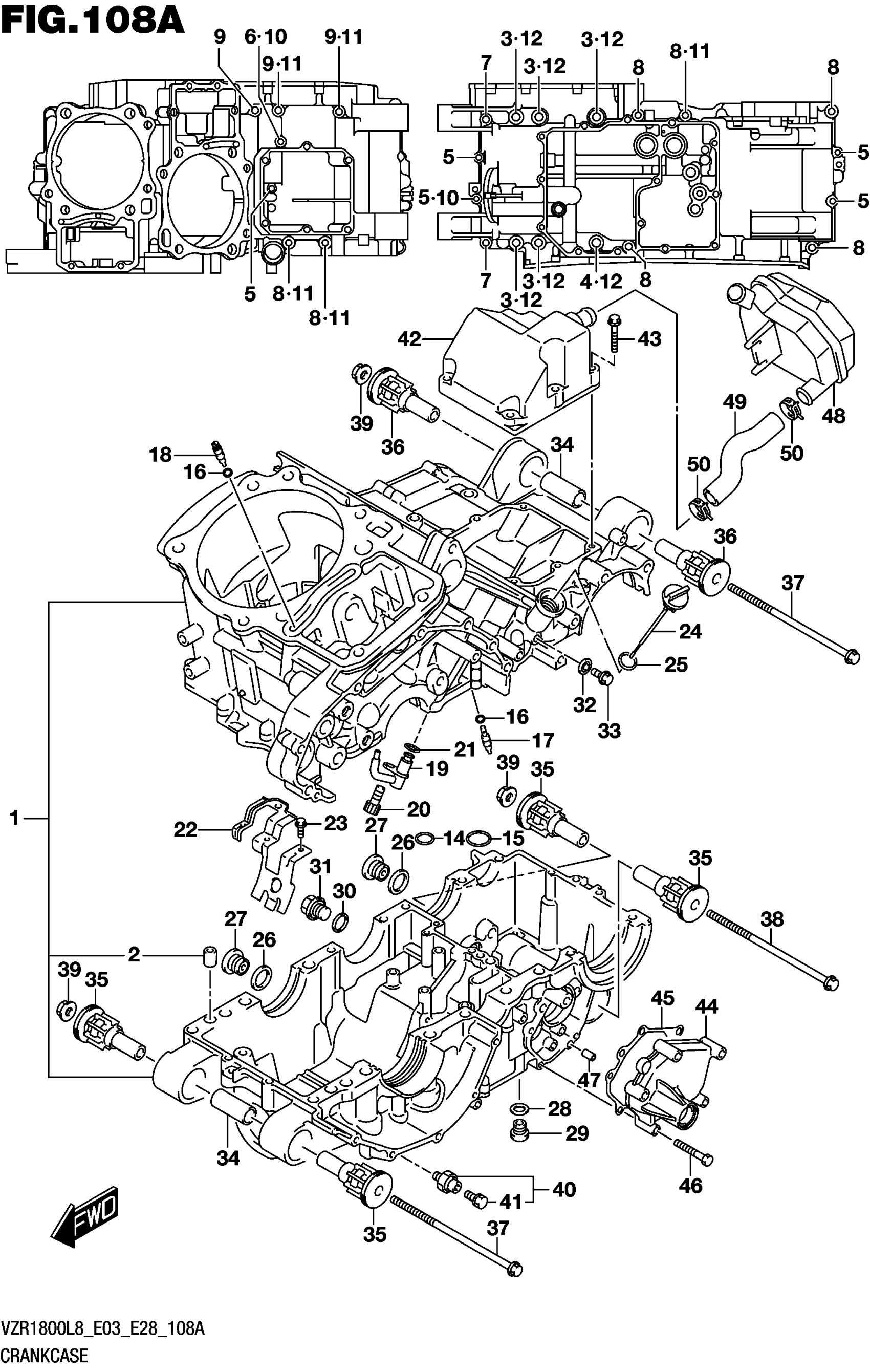

Suzuki VZR1800BZL8 (2018) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-48881

$4,403.10

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT (10X100)

09103-10110

$8.43

4

.BOLT (10X115)

09103-10406

Unavailable

5

BOLT

01547-0645A

$2.42

6

.BOLT

01547-0670A

$2.92

7

.BOLT

07130-0850A

$4.17

8

.BOLT

07130-0865A

Unavailable

9

.BOLT

07130-0885A

Unavailable

10

GASKET (5.8X13X1.2)

09168-06023

$2.35

11

GASKET (8.2X14X1)

09168-08016

$1.65

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13-1

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0A0

$13.28

13-2

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0B0

Unavailable

13-3

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0C0

$13.28

13-4

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0D0

Unavailable

13-5

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0E0

$13.28

13-6

.WASHER,CRANK THRUST | SEE ILLUSTRATION ON FIG.120A

12228-48G00-0F0

Unavailable

14

O-RING (D:1.9,ID:7.8)

09280-08012

$3.68

15

O-RING (D:1.9,ID:12.6)

09280-12009

$3.18

16

O-RING (D:1.2,ID:4)

09280-04004

$1.91

17

JET (#8)

09493-80005

$16.25

18

JET (#8)

09493-80005

$16.25

19

JET,PISTON COOLING

11390-48G00

$66.00

20

BOLT (6X12)

09106-06075

$2.48

21

O-RING (D:1.2,ID:4.7)

09280-05007

$1.92

22

PLATE,OIL SEPARATOR

11521-48G00

Unavailable

23

BOLT

01547-0612A

$2.03

24

GAUGE,OIL LEVEL

11971-48G01

$12.80

25

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

26

GASKET (16X22X2)

09168-16002

$1.91

27

PLUG (16X8)

09248-16012

$4.64

28

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

29

PLUG (14X12)

09248-14011

$2.98

30

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

31

PLUG (12X10)

09247-12006

$2.82

32

GASKET (5.8X13X1.2)

09168-06023

$2.35

33

BOLT

01547-0612A

$2.03

34

SPACER,ENG MTG

11611-48G00

Unavailable

35

BUSH,ENG MTG

11652-10G50

$25.21

36

BUSH,ENG MTG

11652-10G30

$24.62

37

BOLT (10X215)

09103-10041-A05

$10.40

38

BOLT (10X195)

09103-10118

$11.56

39

NUT

08319-3110A

$2.73

40

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

41

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.35

42

COVER,BREATHER

11330-48G00

Unavailable

43

BOLT

01547-0630A

$2.32

44

COVER,GEAR SHIFT

11371-48G00

Unavailable

45

.GASKET,GEAR SHIFT COVER

11485-48G00

$6.80

46

BOLT

01547-0645A

$2.42

47

PIN (8.5X18X2.3)

04211-09149

$1.65

48

TANK,OIL RETURN

11332-48G00

$73.20

49

HOSE,OIL RETURN TANK

11333-48G00

$15.42

50

CLIP

09401-20405

$4.08
