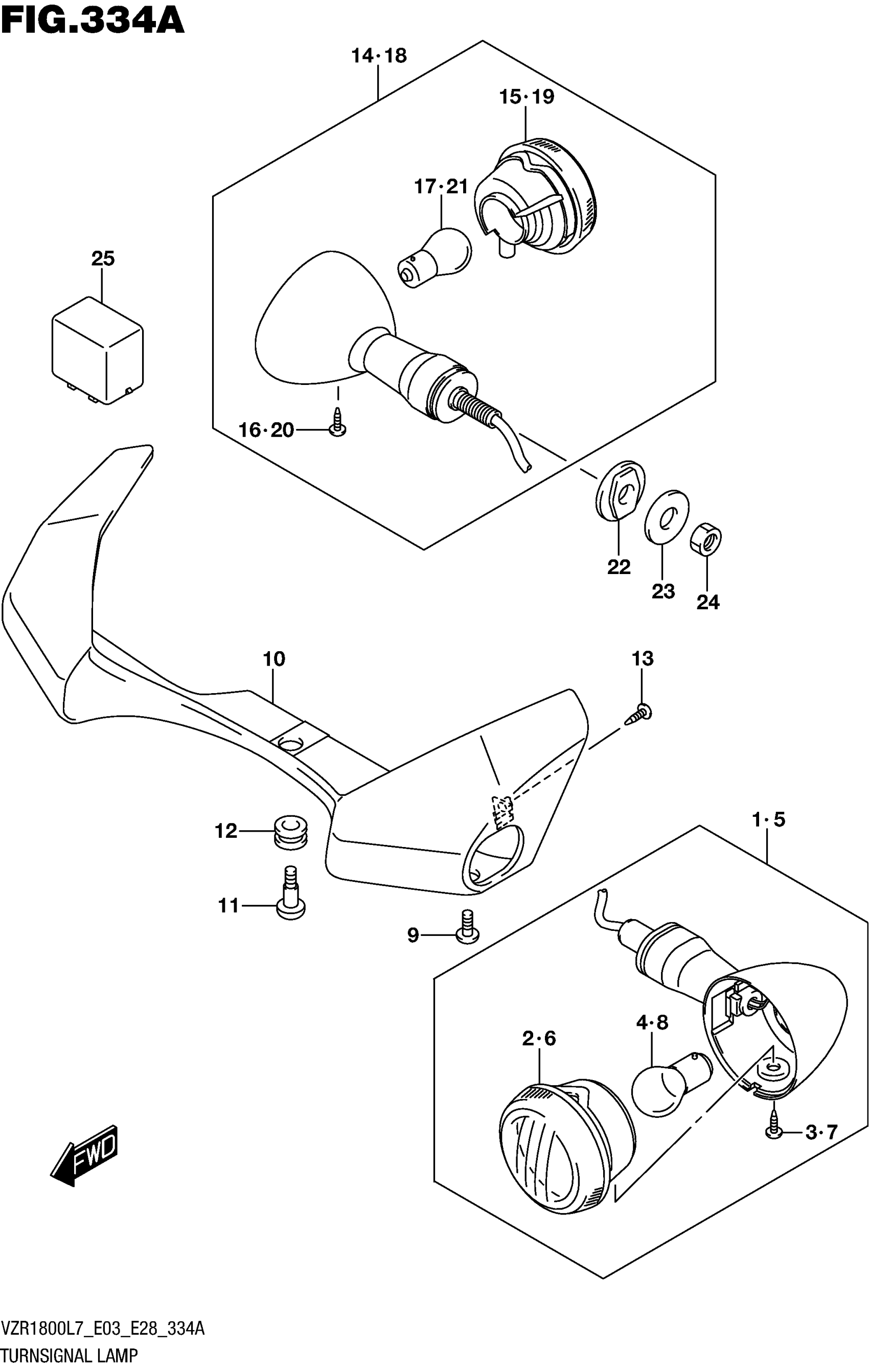

Suzuki VZR1800BZL7 (2017) TURNSIGNAL LAMP (VZR1800L7 E28) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AF0

$151.52

2

.LENS | FOR AMBER

35610-38AA0

$30.10

3

.SCREW (4X10)

35623-38AA0

$4.89

4

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.26

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AF0

$112.28

6

.LENS | FOR AMBER

35630-38AA0

$30.53

7

.SCREW (4X10)

35623-38AA0

$4.89

8

BULB (12V,21/5W) | FOR CLEAR This part replaces 09471-12083.

09471-12128

$6.26

9

SCREW

02142-0612A

$1.41

10

STAY, FRONT TURNSIGNAL

35641-48G00

$211.80

11

SCREW (6X16)

09139-06146

$2.80

12

CUSHION

09320-09016

$2.01

13

SCREW

03541-0512A

$1.41

14

LAMP ASSY,RR TURNSIGNAL RH This part replaces 35603-48EC0.

35603-48EC1

$104.10

15

.LENS | FOR AMBER

35630-38AE1

$30.53

16

.SCREW (4X10)

35623-38AA0

$4.89

17

.BULB (12V,21W) | FOR CLEAR

09471-12045

$3.06

18

LAMP ASSY,RR TURNSIGNAL LH This part replaces 35604-38AE0.

35604-38AE1

$113.63

19

.LENS | FOR AMBER

35610-38AE1

$30.10

20

.SCREW (4X10)

35623-38AA0

$4.89

21

.BULB (12V,21W) | FOR CLEAR

09471-12045

$3.06

22

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$3.86

23

WASHER (10.5X30X2.3)

09160-10501

$2.40

24

NUT

08310-0010A

$1.94

25

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$85.27
