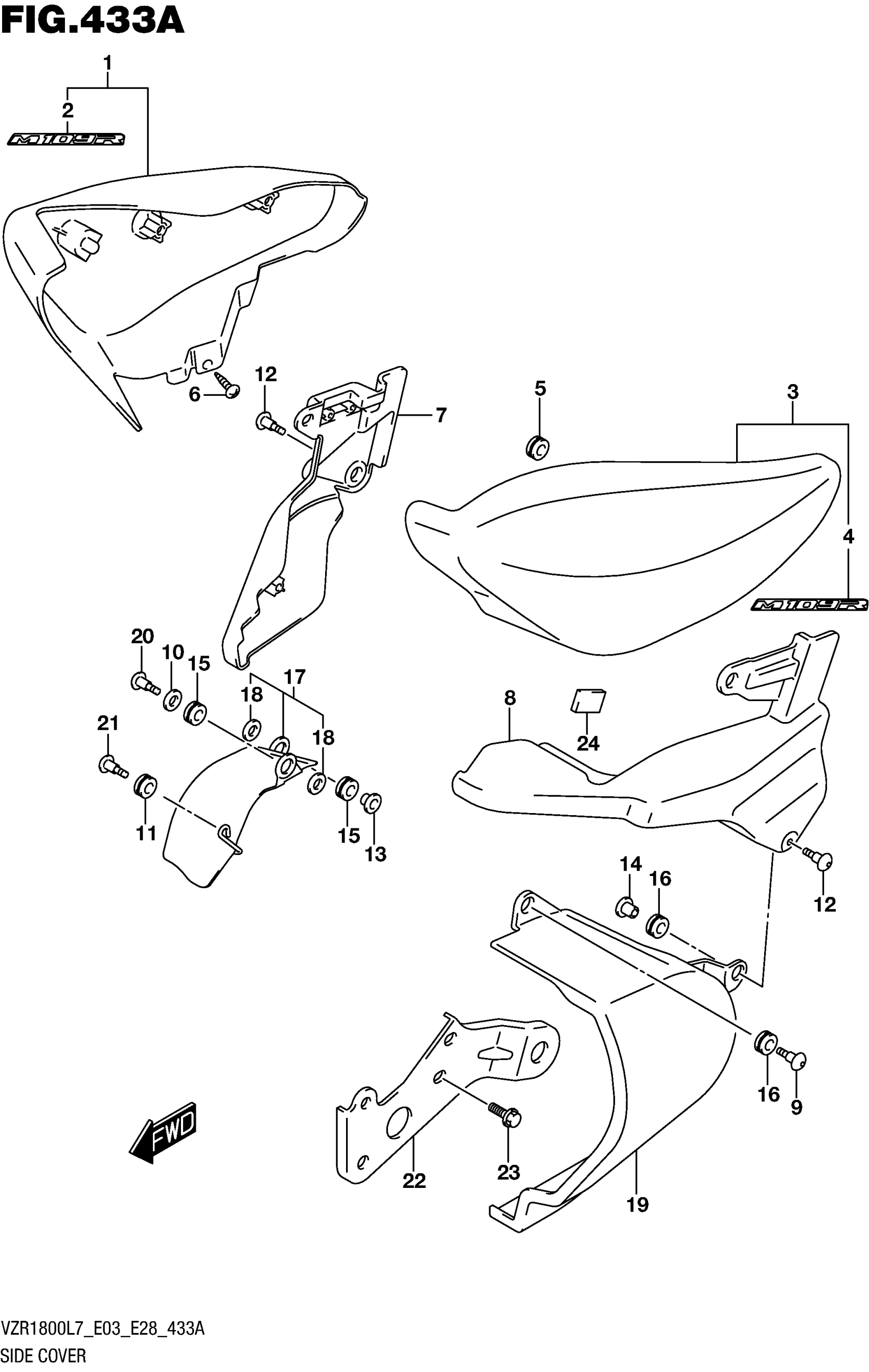

Suzuki VZR1800BZL7 (2017) SIDE COVER (VZR1800L7 E28) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47110-48GA0-YVB

Unavailable

2

.EMBLEM "M109R" (BLACK/GRAY)

68131-48GA0-AJM

Unavailable

3

COVER, FRAME LH (BLACK)

47210-48GA0-YVB

Unavailable

4

.EMBLEM "M109R" (BLACK/GRAY)

68131-48GA0-AJM

Unavailable

5

CUSHION

09320-08018

$3.04

6

SCREW

03541-0516A

$1.49

7

COVER, SIDE LOWER RH

47121-48G00

$38.83

8

COVER, SIDE LOWER LH

47221-48G00

$38.12

9

SCREW (6X20) | LH

09139-06126

$4.04

10

WASHER (10.5X20X2.3) | RH

09160-10123

$2.12

11

CUSHION | RH

09320-09501

$2.03

12

SCREW (6X25)

09139-06029

$5.36

13

SPACER (6.5X10X11.6) | RH

09180-06319

$3.85

14

WASHER | LH

09169-06075

$3.68

15

CUSHION (8.5X20X8) | RH This part replaces 09320-08021.

09320-08510

$1.97

16

CUSHION | LH

09320-08070

$11.57

17

COVER, LOWER RH

47130-48G00

$318.02

18

.WASHER, FRAME COVER

47523-41F00

Unavailable

19

COVER, LOWER LH

47231-48GB0

$562.38

20

SCREW (6X20) | RH

09139-06126

$4.04

21

SCREW (6X20) | RH

09139-06126

$4.04

22

BRACKET, LOWER COVER LH

47250-48G00

Unavailable

23

BOLT

01550-0612A

$1.97

24

CUSHION, SIDE COVER LH

47161-19C00

$3.03
