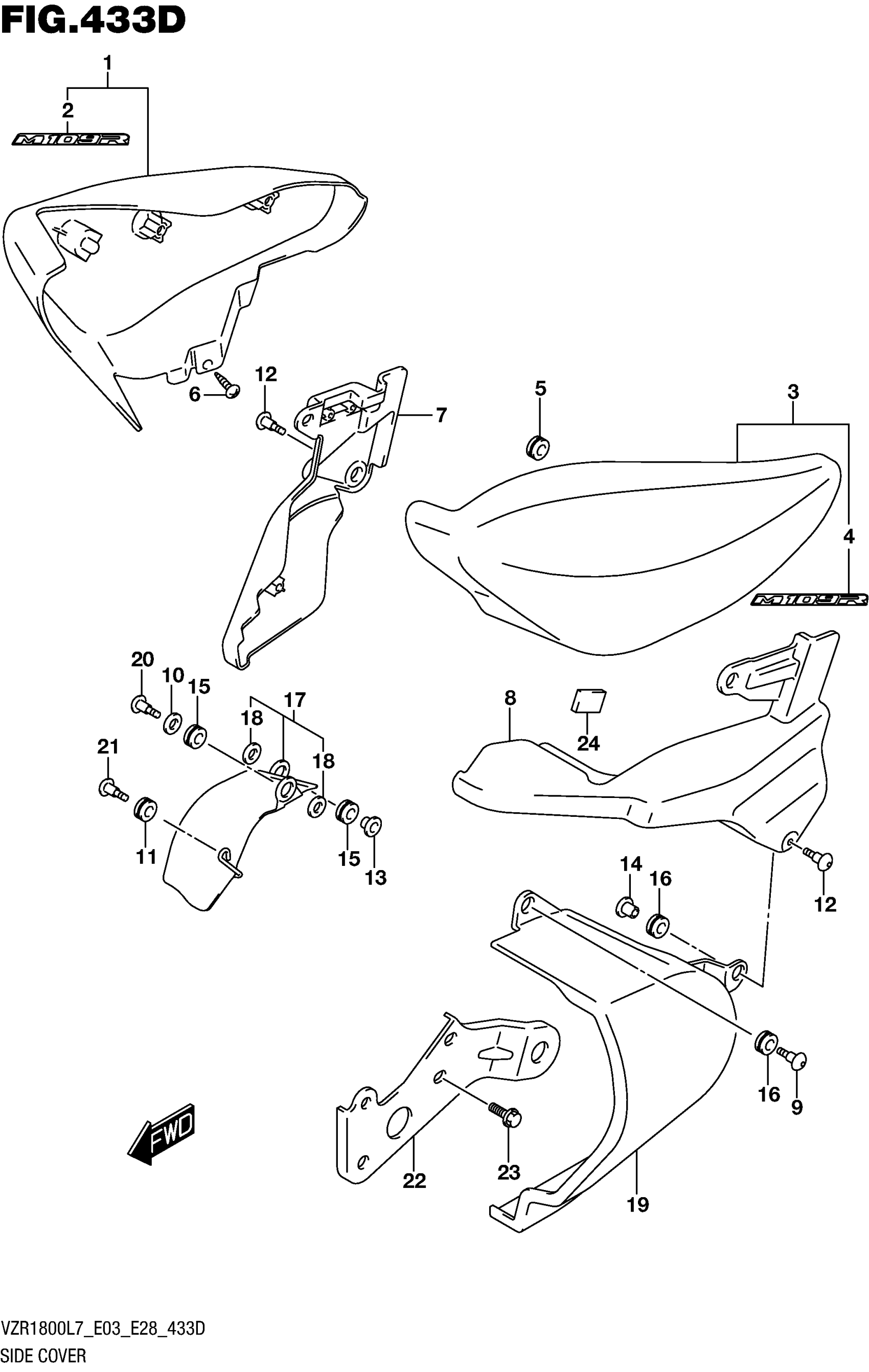

Suzuki VZR1800BZL7 (2017) SIDE COVER (VZR1800BZL7 E33) Diagram

#

Description
Price

1-1

COVER, FRAME RH (GRAY) | FOR PGZ

47110-48GA0-PGZ

Unavailable

1-2

COVER, FRAME RH (BLUE) | FOR BBD

47110-48GB0-YKY

$327.25

2-1

.EMBLEM "M109R" (GRAY/BLACK) | FOR PGZ

68131-48GA0-AHW

$21.65

2-2

.EMBLEM "M109R" (BLUE/GRAY) | FOR YKY

68131-48GA0-BBJ

$21.65

3-1

COVER, FRAME LH (GRAY) | FOR PGZ

47210-48GA0-PGZ

Unavailable

3-2

COVER, FRAME LH (BLUE) | FOR BBD

47210-48GB0-YKY

Unavailable

4-1

.EMBLEM "M109R" (GRAY/BLACK) | FOR PGZ

68131-48GA0-AHW

$21.65

4-2

.EMBLEM "M109R" (BLUE/GRAY) | FOR YKY

68131-48GA0-BBJ

$21.65

5

CUSHION

09320-08018

$2.80

6

SCREW

03541-0516A

$1.37

7

COVER, SIDE LOWER RH

47121-48G00

$43.83

8

COVER, SIDE LOWER LH

47221-48G00

$43.02

9

SCREW (6X20) | LH

09139-06126

$3.65

10

WASHER (10.5X20X2.3) | RH

09160-10123

$2.13

11

CUSHION | RH

09320-09501

$2.06

12

SCREW (6X25)

09139-06029

$4.84

13

SPACER (6.5X10X11.6) | RH

09180-06319

$4.92

14

WASHER | LH

09169-06075

$4.00

15

CUSHION (8.5X20X8) | RH This part replaces 09320-08021.

09320-08510

$1.70

16

CUSHION | LH

09320-08070

$12.93

17

COVER, LOWER RH

47130-48G50

$340.23

18

.WASHER, FRAME COVER

47523-41F00

Unavailable

19

COVER, LOWER LH

47231-48G50

$590.45

20

SCREW (6X20) | RH

09139-06126

$3.65

21

SCREW (6X20) | RH

09139-06126

$3.65

22

BRACKET, LOWER COVER LH

47250-48G00

Unavailable

23

BOLT

01550-0612A

$1.97

24

CUSHION, SIDE COVER LH

47161-19C00

$3.42

25

COLOR :

SPECIAL NOTE

Unavailable

25

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
