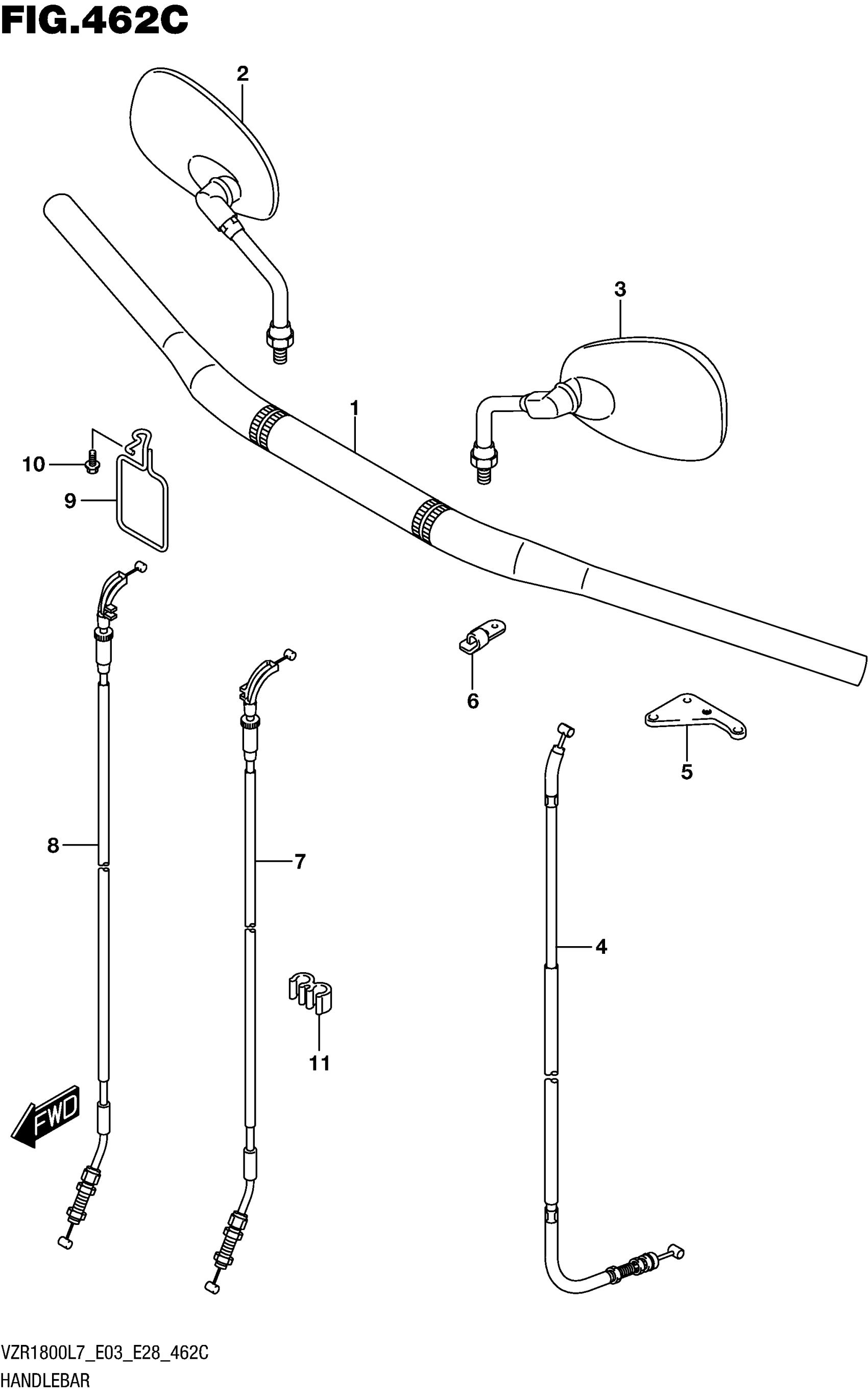

Suzuki VZR1800BZL7 (2017) HANDLEBAR (VZR1800BZL7 E28) Diagram

#

Description

Price

1

HANDLEBAR This part replaces 56110-48G10.

56110-48G11

$151.69

2

MIRROR ASSY, REAR VIEW RH

56500-41F90

$171.78

3

MIRROR ASSY, REAR VIEW LH

56600-41F90

$170.95

4

CABLE ASSY, CLUTCH

58200-48G11

$65.09

5

STOPPER, CLUTCH CABLE NO.1

58634-48G00

$17.40

6

STOPPER, CLUTCH CABLE NO.2

58635-48G01

$15.85

7

CABLE ASSY,THROTTLE NO.1 This part replaces 58300-48G40.

58300-48G41

$58.48

8

CABLE ASSY,THROTTLE NO.2 This part replaces 58300-48G50.

58300-48G51

$57.92

9

GUIDE, CABLE NO.2

58620-48GC0

Unavailable

10

BOLT

01550-0612A

$1.97

11

CLIP

09408-00244

$3.08
