Description

Price

1

TANK ASSY, FUEL (BLACK)

44100-48GR0-YVB

Unavailable

2

.EMBLEM, "BOULEVARD" (GRAY)

68111-48G20-YHG

$25.62

3

CAP SET,FUEL TA This part replaces 44200-39830.

44200-39832

$110.37

4

SHIELD, FUEL TANK HEAT

44191-48G10

$336.25

5

TAPE, HEAT SHIELD

44192-48G00

$15.18

6

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

7

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, FUEL TANK

44541-13E10

$26.73

9

CLAMP (L:300)

09407-30402

$4.11

10

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.74

11

BRACKET, FUEL TANK REAR

44530-48G10

$47.07

12

BOLT (6X20)

09116-06192

$2.30

13

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

14

WASHER

09169-06062

$2.50

15

BOLT (8X16) | REAR

01550-0816A

$2.32

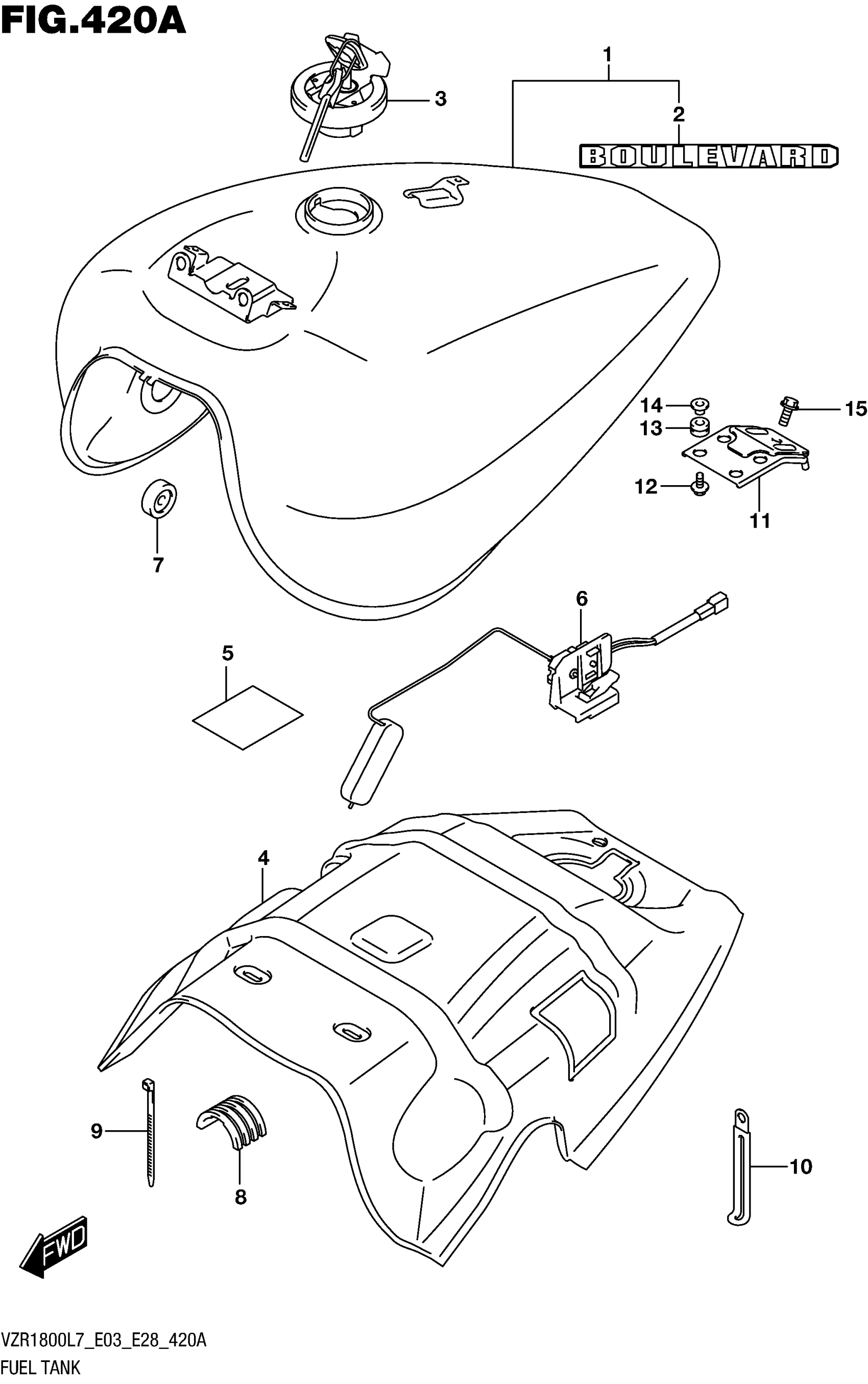

Suzuki VZR1800BZL7 (2017) FUEL TANK (VZR1800L7 E28) Diagram
