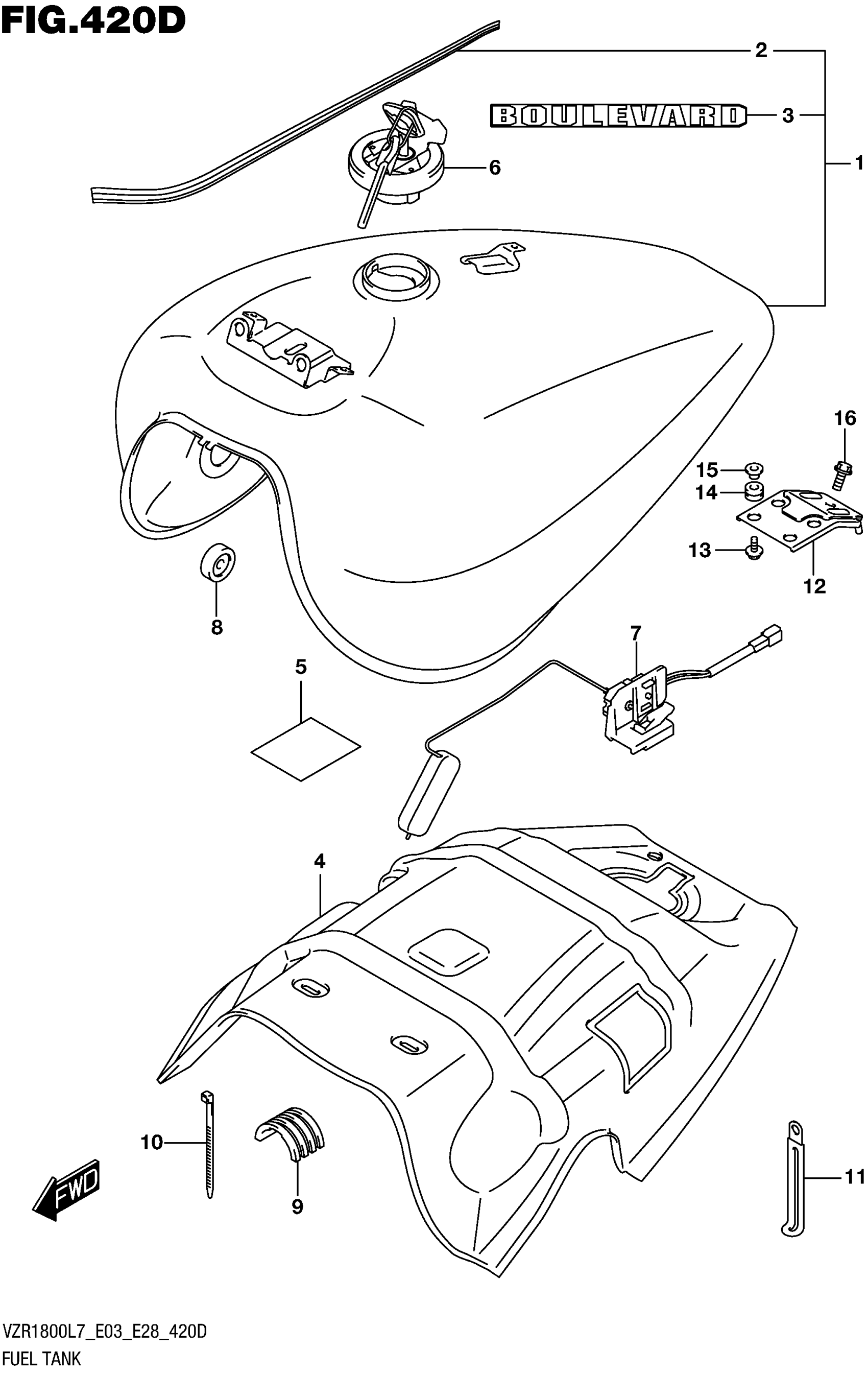

Suzuki VZR1800BZL7 (2017) FUEL TANK (VZR1800BZL7 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE/BLACK)

44100-48GU0-BBD

$1,565.63

1-2

TANK ASSY, FUEL (GRAY)

49100-48G50-PGZ

$1,616.12

2

.TAPE SET, FUEL TANK | FOR BBD

68110-48GB0-BBP

Unavailable

3-1

.EMBLEM, "BOULEVARD" (GRAY) | FOR BBD

68111-48G20-YHG

$25.62

3-2

.EMBLEM, "BOULEVARD" (BLACK) | FOR PGZ

68111-48G40-YKV

$26.58

4

SHIELD, TANK HEAT

44191-48G10

$336.25

5

TAPE

44192-48G00

$15.18

6

CAP SET,FUEL TANK This part replaces 44200-39870.

44200-39871

$237.20

7

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

8

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION, FUEL TANK

44541-13E10

$26.73

10

CLAMP (L:300)

09407-30402

$4.11

11

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.74

12

BRACKET, REAR

44530-48G10

$47.07

13

BOLT (6X20)

09116-06192

$2.30

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

15

WASHER

09169-06062

$2.50

16

BOLT (8X16) | REAR

01550-0816A

$2.32

17

COLOR :

SPECIAL NOTE

Unavailable

17

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
