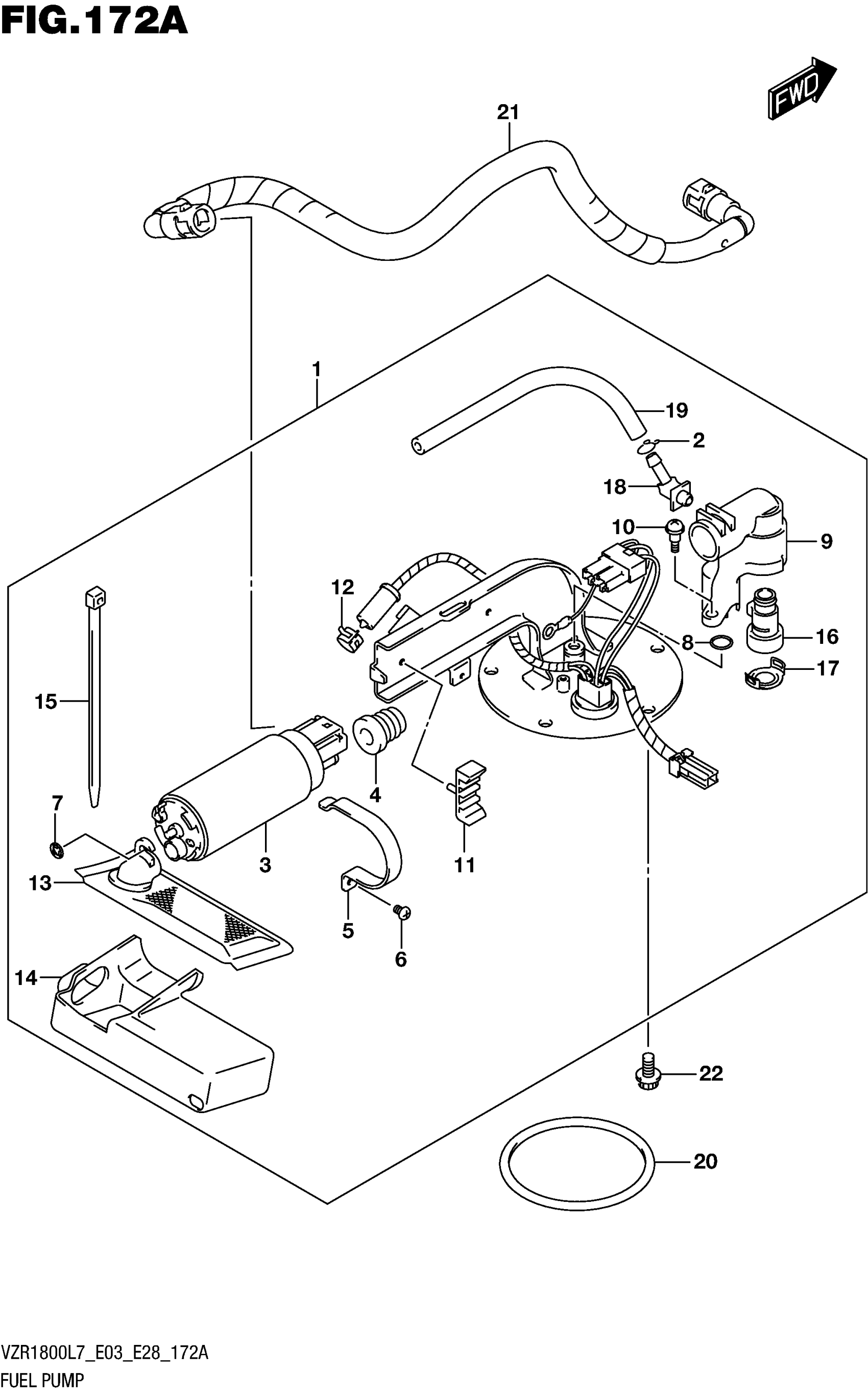

Suzuki VZR1800BZL7 (2017) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-48G10.

15100-48G11

$749.10

2

.CLIP

13693-24F00

$3.22

3

.PUMP

15110-48G00

$388.23

4

.INSULATOR This part replaces 15114-48G00.

15114-48G01

$20.47

5

.HOLDER

15115-14G00

Unavailable

6

.SCREW

15116-48G00

$5.58

7

.PLATE

15119-14G00

$5.38

8

.O RING

15125-48G00

$14.27

9

.ADAPTER

15131-48G00

Unavailable

10

.SCREW

15135-48G00

Unavailable

11

.INSULATOR

15141-48G00

Unavailable

12

.CLAMP

15175-48G00

Unavailable

13

.FILTER

15420-48G00

$100.42

14

.COVER

15425-48G00

$64.40

15

.BAND

15426-48G00

$12.82

16

.REGULATOR

15610-48G00

$201.52

17

.CLIP

15613-48G00

Unavailable

18

.JOINT

15614-48G00

Unavailable

19

.HOSE

15615-48G00

$25.33

20

O-RING

15201-35F00

$27.60

21

HOSE,FUEL

15810-48G01

$98.40

22

BOLT

07120-0612A

$2.50
