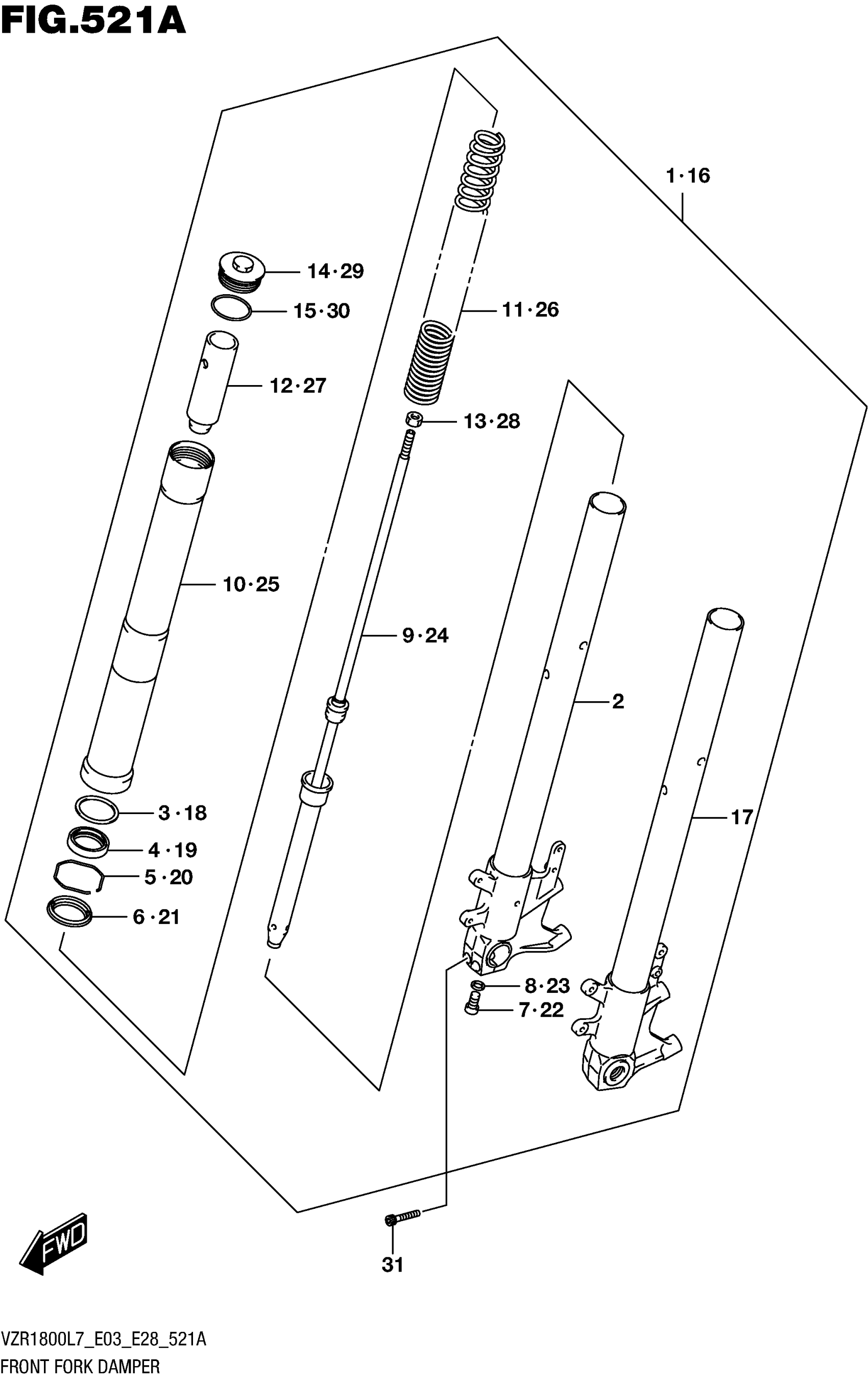

Suzuki VZR1800BZL7 (2017) FRONT FORK DAMPER (VZR1800L7 E28) Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,R This part replaces 51103-48G20.

51103-48G21

$1,048.47

2

.TUBE, INNER RH

51110-48G20

$995.95

3

.WASHER

51158-27C00

$5.67

4

.OIL SEAL

51153-48G00

$23.04

5

.RING, STOPPER

51156-27C00

$5.47

6

.SEAL, DUST

51173-42F00

$24.34

7

.BOLT

51147-05H00

$6.10

8

.GASKET

51148-41310

$2.14

9

.CYLINDER

51146-48G20

Unavailable

10

.TUBE, OUTER

51130-48G00

$722.02

11

.SPRING, FRONT

51171-48G20

$122.46

12

.SPACER, SPRING

51176-21H00

$30.92

13

.NUT, ROD

51352-13A60

$3.42

14

.CAP

51351-48G10

$122.07

15

..O RING This part replaces 51117-48G00.

51117-48G01

$2.88

16

DAMPER ASSY,FR FORK,L This part replaces 51104-48G20.

51104-48G21

$1,976.82

17

.TUBE, INNER LH

51120-48G20

Unavailable

18

.WASHER

51158-27C00

$5.67

19

.OIL SEAL

51153-48G00

$23.04

20

.RING, STOPPER

51156-27C00

$5.47

21

.SEAL, DUST

51173-42F00

$24.34

22

.BOLT

51147-05H00

$6.10

23

.GASKET

51148-41310

$2.14

24

.CYLINDER

51146-48G20

Unavailable

25

.TUBE, OUTER

51130-48G00

$722.02

26

.SPRING, FRONT

51171-48G20

$122.46

27

.SPACER, SPRING

51176-21H00

$30.92

28

.NUT, ROD

51352-13A60

$3.42

29

.CAP

51351-48G10

$122.07

30

..O RING This part replaces 51117-48G00.

51117-48G01

$2.88

31

BOLT

51328-39G20

$13.27
