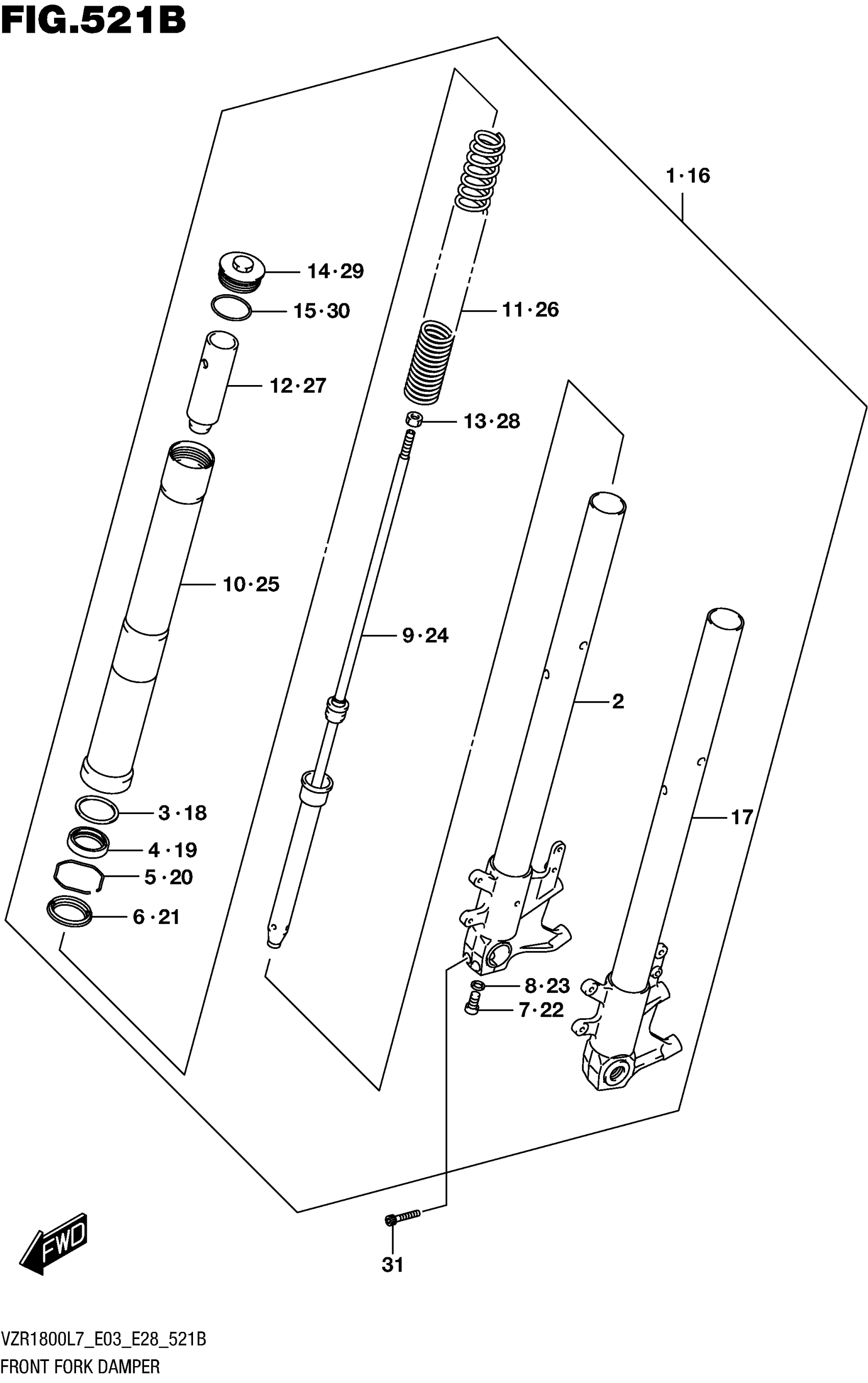

Suzuki VZR1800BZL7 (2017) FRONT FORK DAMPER (VZR1800BZL7 E03) Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,RH This part replaces 51103-48G30.

51103-48G31

$1,435.33

2

.TUBE, INNER RH

51110-48G30

$868.82

3

.WASHER

51158-27C00

$6.19

4

.OIL SEAL

51153-48G00

$25.17

5

.RING, STOPPER

51156-27C00

$5.98

6

.SEAL, DUST

51173-42F00

$26.58

7

.BOLT

51147-05H00

$5.40

8

.GASKET

51148-41310

$2.26

9

.CYLINDER

51146-48G20

Unavailable

10

.TUBE, OUTER

51130-48G30

Unavailable

11

.SPRING, FRONT

51171-48G20

$108.50

12

.SPACER, SPRING

51176-21H00

$27.40

13

.NUT, ROD

51352-13A60

$3.03

14

.CAP

51351-48G30

Unavailable

15

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

16

DAMPER ASSY,FR FORK,L This part replaces 51104-48G30.

51104-48G31

$1,550.15

17

.TUBE, INNER LH

51120-48G30

$868.82

18

.WASHER

51158-27C00

$6.19

19

.OIL SEAL

51153-48G00

$25.17

20

.RING, STOPPER

51156-27C00

$5.98

21

.SEAL, DUST

51173-42F00

$26.58

22

.BOLT

51147-05H00

$5.40

23

.GASKET

51148-41310

$2.26

24

.CYLINDER

51146-48G20

Unavailable

25

.TUBE, OUTER

51130-48G30

Unavailable

26

.SPRING, FRONT

51171-48G20

$108.50

27

.SPACER, SPRING

51176-21H00

$27.40

28

.NUT, ROD

51352-13A60

$3.03

29

.CAP

51351-48G30

Unavailable

30

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

31

BOLT

51328-39G20

$11.77
