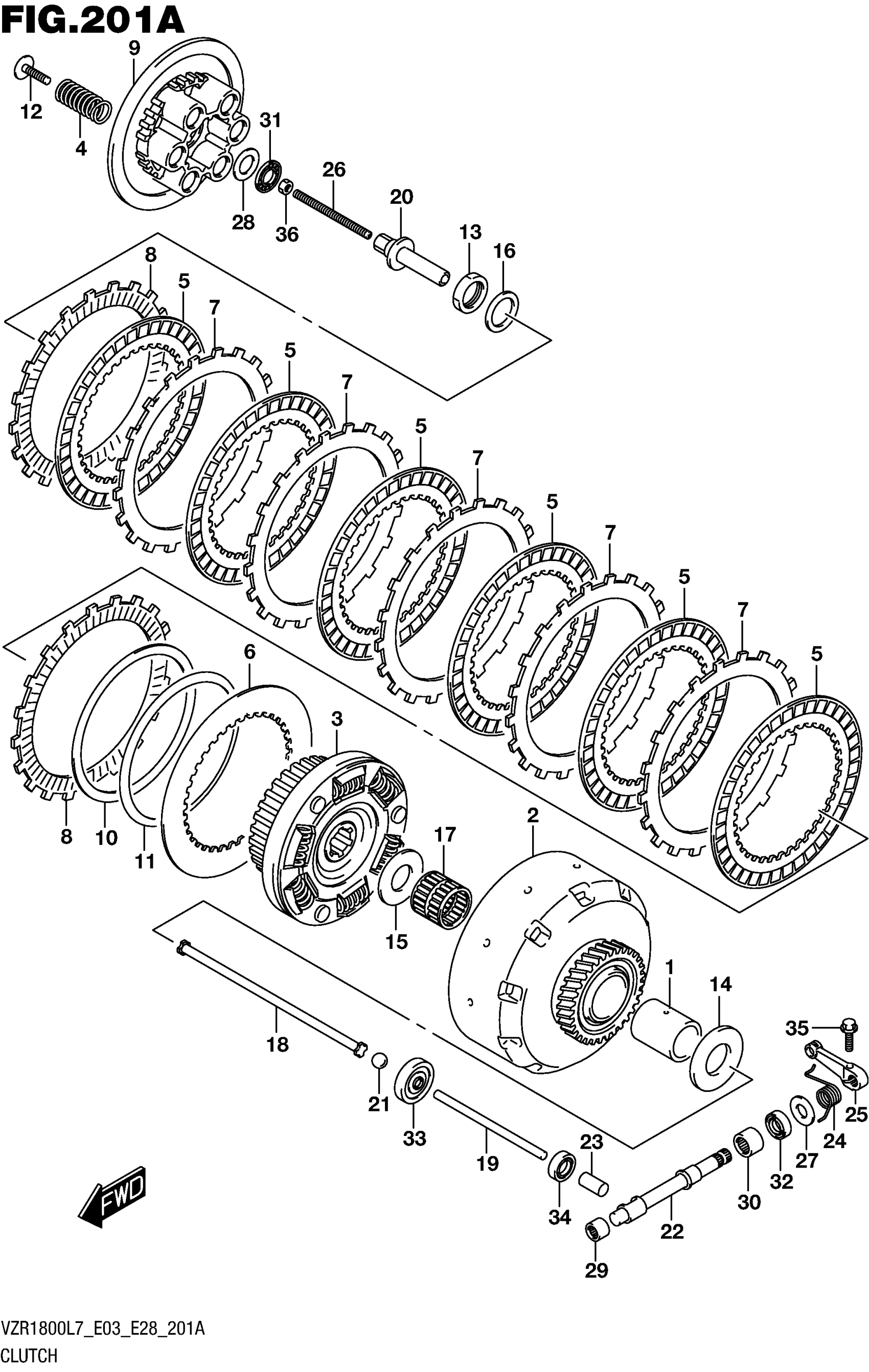

Suzuki VZR1800BZL7 (2017) CLUTCH (VZR1800L7 E28) Diagram

#

Description
Price

1

SPACER, PRIMARY DRIVE GEAR

21151-48G00

$51.63

2

GEAR ASSY, PRIMARY DRIVE

21100-48G01

$383.37

2

(NT:33)

21100-48G01

$383.37

3

HUB, CLUTCH SLEEVE

21410-48G10

$485.47

4

SPRING, CLUTCH

21413-35F10

$6.51

5

PLATE, CLUTCH DRIVE NO.1

21441-22H00

$45.72

5

(T:3.0)

21441-22H00

$45.72

6-1

PLATE, CLUTCH DRIVE NO.2

21441-48G40

$17.28

6-1

(T:2.0)

21441-48G40

$17.28

6-2

PLATE, CLUTCH DRIVE NO.3

21441-48G50

$17.28

6-2

(T:2.3)

21441-48G50

$17.28

6-3

PLATE, CLUTCH DRIVE NO.4

21441-48G60

$17.28

6-3

(T:1.6)

21441-48G60

$17.28

7

PLATE, CLUTCH DRIVEN NO.1

21451-22H00

$19.23

7

(T:2.3)

21451-22H00

$19.23

8

PLATE, CLUTCH DRIVEN NO.2

21451-48G10

$33.68

8

(T:3.4)

21451-48G10

$33.68

9

DISC, CLUTCH PRESSURE

21462-48G00

$58.97

10

SEAT, WAVE WASHER

21471-48G00

$13.01

11

WASHER, CLUTCH PLATE

21472-48G10

$23.81

12

BOLT, CLUTCH SPRING

21482-41G00

$2.80

13

NUT

09159-24010

$11.92

14

.WASHER (25X50X2.5)

09160-25056

$10.63

15

.WASHER (25X50X2.5)

09160-25056

$10.63

16

WASHER

09164-24008

$5.00

17

BEARING (32X37X38.3)

09263-32020

$50.87

18

ROD, CLUTCH

23110-24F00

$20.93

19

ROD, CLUTCH PUSH LH

23111-48G00

$22.30

20

PIECE, CLUTCH PUSH

23121-41G00

$55.32

21

BALL, CLUTCH PUSH

23122-02FR0

$100.95

22

CAMSHAFT, CLUTCH RELEASE

23122-48G00

$66.67

23

CAP, CLUTCH PUSH ROD

23123-41G00

$10.01

24

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$4.47

25

ARM, CLUTCH RELEASE

23271-48G00

$86.48

26

SCREW (6X73)

09134-06015

$6.21

27

WASHER (10.5X24X1)

09160-10020

$1.86

28

WASHER (15.5X28X1)

09160-15045

$3.52

29

BEARING (10X14X10)

09263-10014

$12.21

30

BEARING (12X18X12)

09263-12027

$6.59

31

BEARING (15X28X2)

09263-15003

$7.49

32

OIL SEAL (10X20X6)

09282-10012

$7.20

33

OIL SEAL (6X34X10.5)

09283-06010

$15.16

34

OIL SEAL (10X17X5)

09285-10004

$3.04

35

BOLT

01547-0620A

$2.01

36

NUT

08310-0006A

$1.83
