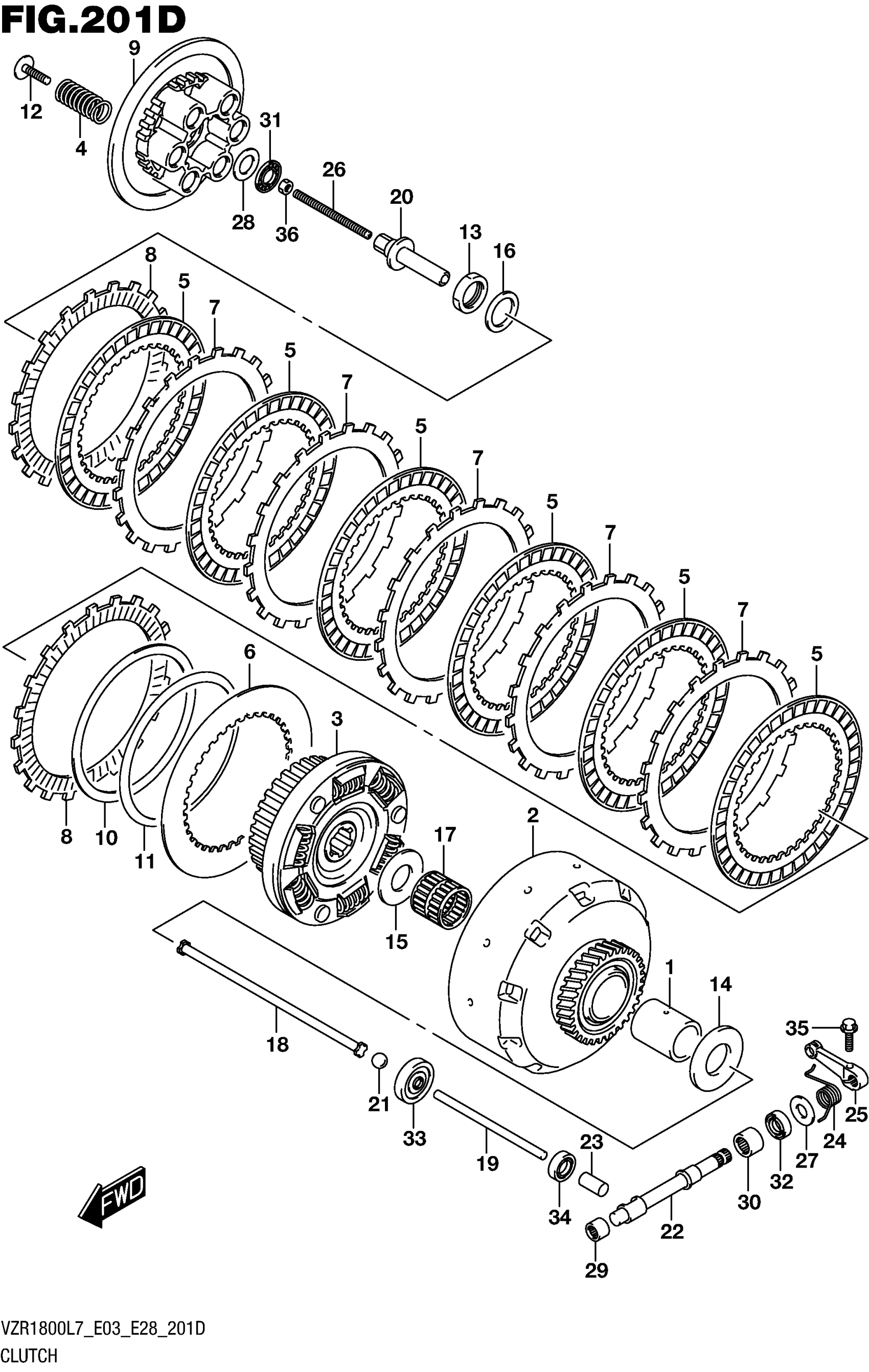

Suzuki VZR1800BZL7 (2017) CLUTCH (VZR1800BZL7 E33) Diagram

#

Description
Price

1

SPACER, PRIMARY DRIVE GEAR

21151-48G00

$45.75

2

GEAR ASSY, PRIMARY DRIVE

21100-48G01

$344.52

2

(NT:33)

21100-48G01

$344.52

3

HUB, CLUTCH SLEEVE

21410-48G10

$436.25

4

SPRING, CLUTCH

21413-35F10

$7.11

5

PLATE, CLUTCH DRIVE NO.1

21441-22H00

$48.57

5

(T:3.0)

21441-22H00

$48.57

6-1

PLATE, CLUTCH DRIVE NO.2

21441-48G40

$18.88

6-1

(T:2.0)

21441-48G40

$18.88

6-2

PLATE, CLUTCH DRIVE NO.3

21441-48G50

$18.88

6-2

(T:2.3)

21441-48G50

$18.88

6-3

PLATE, CLUTCH DRIVE NO.4

21441-48G60

$18.88

6-3

(T:1.6)

21441-48G60

$18.88

7

PLATE, CLUTCH DRIVEN NO.1

21451-22H00

$20.43

7

(T:2.3)

21451-22H00

$20.43

8

PLATE, CLUTCH DRIVEN NO.2

21451-48G10

$36.79

8

(T:3.4)

21451-48G10

$36.79

9

DISC, CLUTCH PRESSURE

21462-48G00

$64.42

10

SEAT, WAVE WASHER

21471-48G00

$14.20

11

WASHER, CLUTCH PLATE

21472-48G10

$26.01

12

BOLT, CLUTCH SPRING

21482-41G00

$2.94

13

NUT

09159-24010

$13.22

14

.WASHER (25X50X2.5)

09160-25056

$11.61

15

.WASHER (25X50X2.5)

09160-25056

$11.61

16

WASHER

09164-24008

$4.60

17

BEARING (32X37X38.3)

09263-32020

$46.80

18

ROD, CLUTCH

23110-24F00

$22.23

19

ROD, CLUTCH PUSH LH

23111-48G00

$19.77

20

PIECE, CLUTCH PUSH

23121-41G00

$49.02

21

BALL, CLUTCH PUSH

23122-02FR0

$89.43

22

CAMSHAFT, CLUTCH RELEASE

23122-48G00

$59.07

23

CAP, CLUTCH PUSH ROD

23123-41G00

$10.93

24

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$3.95

25

ARM, CLUTCH RELEASE

23271-48G00

$76.63

26

SCREW (6X73)

09134-06015

$6.88

27

WASHER (10.5X24X1)

09160-10020

$2.05

28

WASHER (15.5X28X1)

09160-15045

$3.89

29

BEARING (10X14X10)

09263-10014

$13.52

30

BEARING (12X18X12)

09263-12027

$7.31

31

BEARING (15X28X2)

09263-15003

$8.29

32

OIL SEAL (10X20X6)

09282-10012

$7.98

33

OIL SEAL (6X34X10.5)

09283-06010

$16.80

34

OIL SEAL (10X17X5)

09285-10004

$3.37

35

BOLT

01547-0620A

$2.03

36

NUT

08310-0006A

$1.84
